- High thermal performance
- Performance is displayed in kcal/h for supply temperatures of 90°C and return temperatures of 70°C
- The price of the body includes plugs, air vent, brackets
- Test pressure: 13 bar
- Operating pressure: 10 bar
- Color RAL 9010
- Italian design
Description
Specifications

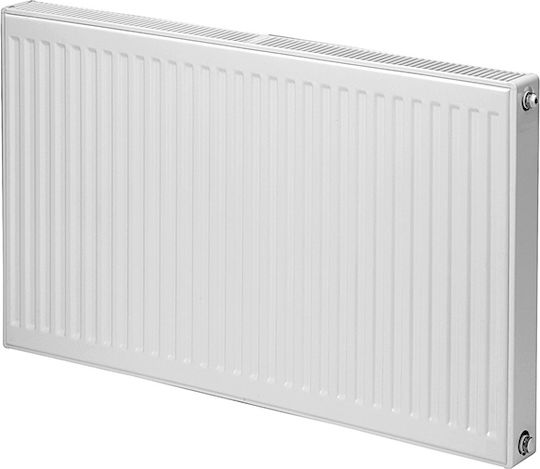

The steel radiators are designed with elegance and manufactured according to DIN EN 442. They feature high-quality electrostatic, polyester powder coating at 200°C, in white color RAL 9010, after a gradual phosphating and degreasing process.
Benefits
- High thermal performance
- Performance is displayed in kcal/h for supply temperatures of 90°C and return temperatures of 70°C
- The price of the body includes plugs, air vent, brackets
- Test pressure: 13 bar
- Operating pressure: 10 bar
- Color RAL 9010
- Italian design
External loop panel
In panel radiators, the switch enters with one side of the body and has an external tube that connects the top to the bottom of the radiator.
Type of radiators

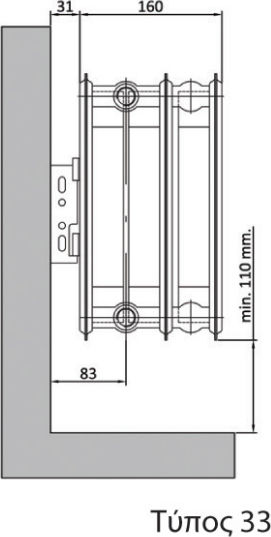

The type of columns is indicated by the number 33 (three-column), which means it has 3 water-bearing columns and 3 welded manifolds to increase the heated surface area.
The total thickness of the body is 16 cm.
How to choose the right radiator size?
It is very important to make the right choice of the radiator according to the dimensions of your space. The sizing of radiators should be done by an engineer after studying the space and calculating the heat losses. The wrong choice of radiator can lead to insufficient heating or excessive heating of the space, resulting in energy waste.
How is the calculation of radiator calories per square meter done?
A practical and simple way to calculate the required calories on your own is to multiply the height, width, and length of your room, in meters. Then, multiply the result by the number 50, which represents an approximate estimate of possible losses.
However, this calculation method is indicative and does not replace the study that an engineer will conduct, which will be completely accurate.
- Type
- Panel
- Heating Efficiency (kcal/h)
- 3066 kcal/h
- Installation Type
- External Loop
- Type of Columns
- 33
- Colour
- White
- Height
- 600 mm
- Length
- 1100 mm
Important information
Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
