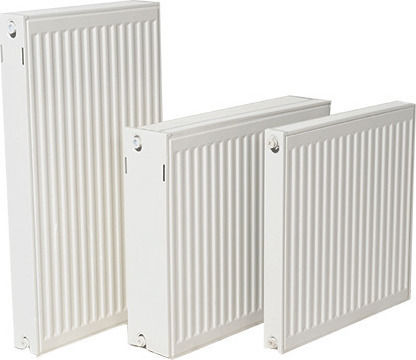

Comrad External Loop Panel Radiator Body Double-column 22/900/500 1564kcal/h

Key features:

  • External loop panel
  • Double
  • Thermal Performance: 1564 kcal/h
  • Thickness: 10 cm
  • Dimensions: H90 x W50 cm
See full description

Description

Description

The Comrad radiators are designed with elegance and for maximum efficiency while being produced using machines with the most advanced technology.

They are delivered complete with side covers and grilles, which are installed by the factory. They are painted in white color (RAL 9010) and each body undergoes thorough cleaning and degreasing, priming, and then powder coating.

Benefits

  • Steel thickness: 1.25mm
  • Control pressure 13 bar
  • Operating pressure 10 bar
  • Color RAL 9010 white, baked at 190°C
  • Heating performance is based on room temperature of 20°C on the body according to DIN 4704

External loop panel

In panel radiators, the switch is inserted on one side of the body and has an external tube that connects the top to the bottom of the radiator.

Type of radiators

The type of columns is represented by the number 22 (double column), which means it has 2 water-bearing columns and 2 welded manifolds to increase the heated surface.

The total thickness of the body is 10 cm.

How to choose the right radiator size?

It is very important to make the right choice of the radiator body according to the dimensions of your space. The dimensioning of the radiators should be done by an engineer after studying the space and calculating the losses. The wrong choice of the radiator can lead to insufficient heating or excessive heating of the space, resulting in energy waste.

How is the calculation of radiator calories per square meter done?

A practical and simple way to calculate the required calories yourself is to multiply the height, width, and length of your room, in meters. Then multiply the result by the number 50, which represents an approximate estimate of possible losses.

However, this calculation method is indicative and does not replace the study that an engineer will conduct, which will be perfectly accurate.

Manufacturer

See full description

Specifications

Specifications

Type
Panel
Heating Efficiency (kcal/h)
1564 kcal/h
Installation Type
External Loop
Type of Columns
22
Colour
White
Height
900 mm
Length
500 mm

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications
