Radiators

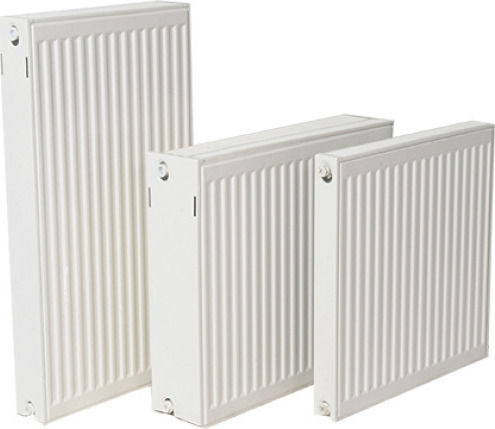

Comrad External Loop Panel Radiator Body Single-column 11/900/700 1205kcal/h

Key features:

  • External loop panel
  • Single column
  • Thermal Performance: 1205 kcal/h
  • Thickness: 6.3 cm
  • Dimensions: H90 x W70 cm
See full description

Description

Description

The Comrad radiators are designed with elegance and for maximum efficiency while being produced using machines with the most advanced technology.

They are delivered complete with side covers and grilles, which are installed by the factory. They are painted in white color (RAL 9010) and each body undergoes thorough cleaning and degreasing treatment, primed and then painted with powder coating.

Benefits

  • Steel thickness: 1.25mm
  • Control pressure 13 bar
  • Operating pressure 10 bar
  • Color RAL 9010 white, baked at 190°C
  • Heating performances are based on room temperature of 20°C on the body according to DIN 4704

External loop panel

In panel radiators, the switch enters from one side of the body and has an external tube that connects the top to the bottom of the radiator.

Type of radiators

The type of radiators is represented by the number 11 (single column), which means it has 1 water-bearing column and 1 welded fin to increase the heated surface.

The total thickness of the body is 6.3 cm.

How to choose the right radiator size?

It is very important to make the right choice of the radiator according to the dimensions of your space. The sizing of radiators should be done by an engineer after studying the space and calculating losses. The wrong choice of radiator can lead to insufficient heating or excessive heating of the space, resulting in energy waste.

How is the calculation of radiator calories per square meter done?

A practical and simple way to calculate the required calories yourself is to multiply the height, width, and length of your room, in meters. Then multiply the result by the number 50, which represents an approximate estimate of possible losses.

However, this calculation method is indicative and does not replace the study that an engineer will conduct, which will be completely accurate.

Manufacturer

See full description

Specifications

Specifications

Type
Panel
Heating Efficiency (kcal/h)
1205 kcal/h
Installation Type
External Loop
Type of Columns
11
Colour
White
Height
900 mm
Length
700 mm

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications
