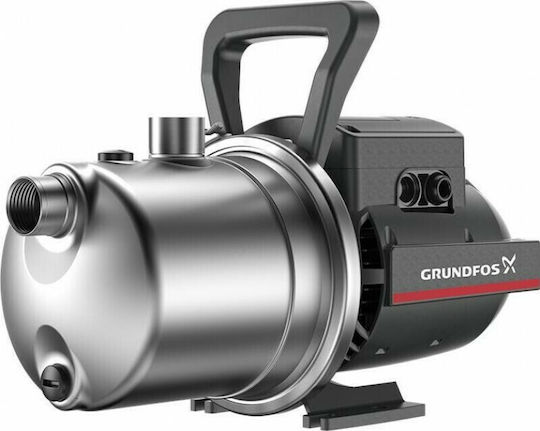

Grundfos JP 5-48 S-BBVP Electric Surface Water Pump with Automatic Suction 1.34hp Single-Phase
Surface Water Pumps

Grundfos JP 5-48 S-BBVP Electric Surface Water Pump with Automatic Suction 1.34hp Single-Phase Code: 99458769

Key features:

  • Maximum head: 48.3m
  • Maximum operating pressure: 6 bar
See full description

  • Power Supply

    Electric

    Ideal for continuous and demanding operation (e.g. for a flooded field and/or basement) 2. More economical consumption than gasoline-powered pumps 3. More environmentally friendly

  • Self-Priming

    The engine is automatically activated when the water in the tank falls below the lower limit. Similarly, it is deactivated when the tank is filled.
  • Voltage Single-Phase

  • Flow rate

    The amount of water that the pump can provide. For example, 6m³/h is equivalent to 100 liters/minute.

  • Manometric Height

    This is the distance from the suction point to the maximum height that the water reaches (For example, for a height of 10 meters of water, a pressure of 1 bar is required).

  • Pressure

    The unit of measurement for the pressure exerted by the pump on the water (For example, for a height of 10 meters of water, a pressure of 1 bar is required).
  • See all
330 00 €
Delivery by Thu, 25 Jun
44,00 €   shipping cost
Sent from Greece
From Lamas
Greece
2 pieces
See Water Pumps on the page of Lamas
Product report

Description

Description

Features & Functions

  • Single-stage centrifugal self-priming pump with stainless steel casing.
  • Designed for a wide range of home and garden applications.
  • Suitable for domestic groundwater extraction.
  • Pumps clean, low-viscosity, non-corrosive liquids without solid particles or fibers.

Specifications

  • Nominal flow rate: 5 m³/h.
  • Maximum head: 48.3 m.
  • Primary shaft seal: BBVP.
  • Ambient temperature range: 0 .. 40 °C.
  • Maximum operating pressure: 6 bar.
  • Maximum allowable inlet pressure: 1 bar.
  • Pump inlet: G1.
  • Pump outlet: G1.
  • Pumped liquid: Water.
  • Liquid temperature range: 0 .. 40 °C.

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Product Number
99458769

Main Specifications

Type
Single Stage

Type

Single Stage
They have a wing, making maintenance quite easy. They are suitable for low pressure operations where a high flow rate is maintained (e.g. irrigation).
Power Source
Electric

Power Source

Electric
Ideal for continuous and demanding operation (e.g. for a flooded field and/or basement) 2. More economical consumption than gasoline-powered pumps 3. More environmentally friendly
Placement
Horizontal
Automatic Suction
Yes

Automatic Suction

The engine is automatically activated when the water in the tank falls below the lower limit. Similarly, it is deactivated when the tank is filled.
Centrifugal
No

Centrifugal

Pumps with impellers that enhance water flow.
Firefighting
No
Power Type
Single-Phase
Set
No

Technical Specifications

Horsepower
1.34 hp
Power
1490 W
Flow Rate
5 m³/h

Flow Rate

The amount of water that the pump can provide. For example, 6m³/h is equivalent to 100 liters/minute.
Manometric Head
48.3 m

Manometric Head

This is the distance from the suction point to the maximum height that the water reaches (For example, for a height of 10 meters of water, a pressure of 1 bar is required).
Pressure
6 bar

Pressure

The unit of measurement for the pressure exerted by the pump on the water (For example, for a height of 10 meters of water, a pressure of 1 bar is required).

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
