It is important to understand what efficiency is and what the ratings actually mean. The efficiency rating indicates how much energy is retained or lost during the transfer from the wall to your components. It does not indicate the overall quality of the power supply. A power supply does not need an 80 PLUS Gold rating to be safe and reliable. And a power supply with an 80 PLUS Gold rating is not necessarily any of those things. The MWE White guarantees standard efficiency of 85%, while being both safe and reliable.
80 Plus Standard Certification
It is important to understand what efficiency is and what the ratings actually mean. The efficiency rating indicates how much energy is retained or lost during the transfer from the wall to your components. It does not indicate the overall quality of the power supply. A power supply does not need an 80 PLUS Gold rating to be safe and reliable. And a power supply with an 80 PLUS Gold rating is not necessarily any of those things. The MWE White guarantees standard efficiency of 85%, while being both safe and reliable.
DC to DC Circuit
Power is supplied at multiple voltage levels. The wall provides power at one voltage level, but your components need a specific voltage to operate correctly. The process of converting raw power from the wall to the multiple voltage levels your components need requires specialized components to complete this process quickly, efficiently, and safely. The MWE Bronze's DC-to-DC + LLC technology was meticulously created to achieve this goal. The Dual Forward circuit design is engineered to convert 12V power to 3V and 5V levels with minimal ripple noise, 80 PLUS Bronze efficiency, and reduced risk to your connected hardware.
Silent Operation

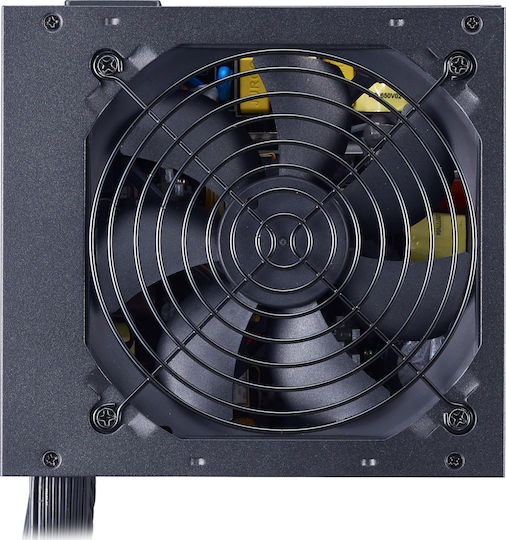

The continuous battle between cooling and noise is as old as the consumer computer industry itself. Keeping your components cool without having to hear them while you work remains one of the biggest challenges for all fan-based cooling technologies. The MWE Bronze addresses this issue with a 120 mm HDB fan. The fan's hydrodynamic bearing creates less friction, making it ideal for low RPM operations. This technology keeps the fan running smoothly and efficiently for a longer period, maintaining low noise levels and extending the power supply's lifespan.

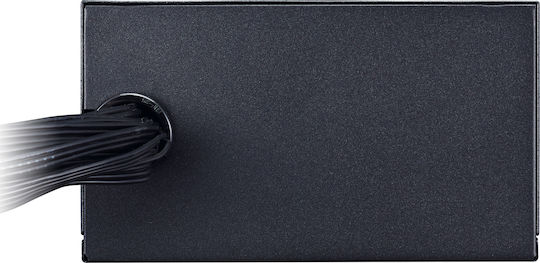

Flat, Black Cables
For many who have aesthetics in mind, cabling can be one of the most annoying parts of assembling a computer. Cables can be confusing, too short or too long, and almost never look good. The MWE Bronze uses flat and flexible black cables to help address these issues. These cables are more discreet and flexible, making them easier to install in your system while taking up less space. This is particularly useful for smaller cases and maintaining airflow.
The MWE Bronze V2 offers a simple, reliable way to power your system safely and efficiently at a low cost. The 80 PLUS Bronze efficiency rating, DC-to-DC + LLC circuit design, single +12V rail, active PFC, and temperature-sensitive HDB fan provide a power supply unit that stays true to its original purpose. This power supply will handle all your basic computing needs without any of the hassles or challenges of additional specialized features, software synchronization, or other bells and whistles. Just plug it into your system and get to work. For an excellent mid-level computing experience, you can't go wrong with the MWE Bronze V2.
Protection Technologies
The MWE provides full standard protection (OCP/OVP/UVP/SCP/OPP) as well as built-in overheating protection (OTP). These additional safety measures minimize the risk of damage to your system from power interruptions.
Connections:
- 1x ATX 20 + 4-pin motherboard power connector.
- 1x EPS/ATX12V 8 Pin (4+4) CPU power connector
- 2x PCIe 6+2 graphics card power connectors, to take advantage of modern GPUs in combination with your PC's capabilities
- 6x SATA power connectors for SSD or HDD hard drives
- 3x Molex 4-pin connectors for connecting additional peripherals
Dimensions
- Power
- 750 W
- Size
- ATX
- Modularity
- Full Wired
- Certification
- 80 Plus Standard
- Fan Dimension
- 120 mm
- Power Protection
- Over Power Protection (OPP), Over Temperature Protection (OTP), Over Voltage Protection (OVP), Short Circuit Protection (SCP), Under Voltage Protection (UVP)
- Color
- White
ATX Version
- ATX 3.1
- -
