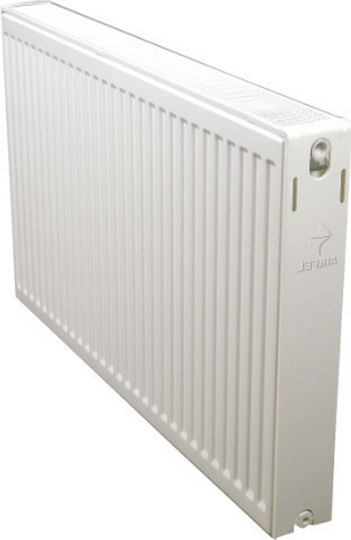

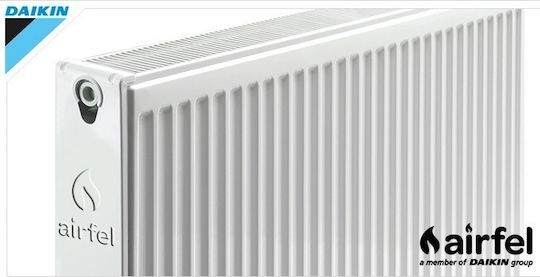

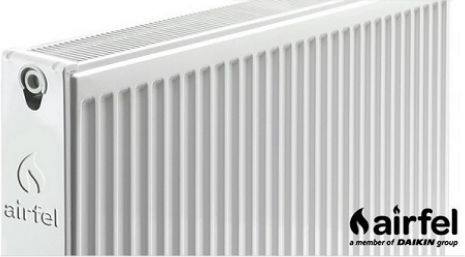

The Airfel panel radiator with an external loop has a double-column construction and a heat output of 3148 kcal/h. It is white (RAL 9010) and the paint is baked at 190 °C.
- Type: Panel
- Column type: 22
- Installation type: External loop
- Heat output: 3148 kcal/h
- Height: 900 mm
- Length: 1000 mm
- Colour: White RAL 9010
- Steel thickness: 1.15 mm
- Test pressure: 13 bar
- Operating pressure: 10 bar
- Certifications: DIN EN 442-1:2003-12, DIN EN 442-2:2003-12, DIN EN 442-3:2003-12
- Heat output measurement conditions: Flow temperature 90 °C, return temperature 70 °C and room temperature 20 °C
- Type
- Panel
- Heating Efficiency (kcal/h)
- 3148 kcal/h
- Installation Type
- External Loop
- Type of Columns
- 22
- Colour
- White
- Height
- 900 mm
- Length
- 1000 mm
