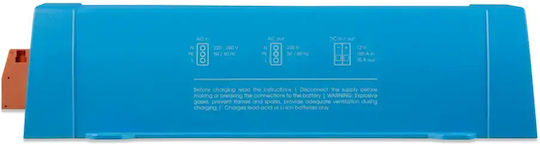

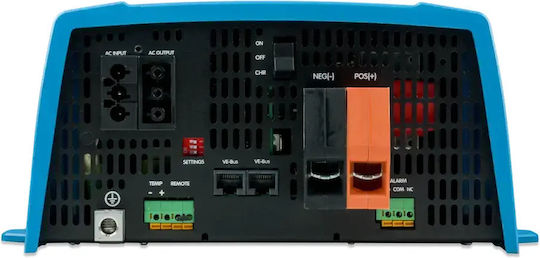

Victron MultiPlus 24/1200/25-16 inverter - DC to AC pure sine wave inverter with 25A DC charger. The new type MultiPlus aims to replace the previous MultiPlus Compact series. It is a powerful pure sine wave inverter and an advanced battery charger with adaptive charging technology as well as a high-speed AC transfer switch, all in a compact metal frame.

• Parallel capability up to 6 MultiPlus units (3 for three-phase).
• 4-stage adaptive charging.
• UPSVE.Bus function (ability to connect GX devices as well as PC with a special Victron adapter).
• Monitoring and configuring functions via smartphone (with the special VE.Bus Smart dongle adapter).
• Remote monitoring and control (using GX devices).
• Automatic load-dependent control to limit input current or to boost the generator when needed.
• Low battery voltage cut-off and restart levels (operation stops in case of low battery voltage to protect the battery and automatically restarts when the voltage returns to normal levels).
• Output voltage 230V ±.
• Frequency 50 Hz.
• Double peak start-up.
• Low self-consumption.
• Electric voltage: 24.00 [V].
• Length: 250 [mm].
• Width: 100 [mm].
• Height: 406 [mm].
• Weight: 8.200 [kg].
