Olympia Electronics Wireless Alarm System with 2 Motion Detectors , 2 Door Sensors , Siren , 2 Remotes , Hub and Keyboard
Home Alarm Systems

Olympia Electronics Wireless Alarm System with 2 Motion Detectors , 2 Door Sensors , Siren , 2 Remotes , Hub and Keyboard Code: BS-468/A/WL/KIT

Key features:

  • Wireless Keyboard
  • Wireless Solar Siren
  • Infrared Motion Detector
  • 2 Magnetic Contacts
See full description

  • Motion Sensor

    Motion detectors have the ability to detect small changes in the environment that have been caused, for example, by the movement of the human body.
  • Wireless
  • See all
Review the product
Product report

Description

Description

The 4-zone wired alarm system KIT consists of the Panel with an integrated keyboard, a standalone siren with a battery, an infrared motion detector, and magnetic contacts for doors and windows.

It can be configured from your mobile through the Olympia app for Android and iOS devices.

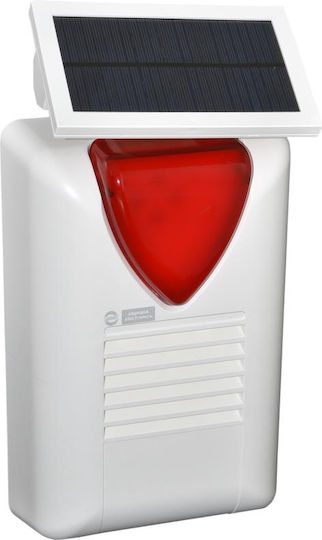

Technical Specifications of Siren

  • It features a red beacon that flashes when the siren is activated and a piezoelectric membrane, which produces sound with an intensity of 105dB at 1 meter
  • Inside the device, there is a mechanism (tamper) that activates the siren if someone tries to remove its cover or take it off the wall
  • Power supply: 12V / 1.4W solar panel
  • Sound level: 105 dB / 1m
  • Battery type: 6V/1.3Ah Pb (lead)
  • Use: For outdoor areas
  • Communication range: Approximately 300m (in open space)
  • Enclosure protection rating: IP20
  • Operating temperature range: -10 to 60 °C
  • Relative humidity: Up to 90%
  • External dimensions: 188x120x360 mm
  • Typical weight: 1605g

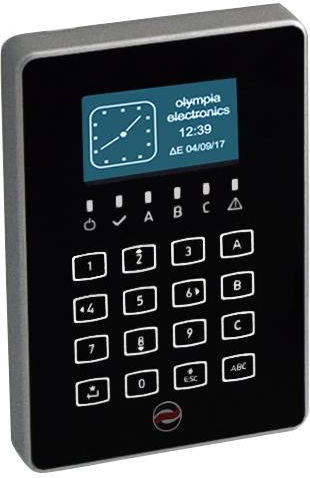

Technical Specifications for Wireless Keypad

  • Operating voltage: 2x Lithium battery type CR-123A (6V nominal voltage)
  • Typical battery life: 1 year for 1 minute active per day
  • Communication frequency: 868 MHz
  • Communication range: Approximately 200m (in open space)
  • Enclosure protection rating: IP20
  • Operating temperature range: -10 to +40 °C
  • Construction materials: ABS/PC
  • Device dimensions (LxWxH): 150.6 x 100.6 x 30.6 mm
  • Typical weight: 205 g

Technical Specifications for Wireless Alarm Panel

  • Wireless alarm panel with BS-479
  • The BS-468/A is an 8-zone anti-theft alarm panel
  • With the use of the special BS469 card, it can be expanded up to 16 zones
  • With the use of the BS-479 card, it gains 32 additional wireless zones
  • For operation, it requires at least one BS-466/A keyboard
  • Up to 8 keyboards can be connected to the panel
  • Each keyboard has an additional zone for connecting magnetic contacts (zones 17–24)
  • On the main board of the panel, there is a slot for installing a YET-205B-630 remote control receiver card
  • There is also a slot for an automatic dialer card

Technical Specifications for Wireless Magnetic Contact

  • The BS-471 device is a component of the BS-468/A alarm system
  • It is designed to detect the opening of a door or window
  • It can also accept input from an external magnetic contact (Normal Close)
  • The detector is powered by a battery
  • It consists of two parts, the device with the electronics and the magnet

Technical Specifications for Motion Detector

  • The wireless infrared motion detector BS-470 features a special high-performance, multi-focus lens with an extended coverage area. It contains improved processor-controlled circuits and metal shielding of the input stages, significantly reducing the device's false activation to the maximum possible extent.
  • The device's casing has the appropriate infrastructure to be mounted either on a flat surface or at surface corners, when necessary due to the room's layout.
  • Option for normal and high sensitivity to avoid activation by small pets
  • Maximum coverage, on the vertical axis, 12m.

The set includes:

  • Hybrid alarm panel BS-468/A/WL
  • Wireless remote control receiver 433Mhz
  • Wireless touch keyboard with illuminated graphic screen BS-466/A
  • Alarm siren BS-475
  • Wireless infrared motion detector
  • Wired magnetic contacts for doors and windows (2 sets)
  • 2 Remote controls for arming/disarming

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Product Number
BS-468/A/WL/KIT

Type

Wireless
Yes
Motion Sensor
Yes

Motion Sensor

Motion detectors have the ability to detect small changes in the environment that have been caused, for example, by the movement of the human body.
Remote Control
Yes
Siren
Yes
Door/Window Sensor
Yes

Door/Window Sensor

Consists of two parts that function as traps, one of which is placed on the moving part of the door or window, and the other on the fixed frame.
Camera
No
Autonomic
No

Autonomic

They operate on batteries without the use of a central unit and usually have a built-in siren.
Keyboard
Yes
Hub
Yes

Hub

Alarm center for connecting non-autonomous devices, such as sensors and detectors.

Quantity

Motion Sensor
2
Door/Window Sensor
2
Remote Control
2
Siren
1

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Description & Specifications

The 4-zone wired alarm system KIT consists of the Panel with an integrated keyboard, a standalone siren with a battery, an infrared motion detector, and magnetic contacts for doors and windows.

It can be configured from your mobile through the Olympia app for Android and iOS devices.

Technical Specifications of Siren

  • It features a red beacon that flashes when the siren is activated and a piezoelectric membrane, which produces sound with an intensity of 105dB at 1 meter
  • Inside the device, there is a mechanism (tamper) that activates the siren if someone tries to remove its cover or take it off the wall
  • Power supply: 12V / 1.4W solar panel
  • Sound level: 105 dB / 1m
  • Battery type: 6V/1.3Ah Pb (lead)
  • Use: For outdoor areas
  • Communication range: Approximately 300m (in open space)
  • Enclosure protection rating: IP20
  • Operating temperature range: -10 to 60 °C
  • Relative humidity: Up to 90%
  • External dimensions: 188x120x360 mm
  • Typical weight: 1605g

Technical Specifications for Wireless Keypad

  • Operating voltage: 2x Lithium battery type CR-123A (6V nominal voltage)
  • Typical battery life: 1 year for 1 minute active per day
  • Communication frequency: 868 MHz
  • Communication range: Approximately 200m (in open space)
  • Enclosure protection rating: IP20
  • Operating temperature range: -10 to +40 °C
  • Construction materials: ABS/PC
  • Device dimensions (LxWxH): 150.6 x 100.6 x 30.6 mm
  • Typical weight: 205 g

Technical Specifications for Wireless Alarm Panel

  • Wireless alarm panel with BS-479
  • The BS-468/A is an 8-zone anti-theft alarm panel
  • With the use of the special BS469 card, it can be expanded up to 16 zones
  • With the use of the BS-479 card, it gains 32 additional wireless zones
  • For operation, it requires at least one BS-466/A keyboard
  • Up to 8 keyboards can be connected to the panel
  • Each keyboard has an additional zone for connecting magnetic contacts (zones 17–24)
  • On the main board of the panel, there is a slot for installing a YET-205B-630 remote control receiver card
  • There is also a slot for an automatic dialer card

Technical Specifications for Wireless Magnetic Contact

  • The BS-471 device is a component of the BS-468/A alarm system
  • It is designed to detect the opening of a door or window
  • It can also accept input from an external magnetic contact (Normal Close)
  • The detector is powered by a battery
  • It consists of two parts, the device with the electronics and the magnet

Technical Specifications for Motion Detector

  • The wireless infrared motion detector BS-470 features a special high-performance, multi-focus lens with an extended coverage area. It contains improved processor-controlled circuits and metal shielding of the input stages, significantly reducing the device's false activation to the maximum possible extent.
  • The device's casing has the appropriate infrastructure to be mounted either on a flat surface or at surface corners, when necessary due to the room's layout.
  • Option for normal and high sensitivity to avoid activation by small pets
  • Maximum coverage, on the vertical axis, 12m.

The set includes:

  • Hybrid alarm panel BS-468/A/WL
  • Wireless remote control receiver 433Mhz
  • Wireless touch keyboard with illuminated graphic screen BS-466/A
  • Alarm siren BS-475
  • Wireless infrared motion detector
  • Wired magnetic contacts for doors and windows (2 sets)
  • 2 Remote controls for arming/disarming

Manufacturer

Manufacturer Details

Warnings & Safety Information
Product Number
BS-468/A/WL/KIT

Type

Wireless
Yes
Motion Sensor
Yes

Motion Sensor

Motion detectors have the ability to detect small changes in the environment that have been caused, for example, by the movement of the human body.
Remote Control
Yes
Siren
Yes
Door/Window Sensor
Yes

Door/Window Sensor

Consists of two parts that function as traps, one of which is placed on the moving part of the door or window, and the other on the fixed frame.
Camera
No
Autonomic
No

Autonomic

They operate on batteries without the use of a central unit and usually have a built-in siren.
Keyboard
Yes
Hub
Yes

Hub

Alarm center for connecting non-autonomous devices, such as sensors and detectors.

Quantity

Motion Sensor
2
Door/Window Sensor
2
Remote Control
2
Siren
1

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
