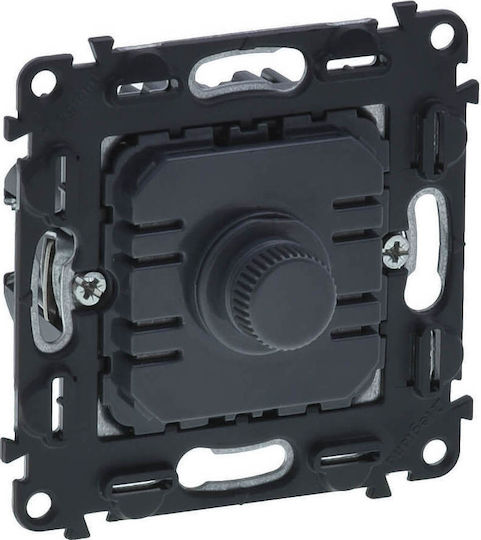

Legrand Valena In'Matic Recessed Mechanism for Dimmer Switch Classic Rotary 300W in Black Color
Dimmer Switches

Legrand Valena In'Matic Recessed Mechanism for Dimmer Switch Classic Rotary 300W in Black Color Code: 752060

Rotary dimmer mechanism Valena Allure without neutral terminal.

  • Nominal voltage: 240V AC 50/60HZ
  • Standby power consumption: 0.2W
  • Power consumption for LED lamps and compact fluorescent lamps with...

Rotary dimmer mechanism Valena Allure without neutral terminal.

  • Nominal voltage: 240V AC 50/60HZ
  • Standby power consumption: 0.2W
  • Power consumption for LED lamps and compact fluorescent lamps with dimming function: 5-75W
  • Power consumption for halogen lamps with electronic or ferromagnetic transformer: 5-300VA
  • Power consumption for fluorescent lamps with...
See full description See full description

  • Placement

    Recessed

    The standard installation where the mechanism is placed inside a wall box.

  • Compatibility

    Classic

    Designed for traditional incandescent or halogen bulbs. Does not support the operation of most LED lamps.

  • Function

    Rotary

    Adjusting the intensity using the classic rotary switch (dial) for precise lighting control.
  • Type Mechanism
  • See all
Review the product
Product report

Description

Description

Rotary dimmer mechanism Valena Allure without neutral terminal.

  • Nominal voltage: 240V AC 50/60HZ
  • Standby power consumption: 0.2W
  • Power consumption for LED lamps and compact fluorescent lamps with dimming function: 5-75W
  • Power consumption for halogen lamps with electronic or ferromagnetic transformer: 5-300VA
  • Power consumption for fluorescent lamps with ballast: 5-300VA
  • Power consumption for incandescent and halogen lamps: 5-300W
  • Protection level: IP40, IK02
  • Material: plastic
  • Dimensions: 75x75x51.5mm
  • Operating temperature range: from 0°C to 35°C
  • Clamp type: screw
  • Installation type: recessed
  • Assembly method: screws, claws
  • Comments: when turned on, it gradually lights up (2 seconds) to the level set before the last shutdown.
  • Mechanism provided with a metal mounting bracket and equipped with a frame and plate from the Valena Allure series.

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Product Number
752060

Dimensions

Placement
Recessed

Placement

Recessed
The standard installation where the mechanism is placed inside a wall box.
Compatibility
Classic

Compatibility

Classic

Designed for traditional incandescent or halogen bulbs. Does not support the operation of most LED lamps.
Type
Mechanism
Mode
Rotary

Mode

Rotary
Adjusting the intensity using the classic rotary switch (dial) for precise lighting control.
Power
300 W

Power

Indicates the total load (Watt) that the dimmer can safely handle.

Attention: For LED bulbs, the maximum power is usually much lower than the nominal value (e.g. a 300W dimmer may only support up to 60W-100W for LEDs). Never exceed the limit to avoid overheating the mechanism.
Colour
Black
Power Supply
230V

Power Supply

230V

The device connects directly to the wall power supply. It is the standard voltage for LED bulbs and home switches. No additional transformer is needed for operation.

Additional Features

Illuminated
No

Illuminated

With a light indicator for easy location in the dark
Aller Retour
No

Aller Retour

It allows you to control the same light fixture from two different points in the space. Ideal for corridors, staircases, or large rooms where you want to turn the light on from one side and turn it off (or adjust it) from the other.

Professional Control

DMX512
No

DMX512

Protocol for professional control of LED strips. It is the best choice if you want many LED strips in your home to change color or brightness simultaneously and without any delay.

Note: Not for simple light bulbs. It requires a special cable for transmitting the command and a "decoder" (DMX Decoder) before each strip.
DALI
No

DALI

It allows you to group and control each lighting fixture individually from a central computer or panel. It is considered the most reliable system for professional spaces.

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Description & Specifications

Rotary dimmer mechanism Valena Allure without neutral terminal.

  • Nominal voltage: 240V AC 50/60HZ
  • Standby power consumption: 0.2W
  • Power consumption for LED lamps and compact fluorescent lamps with dimming function: 5-75W
  • Power consumption for halogen lamps with electronic or ferromagnetic transformer: 5-300VA
  • Power consumption for fluorescent lamps with ballast: 5-300VA
  • Power consumption for incandescent and halogen lamps: 5-300W
  • Protection level: IP40, IK02
  • Material: plastic
  • Dimensions: 75x75x51.5mm
  • Operating temperature range: from 0°C to 35°C
  • Clamp type: screw
  • Installation type: recessed
  • Assembly method: screws, claws
  • Comments: when turned on, it gradually lights up (2 seconds) to the level set before the last shutdown.
  • Mechanism provided with a metal mounting bracket and equipped with a frame and plate from the Valena Allure series.

Manufacturer

Manufacturer Details

Warnings & Safety Information
Product Number
752060

Dimensions

Placement
Recessed

Placement

Recessed
The standard installation where the mechanism is placed inside a wall box.
Compatibility
Classic

Compatibility

Classic

Designed for traditional incandescent or halogen bulbs. Does not support the operation of most LED lamps.
Type
Mechanism
Mode
Rotary

Mode

Rotary
Adjusting the intensity using the classic rotary switch (dial) for precise lighting control.
Power
300 W

Power

Indicates the total load (Watt) that the dimmer can safely handle.

Attention: For LED bulbs, the maximum power is usually much lower than the nominal value (e.g. a 300W dimmer may only support up to 60W-100W for LEDs). Never exceed the limit to avoid overheating the mechanism.
Colour
Black
Power Supply
230V

Power Supply

230V

The device connects directly to the wall power supply. It is the standard voltage for LED bulbs and home switches. No additional transformer is needed for operation.

Additional Features

Illuminated
No

Illuminated

With a light indicator for easy location in the dark
Aller Retour
No

Aller Retour

It allows you to control the same light fixture from two different points in the space. Ideal for corridors, staircases, or large rooms where you want to turn the light on from one side and turn it off (or adjust it) from the other.

Professional Control

DMX512
No

DMX512

Protocol for professional control of LED strips. It is the best choice if you want many LED strips in your home to change color or brightness simultaneously and without any delay.

Note: Not for simple light bulbs. It requires a special cable for transmitting the command and a "decoder" (DMX Decoder) before each strip.
DALI
No

DALI

It allows you to group and control each lighting fixture individually from a central computer or panel. It is considered the most reliable system for professional spaces.

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
