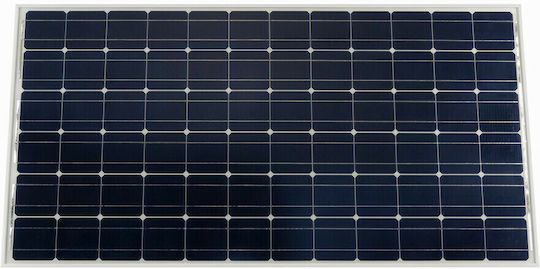

The Victron Energy BlueSolar 55W-12V monocrystalline solar panel generates electricity from sunlight. It performs well in low-light conditions, while its high sensitivity covers the entire solar spectrum. Its low voltage-temperature coefficient enhances performance at high temperatures.
The high-efficiency bypass diode limits power loss due to shading. The panel features a sealed, airtight junction box, high-transmission reinforced glass, and an anodized aluminum frame for rooftop installation using standard mounting systems. Its construction includes an EVA encapsulation system with a triple-layer backing sheet.
- Type: Monocrystalline
- Maximum power: 55 W
- Maximum voltage: 12 V
- Length: 668 mm
- Width: 545 mm
- Thickness: 25 mm
- Voltage-temperature coefficient: Low
- Bypass diode: High-efficiency
- Junction box: Sealed and airtight
- Frame material: Anodized aluminum
- Glass: Reinforced, high-transmission
- Encapsulation system: EVA with a triple-layer backing sheet
Technical Specifications
- Type
- Monocrystalline
- Maximum Power
- 55 W
- Flexible
- No
- Maximum Voltage
- 12 V
Dimensions
- Length
- 668 mm
- Width
- 545 mm
- Thickness
- 25 mm
