- The Any-GridTM PSW-H can operate even without batteries. The required power can be supplied directly to the loads from the grid and solar energy simultaneously without the mediation of batteries.
- High level of connectivity: BLE, USB-OTG (on-the-go), RS-485, RS-232
- Special relay for starting the generator

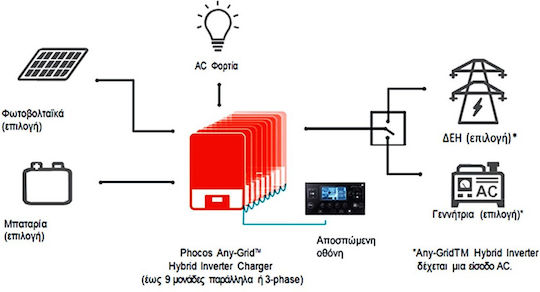

- Up to 9 inverters can be connected in parallel or three-phase for synchronized AC power up to 45 Kw.
- Removable filter to prevent dust accumulation in the inverter
- Built-in 230V AC charger
- Built-in MPPT photovoltaic charge controller
- Compatible with LiFePO4 (lithium iron phosphate) batteries
- Detachable display/communication unit with 6 LEDs and an intuitive LCD screen
- Data logger with data storage up to 60 days
- Quick parameter saving/loading via USB
- Built-in buzzer for error indications
- Galvanic isolation of the battery allowing positive or negative grounding

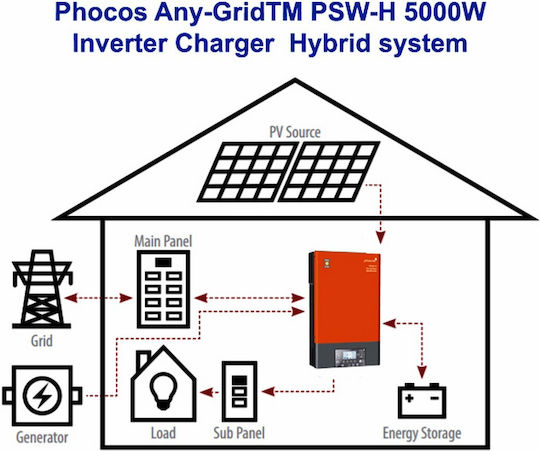

The PSW-H converts direct current (DC) to alternating current (AC), with multiple advantages. It has a built-in MPPT charge controller for charging the battery through photovoltaic panels, while also featuring a charger from an alternating current source. From the public grid or a generator. It provides exceptionally flexible energy access solutions for a wide range of applications.
A very important feature of this device is the ability to power loads from alternative energy sources (AC supply or battery) separately or jointly, with the option to prioritize between them. For example, the battery charged by the solar panels can be set as the primary source, and when additional energy is required by a load, the grid supply can be used as a supplement. Thus, depending on the need, optimal use of system resources is achieved for the best savings. Another use of the PSW-H is that it can also function as an uninterruptible power supply (UPS). As soon as it detects any interruption in the grid supply, the PSW-H instantly (10 ms) switches to "Off-Grid" mode to safely power the loads directly from the connected batteries.
- The Any-GridTM PSW-H can operate even without batteries. The required power can be supplied directly to the loads from the grid and solar energy simultaneously without the mediation of batteries.
- High level of connectivity: BLE, USB-OTG (on-the-go), RS-485, RS-232
- Special relay for starting the generator
- Up to 9 inverters can be connected in parallel or three-phase for synchronized AC power up to 45 Kw.
- Removable filter to prevent dust accumulation in the inverter
- Built-in 230V AC charger
- Built-in MPPT photovoltaic charge controller
- Compatible with LiFePO4 (lithium iron phosphate) batteries
- Detachable display/communication unit with 6 LEDs and an intuitive LCD screen
- Data logger with data storage up to 60 days
- Quick parameter saving/loading via USB
- Built-in buzzer for error indications
- Galvanic isolation of the battery allowing positive or negative grounding
- Type
- Pure Sine Wave
- Rated power
- 5000 W
- Nominal Input Voltage
- 48 V
- Power supply
- Three-Phase
