Atlas Filtri Under Sink Water Filter System Dp , ½" Inlet/Outlet, 15006
Water Filtration Systems

Atlas Filtri Under Sink Water Filter System Dp , ½" Inlet/Outlet, 15006

Key features:

  • Under-sink device
  • Replacement filter height: 10''
  • Maximum operating pressure: 8 bar
  • Easy installation
See full description

User Manual

Product report

Description

Description

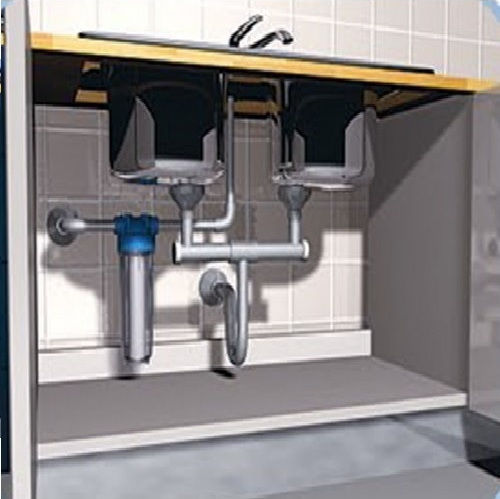

The Depural DP under-sink water filter device by Atlas is suitable for filtering drinking water for both domestic and professional use. The filter device is installed under the kitchen counter and takes up minimal space.

It is made from non-toxic materials, suitable for drinking water, which comply with international regulations (Directive 98/83/EC).

Features:

  • Device height: 10''
  • Replacement filter height: 10''
  • Maximum operating pressure: 8 bar (116 psi)
  • Maximum operating temperature: 45°C (113°F)
  • Minimum operating temperature: 4°C (39.2°F)
  • Thread in/out: cw 614 n brass inserts

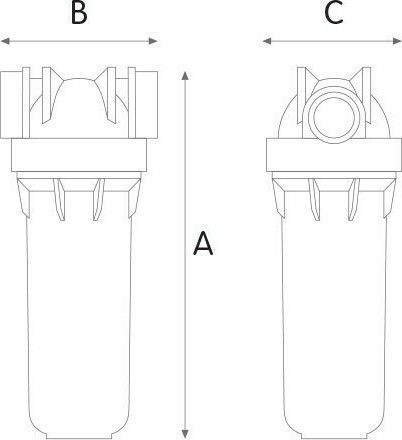

  • Dimensions mm (A x B x C): 325mm (Height) x 122mm (Length) x 107mm (Depth)
  • Total Depth (C) with the support base 133mm

Made from Non-Toxic Materials, Suitable for Drinking Water

  • Head: Reinforced polypropylene
  • Bottle: PET
  • Gasket: EPDM
  • Air release valve: Stainless steel, Gasket: EPDM
  • Inlet/outlet threads: Brass CW 617 N

The package contains:

  • DP filter device
  • Base with screws
  • Key
  • Two 1/2'' nipples with 1/4'' internal threading
  • Does not include replacement filter

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Product Guides

User Manual

Colour
White
Number of Filters
Single
Type
Under Sink

Type

Under Sink
They are connected to the sink's water supply. They don't take up space on the countertop.
Material
Plastic
Compatibility
10"
with Replacement Filter
No
with Faucet
No
Pipe Cross Section
½"

Pipe Cross Section

This concerns the size of the connection thread of the device with the supply. The pipe diameter (inlet-outlet) of the device must be the same as that of the water supply, in order for the installation to be done correctly.
Self-Cleaning
No
with Manometer
No

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Reviews (11)

Reviews

4.8
11
4.8
Review this product
  1. 9
  2. 2
  3. 3 stars
    0
  4. 2 stars
    0
  5. 1 star
    0
Review this product

Reviews by our members

  • ASTEROlD
    4
    1 out of 1 members found this review helpful
    ASTEROlD

    Verified purchase

    Easy installation, but I struggled to make it not leak.
    You put some grease inside the rubber bands, but it still leaks.
    I applied Teflon and tightened it very tightly to stop the leaking.
    However, the materials are of very good quality

    Translated from Greek ·
    Did you find this review helpful?
  • michail_spyridis
    5
    6 out of 6 members found this review helpful
    michail_spyridis

    Verified purchase

    The construction is very good and sturdy! I believe there is no point in getting something more expensive. The package does not include the spiral hoses. If you try to install it yourself like I did, you will need the corresponding wrenches or pliers to tighten the spirals, a drill to open 2 holes in the wall, 2 screws and 2 anchors strong enough to secure the construction well, and a screwdriver. Be careful not to hit any water or power pipes while making the holes.

    Translated from Greek ·
    Did you find this review helpful?
  • Σαμαρούλης Θωμάς
    4
    11 out of 13 members found this review helpful
    Σαμαρούλης Θωμάς

    I bought it 2 years ago and it works very well, but be careful when changing the filter so that you don't twist the valve inside and cause it to leak. Also, because it goes under countertops, it's not convenient for the working position (you have to bend down and it strains your back). Finally, make sure to install a valve before the filter so that you can close it and easily change the filter.

    Translated from Greek ·
    Did you find this review helpful?
  • 5
    MPALASKAS GEORGIOS

    Verified purchase

    Good quality. Time will tell.

    Translated from Greek ·
    Did you find this review helpful?
  • 5
    johnkse4

    Verified purchase

  • 5
    Lambros L.

    Verified purchase

  • 5
    bbiloukas

    Verified purchase

  • 5
    Arm_Ib

    Verified purchase

  • 5
    John_Sfak8163

    Verified purchase

  • 5
    nikske

    Verified purchase

  • 5
    Marilou_Leo

    Verified purchase

  • ASTEROlD
    4
    ASTEROlD

    Easy installation, but I struggled to make it not leak.
    You put some grease inside the rubber bands, but it still leaks.
    I applied Teflon and tightened it very tightly to stop the leaking.
    However, the materials are of very good quality

    Translated from Greek ·
    1
  • michail_spyridis
    5
    michail_spyridis

    The construction is very good and sturdy! I believe there is no point in getting something more expensive. The package does not include the spiral hoses. If you try to install it yourself like I did, you will need the corresponding wrenches or pliers to tighten the spirals, a drill to open 2 holes in the wall, 2 screws and 2 anchors strong enough to secure the construction well, and a screwdriver. Be careful not to hit any water or power pipes while making the holes.

    Translated from Greek ·
    6
  • Σαμαρούλης Θωμάς
    4
    Σαμαρούλης Θωμάς

    I bought it 2 years ago and it works very well, but be careful when changing the filter so that you don't twist the valve inside and cause it to leak. Also, because it goes under countertops, it's not convenient for the working position (you have to bend down and it strains your back). Finally, make sure to install a valve before the filter so that you can close it and easily change the filter.

    Translated from Greek ·
    11
  • 5
    MPALASKAS GEORGIOS

    Good quality. Time will tell.

    Translated from Greek ·
    0
  • 5
    johnkse4
