Atlas Filtri Medium Plus 3P AFO SX AS Water Filtration System Single Central Supply / Under Sink Micron 3/4'' 13002
Water Filtration Systems

Atlas Filtri Medium Plus 3P AFO SX AS Water Filtration System Single Central Supply / Under Sink Micron 3/4'' 13002

Key features:

  • Central supply device
  • Features vent valve
  • Maximum operating pressure: 8 bar
  • Max operating temperature: 45°C
See full description

User Manual

Review the product
Product report

Description

Description

Central Supply Device

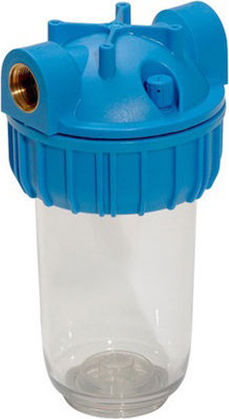

The Medium Plus 3P 5" AFO SX TS 3/4" central supply device consists of 3 pieces: Head, Fitting, Glass. It is suitable for filtering drinking water, as well as retaining suspended solids, sediment, and rust. The Medium Plus 3P central water filtration device from Atlas Filtri is combined with thread sediment filters and washable filters.

Compatible with:

  • Maximum operating pressure: 8 bar (116psi)
  • Maximum operating temperature: 45°C
  • Head/Fitting material: Reinforced polypropylene
  • Glass material: PET
  • Aeration valve: Polypropylene
  • Sealing flange & valve: EPDM
  • Input/output threads: Brass CW 617N
  • Transparent
  • Equipped with an aeration valve for easy filter replacement

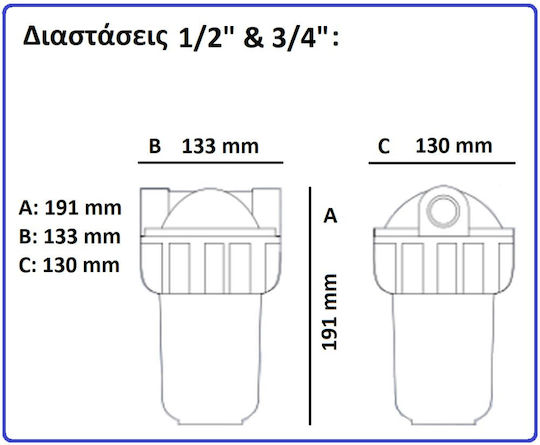

  • Height: 191 mm
  • Head diameter: 133 mm
  • Should be placed in a shaded area
  • Thread diameter: 3/4’’
  • Made from non-toxic materials, suitable for drinking water
  • Maximum operating temperature: 45°C
  • Minimum operating temperature: 4°C

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Product Guides

User Manual

Colour
Transparent
Number of Filters
Single
Type
Central Supply, Under Sink

Type

Central Supply
The installation is done by a plumber. They filter water for the whole house.
Under Sink
They are connected to the sink's water supply. They don't take up space on the countertop.
Material
Plastic
Compatibility
5"
with Replacement Filter
No
with Faucet
No
Pipe Cross Section
3/4''

Pipe Cross Section

This concerns the size of the connection thread of the device with the supply. The pipe diameter (inlet-outlet) of the device must be the same as that of the water supply, in order for the installation to be done correctly.
Self-Cleaning
No
with Manometer
No

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Description & Specifications

Central Supply Device

The Medium Plus 3P 5" AFO SX TS 3/4" central supply device consists of 3 pieces: Head, Fitting, Glass. It is suitable for filtering drinking water, as well as retaining suspended solids, sediment, and rust. The Medium Plus 3P central water filtration device from Atlas Filtri is combined with thread sediment filters and washable filters.

Compatible with:

  • Maximum operating pressure: 8 bar (116psi)
  • Maximum operating temperature: 45°C
  • Head/Fitting material: Reinforced polypropylene
  • Glass material: PET
  • Aeration valve: Polypropylene
  • Sealing flange & valve: EPDM
  • Input/output threads: Brass CW 617N
  • Transparent
  • Equipped with an aeration valve for easy filter replacement
  • Height: 191 mm
  • Head diameter: 133 mm
  • Should be placed in a shaded area
  • Thread diameter: 3/4’’
  • Made from non-toxic materials, suitable for drinking water
  • Maximum operating temperature: 45°C
  • Minimum operating temperature: 4°C

Manufacturer

Manufacturer Details

Warnings & Safety Information

Product Guides

User Manual

Colour
Transparent
Number of Filters
Single
Type
Central Supply, Under Sink

Type

Central Supply
The installation is done by a plumber. They filter water for the whole house.
Under Sink
They are connected to the sink's water supply. They don't take up space on the countertop.
Material
Plastic
Compatibility
5"
with Replacement Filter
No
with Faucet
No
Pipe Cross Section
3/4''

Pipe Cross Section

This concerns the size of the connection thread of the device with the supply. The pipe diameter (inlet-outlet) of the device must be the same as that of the water supply, in order for the installation to be done correctly.
Self-Cleaning
No
with Manometer
No

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
