The Milwaukee M18 FHIWF12-502X impact wrench is powered by an 18 V battery and delivers a maximum torque of 1,356 Nm. Its POWERSTATE brushless motor measures 213 mm in length, while the 1/2" drive features a friction ring. The DRIVE CONTROL system offers four speed and torque settings for different applications.
REDLINK PLUS provides digital overload protection for the tool and battery and enhances performance under load. REDLITHIUM batteries offer longer runtime, while the integrated LED illuminates the work area and the indicator shows the remaining battery charge. The tool is compatible with all MILWAUKEE M18 batteries.
- Power source: Battery
- Voltage: 18 V
- Battery type: Li-ion
- Battery capacity: 5 Ah
- Number of batteries: 2
- Compatible batteries: Milwaukee M18
- Maximum no-load speed: 1,750 rpm

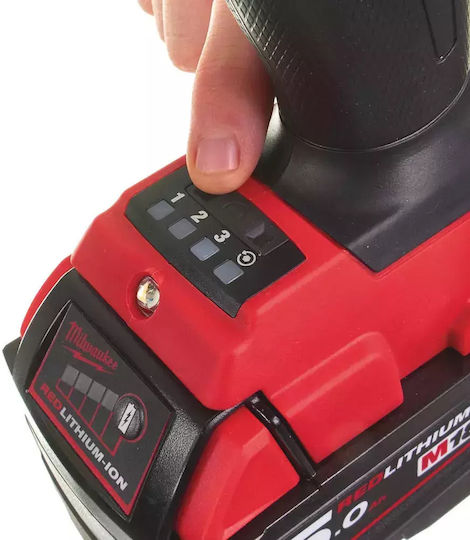

- Speed and torque settings: 4
- Impact rate: 0–950 / 0–1,750 / 0–2,100 / 0–2,100 impacts per minute
- Maximum torque: 1,356 Nm
- Nut-busting torque: 1,898 Nm
- Maximum bolt diameter: M33

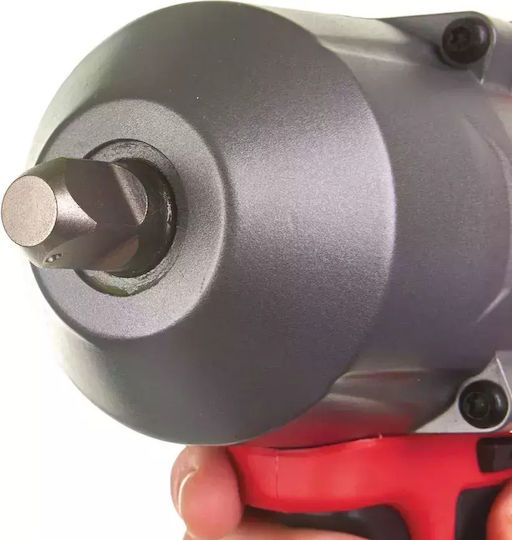

- Drive: 1/2" square with friction ring
- Motor: POWERSTATE brushless

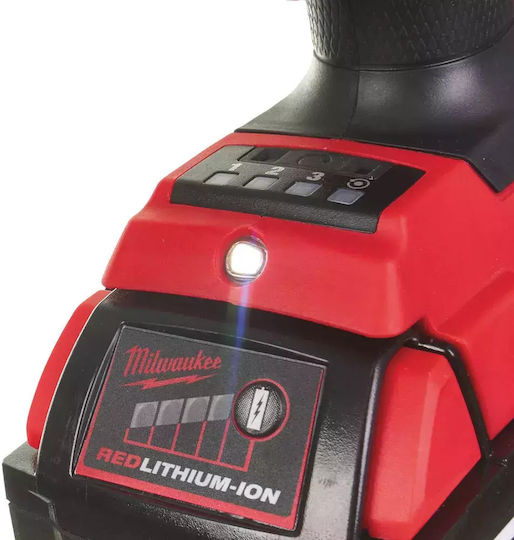

- Lighting: Integrated LED
- Battery indicator: Remaining charge
- Weight with battery: 3.3 kg
- Carrying case: Hard HD Box case
- Package contents: 2 M18 B5 batteries, M12-18 FC rapid charger and hard HD Box case
Product Details
- Power Source
- Battery
- Bit Size
- 1/2"
- Weight (with Battery)
- 3.3 kg
Battery Specifications
- Number of Batteries
- 2
- Volt
- 18 V
- Ah
- 5 Ah
- Lithium
- Yes
- Compatible Battery Type
- Milwaukee M18
Features & Functions
- Maximum Motor Speed
- 1750 rpm
- Speed Setting
- Yes
- Maximum Torque
- 1356 Nm
- Torque Adjustment
- No
- Maximum Impact Rate
- 2100 bpm
- Brushless
- Yes
Brake Type
- Axle Brake
- No
- Electric Brake
- No
- Electronic Brake
- No
Extra Features
- Carrying Case
- Hard Case
- Built-In Light
- Yes
- Bluetooth
- No
- Kit Contents
- 2x5Ah with Hard Case
