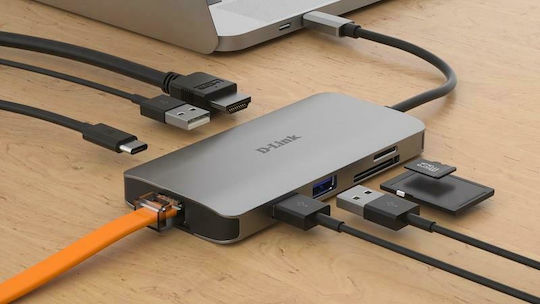

The D-Link DUB-M810 Laptop Docking Station expands a computer’s connectivity via USB-C and adds an HDMI output for connecting a second display. It supports resolutions of up to 4K at 30 Hz, and the HDMI connection can be used to mirror or extend the display. The Ethernet port provides Gigabit wired networking, while Power Delivery lets you power your laptop through the hub when a compatible USB-C charger is connected.
It includes three USB-A 3.0 ports, one USB-C port for data and Power Delivery, one Thunderbolt 3 port, and an integrated SD and microSD card reader. The USB 3.0 ports support data transfer speeds of up to 5 Gbps, and one of them supports fast charging. The enclosure is made of aluminum, and the connection cable is 15 cm long.
- Connection: USB-C
- USB-A ports: 3 USB 3.0, one of which supports fast charging
- USB-C port: 1, for data and Power Delivery
- Thunderbolt compatibility: Thunderbolt 3
- Video output: 1 HDMI 1.4
- Maximum resolution: 4K at 30 Hz
- Ethernet: 1 Gigabit LAN RJ45 port, 10/100/1000 Mbps
- Card reader: SD, SDHC, SDXC, and microSD
- Maximum Power Delivery: 100 W
- Material: Aluminum
- Color: Silver
- Dimensions: 105 x 52 x 13 mm
- Cable length: 15 cm
- Weight: 82 g
- Operating system compatibility: Windows, Mac OS, and Chrome OS
- Connection
- USB-C
- USB
- 1 Thunderbolt 3 Port, 3 USB-A 3.0 Ports
- Screen Connections
- 1 HDMI 1.4 Port
- PowerDelivery (PD)
- Yes
- 4K support
- Yes
- Ethernet
- Yes
- Power
- USB Power Supply
- Audio I/O
- No
- Card Reader
- Yes
- Apple support
- Yes
- Peak Power
- 100 W
- Maximum Resolution
- 4K @ 30Hz
- Colour
- Silver
