Yato Air Lifter YT-67380 Hand Tool

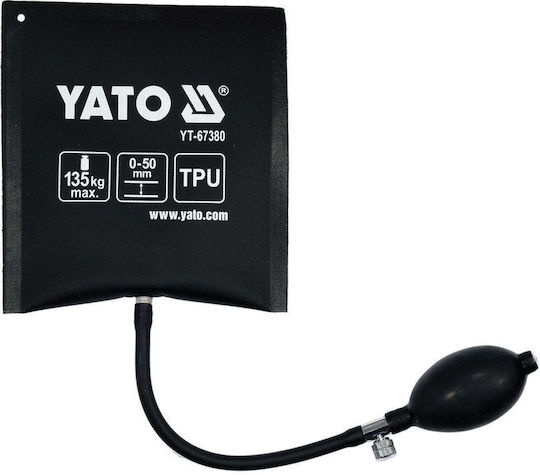

Air lifting and support cushion, made with a metal control valve.

Air lifting and support cushion, made with a metal control valve.

See full description See full description

Description

Description

Air lifting and support cushion, made with a metal control valve.

Features

  •  Cushion material: Fabric with reinforced synthetic fiber base.
  •  Dimensions (mm): 150 x 160
  •  Lifting capacity (kg): 135
  • Max lifting height (mm): 50
  • Tube length (mm): 290

Manufacturer

See full description

Specifications

Specifications

Type
Lifting Air Bag

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Reviews (35)

Reviews

  1. 26
  2. 5
  3. 1
  4. 2
  5. 1
Review this product

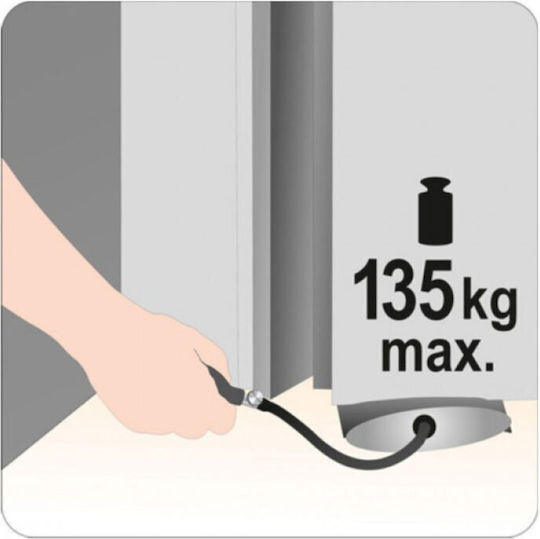

  • Excellent. I used it to remove/install a room door weighing about 70kg and it came off/went back on very easily without injury or fatigue.

    Translated from Greek ·
    0
  • 135 kg. In no case, I tried it on the empty home single fridge. When the air pressure in the bag reaches a certain level, you can no longer easily squeeze the hand pump to increase the pressure further, even if you force it, the hose pops out from the connection with the hand pump and the air is lost immediately. Finally, let me say that until the moment the hose popped out, the fridge did not lift even a millimeter. Perhaps the problem with the hose can be overcome with clamps, but the problem with the pump will remain.

    Translated from Greek ·
    0
  • It does its job as described. I got 2. I used them to lift the washing machine and dryer (one on top of the other)

    Translated from Greek ·
    0
  • Useful tool for many uses inside the house. Not for heavy-duty professional use. My disagreement is with the lifting weight it mentions, 135KG, not even close. I lifted an object, it was about 20 to 30 KG and the pump's bladder had already hardened too much.

    Doing a rough calculation, with the air chamber dimensions of 15 cm x 15 cm, the pressure corresponding to a load of 135KG is about 6 bar. (The elongated YT-67383 is slightly larger, 25 cm x 12 cm and the corresponding pressure is 4.5 bar for 135KG).

    This pressure is unattainable for the pump's bladder. Also, be very careful, because at high pressures, if a part comes off, for example, the metal valve and hits someone in the face, the result will be bad.

    Translated from Greek ·
    6
  • Every time I used it, it did the job perfectly. Mainly, I use it to lift doors in order to lubricate the hinges. I recommend it.

    Translated from Greek ·
    1
  • See all

Description & Specifications

Air lifting and support cushion, made with a metal control valve.

Features

  •  Cushion material: Fabric with reinforced synthetic fiber base.
  •  Dimensions (mm): 150 x 160
  •  Lifting capacity (kg): 135
  • Max lifting height (mm): 50
  • Tube length (mm): 290

Manufacturer

Type
Lifting Air Bag

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

Reviews (35)

  1. 26
  2. 5
  3. 1
  4. 2
  5. 1
Review this product
  • Excellent. I used it to remove/install a room door weighing about 70kg and it came off/went back on very easily without injury or fatigue.

    Translated from Greek ·
    0
  • 135 kg. In no case, I tried it on the empty home single fridge. When the air pressure in the bag reaches a certain level, you can no longer easily squeeze the hand pump to increase the pressure further, even if you force it, the hose pops out from the connection with the hand pump and the air is lost immediately. Finally, let me say that until the moment the hose popped out, the fridge did not lift even a millimeter. Perhaps the problem with the hose can be overcome with clamps, but the problem with the pump will remain.

    Translated from Greek ·
    0
  • It does its job as described. I got 2. I used them to lift the washing machine and dryer (one on top of the other)

    Translated from Greek ·
    0
  • Useful tool for many uses inside the house. Not for heavy-duty professional use. My disagreement is with the lifting weight it mentions, 135KG, not even close. I lifted an object, it was about 20 to 30 KG and the pump's bladder had already hardened too much.

    Doing a rough calculation, with the air chamber dimensions of 15 cm x 15 cm, the pressure corresponding to a load of 135KG is about 6 bar. (The elongated YT-67383 is slightly larger, 25 cm x 12 cm and the corresponding pressure is 4.5 bar for 135KG).

    This pressure is unattainable for the pump's bladder. Also, be very careful, because at high pressures, if a part comes off, for example, the metal valve and hits someone in the face, the result will be bad.

    Translated from Greek ·
    6
  • Every time I used it, it did the job perfectly. Mainly, I use it to lift doors in order to lubricate the hinges. I recommend it.

    Translated from Greek ·
    1
  • See all
