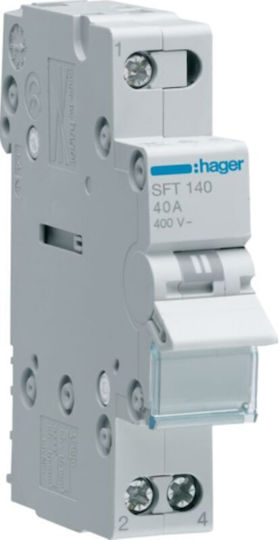

Hager 1-Pole General Use Panel Push Button Switch 230V 40A
Electrical Panel Push Buttons Switches

Hager 1-Pole General Use Panel Push Button Switch 230V 40A

Key features:

  • Command Type: Transfer
  • Number of Poles: 1 P
  • Voltage: 250 V
  • Current: 40 A
See Description & Specifications

Number of poles

  1. 1

    from 9,59 €

  2. 2

    from 15,35 €

Learn more about invoicing

Reviews (8)

Reviews

4.8
8
4.8
Review this product
  1. 7
  2. 4 stars
    0
  3. 1
  4. 2 stars
    0
  5. 1 star
    0
Review this product
Product report

Description & Specifications

The Hager SFT140 single-pole rail switch switches between positions I and II, with a central OFF position. The power supply is connected from above.

  • Type: General purpose
  • Number of poles: 1
  • Operating positions: I-0-II
  • Rated operating voltage: 230 V
  • Rated insulation voltage: 440 V
  • Rated impulse withstand voltage: 4000 V
  • Rated current: 40 A
  • Frequency: 50/60 Hz
  • Number of modules: 1
  • Total power loss: 2.1 W
  • Mechanical endurance: 200,000 cycles
  • Operating temperature: from -20 to 50 °C
  • Storage temperature: from -40 to 80 °C
  • Height: 83 mm
  • Width: 17.5 mm
  • Depth: 70 mm

Manufacturer

Manufacturer Details

Warnings & Safety Information

Specifications

Panel Switches Type
General Use
Number of Poles
1
Nominal Voltage
230 V
Rated Voltage
40 A

Features & Functions

WiFi
No
