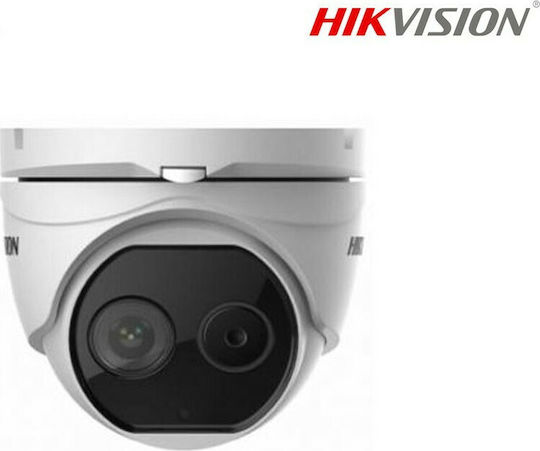

Hikvision DS-2TD1217B-6-PA IP Thermal Surveillance Camera Full HD+ 4MP Waterproof with Lens 8mm
Surveillance Cameras

Hikvision DS-2TD1217B-6-PA IP Thermal Surveillance Camera Full HD+ 4MP Waterproof with Lens 8mm

Technical Product Specifications

  • Type: Dome
  • Construction: IP66, Surge Protection 6000V
  • Indoor: Yes
  • Outdoor: Yes
  • Video Resolutions:
    • Thermal: 160x120
    • Video: 2688x1520 pixels
  • Lens: Fixed
  • Audio: Mic...

Technical Product Specifications

  • Type: Dome
  • Construction: IP66, Surge Protection 6000V
  • Indoor: Yes
  • Outdoor: Yes
  • Video Resolutions:
    • Thermal: 160x120
    • Video: 2688x1520 pixels
  • Lens: Fixed
  • Audio: Mic in/Line in interface 3.5 mm
  • Communication Interface:
    • 1x RJ45 10/100 M
    • 1x RS-485
  • PoE: Yes, PoE (802.3af, class 3)
  • Power Supply: DC 12V, 0.5A
  • Power Consumption: 6...
See full description See full description

  • Login

    IP

    Digital cameras that connect to the wired or wireless network.

  • Video Resolution

    4MP

    High resolution with clear image at medium distances, suitable for monitoring stores, yards, or parking lots.

  • Infrared

    1

    They feature infrared LED, allowing them to capture black and white images in low light conditions or in the dark.

  • Certification

    IP66

    Resistant to dust and powerful water jets from any direction. Suitable for outdoor installations with severe weather conditions.

  • Number of Lenses

    The number of lenses that a camera may have in the same body for better visual coverage of the area.
  • See all
The product is not available for shipping to the selected country.
Review the product
Product report

Description

Description

Technical Product Specifications

  • Type: Dome
  • Construction: IP66, Surge Protection 6000V
  • Indoor: Yes
  • Outdoor: Yes
  • Video Resolutions:
    • Thermal: 160x120
    • Video: 2688x1520 pixels
  • Lens: Fixed
  • Audio: Mic in/Line in interface 3.5 mm
  • Communication Interface:
    • 1x RJ45 10/100 M
    • 1x RS-485
  • PoE: Yes, PoE (802.3af, class 3)
  • Power Supply: DC 12V, 0.5A
  • Power Consumption: 6 W
  • Operating Temperature: +10°C to +35°C
  • Dimensions: 138.3 x 138.3 x 123.1 mm
  • Weight: 940 g

Camera

  • Image Sensor:
    • Thermal: VOx Uncooled Focal Plane Arrays
    • Video: CMOS
  • Resolutions: 4 MP
  • Frame Rate: 25/30 fps
  • Minimum Illumination:
    • Color: 0.0089 Lux (F1.6, AGC ON)
    • B/W: 0.0018 Lux (F1.6, AGC ON)
  • IR Illumination Distance: 15 m
  • Day and Night: IR cut filter with auto switch
  • Data Compression: H.264 / MJPEG / H.265
  • Focal Distance:
    • Thermal: 6.2 mm
    • Video: 8 mm
  • Aperture: F1.6

Camera Functions

  • Network Storage: Built-in MicroSD slot, supports MicroSD/SDHC/SDXC (up to 256 G), supports manual/alarm recording
  • Supported Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
  • Alarm Trigger: 2-ch inputs (0-5 VDC), 2-ch relay outputs, configurable impact actions
  • Others: Client: iVMS-4200, Hik-Connect

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Product Details

Use
IP

Use

IP

Digital cameras that connect to the wired or wireless network.
Type
Dome

Type

Dome

Cameras with discreet design, which generally have increased durability, as their lens is located inside the casing.
Placement
Outdoor

Placement

Outdoor

They have waterproof protection, which makes them capable of operating in an outdoor environment without being affected by weather conditions.
Video Resolution
4MP

Video Resolution

4MP
High resolution with clear image at medium distances, suitable for monitoring stores, yards, or parking lots.
Protection Certification
IP66

Protection Certification

IP66

Resistant to dust and powerful water jets from any direction. Suitable for outdoor installations with severe weather conditions.
Power Source
12V, PoE

Power Source

PoE

Ability to power and transfer data through an Ethernet cable.
Lens Size
8 mm
Colour
White

Night Vision

Infrared
Yes

Infrared


They feature infrared LED, allowing them to capture black and white images in low light conditions or in the dark.
Color Capture
No

Operations

PTZ
No

PTZ

The PTZ (pan-tilt-zoom) function allows you to zoom in and even rotate the camera vertically or horizontally remotely through the application.
Microphone
No

Microphone

The camera has a built-in microphone for recording sound.
Speaker
No
Mobile App
Yes

Mobile App

The camera can be connected to a mobile smartphone through an application. The application allows the user to manage the camera wherever they are.
Wide Angled Lens
No

Wide Angled Lens

The wide-angled lens has a larger horizontal viewing angle (110 degrees and above) and can therefore capture a wider range of the image.
Wide Dynamic Range
No
Thermal
Yes

Thermal

Thermal technology allows the camera to create images based on the temperature differences between objects and their surroundings. While a regular camera is "blinded" by complete darkness, fog, or heavy rain, a thermal camera detects the infrared energy emitted by a person, an animal, or a vehicle.
Motion Detection
No
Rotating
No

Rotating

With remote rotation capability that allows monitoring of more areas within the installation space.
Siren
No

Additional Features

Number of Cameras
1

Number of Cameras

The number of lenses that a camera may have in the same body for better visual coverage of the area.
Memory Card Slot
Yes

Memory Card Slot

The camera provides the ability to insert a memory card for immediate image capture.
Solar Panel
No

Solar Panel

It features a panel that allows for the charging of its battery through solar energy.

Zoom Function

Digital Zoom
No
Optical Zoom
No

Smart Attributes

Wi-Fi
No

Wi-Fi

The camera connects via wi-fi network and data transmission and reception is wireless without the need for cables, except for power supply.
4G
No

4G

The camera connects via a 4G mobile network, and data transmission and reception are done wirelessly without the need for cables, except for the power supply cable.

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Description & Specifications

Technical Product Specifications

  • Type: Dome
  • Construction: IP66, Surge Protection 6000V
  • Indoor: Yes
  • Outdoor: Yes
  • Video Resolutions:
    • Thermal: 160x120
    • Video: 2688x1520 pixels
  • Lens: Fixed
  • Audio: Mic in/Line in interface 3.5 mm
  • Communication Interface:
    • 1x RJ45 10/100 M
    • 1x RS-485
  • PoE: Yes, PoE (802.3af, class 3)
  • Power Supply: DC 12V, 0.5A
  • Power Consumption: 6 W
  • Operating Temperature: +10°C to +35°C
  • Dimensions: 138.3 x 138.3 x 123.1 mm
  • Weight: 940 g

Camera

  • Image Sensor:
    • Thermal: VOx Uncooled Focal Plane Arrays
    • Video: CMOS
  • Resolutions: 4 MP
  • Frame Rate: 25/30 fps
  • Minimum Illumination:
    • Color: 0.0089 Lux (F1.6, AGC ON)
    • B/W: 0.0018 Lux (F1.6, AGC ON)
  • IR Illumination Distance: 15 m
  • Day and Night: IR cut filter with auto switch
  • Data Compression: H.264 / MJPEG / H.265
  • Focal Distance:
    • Thermal: 6.2 mm
    • Video: 8 mm
  • Aperture: F1.6

Camera Functions

  • Network Storage: Built-in MicroSD slot, supports MicroSD/SDHC/SDXC (up to 256 G), supports manual/alarm recording
  • Supported Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
  • Alarm Trigger: 2-ch inputs (0-5 VDC), 2-ch relay outputs, configurable impact actions
  • Others: Client: iVMS-4200, Hik-Connect
