Description
Specifications
Features:

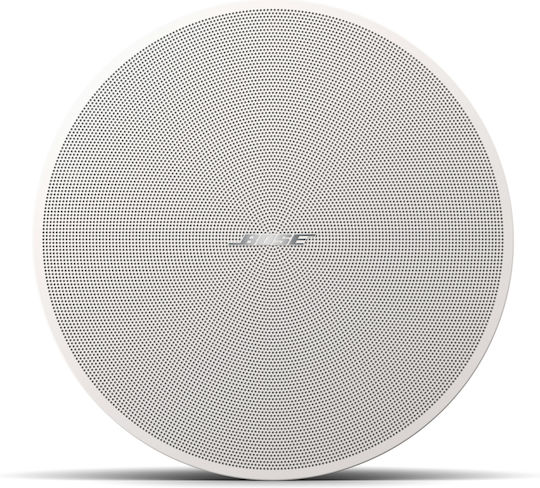

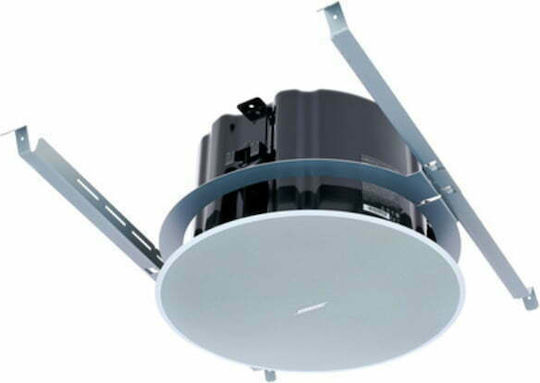

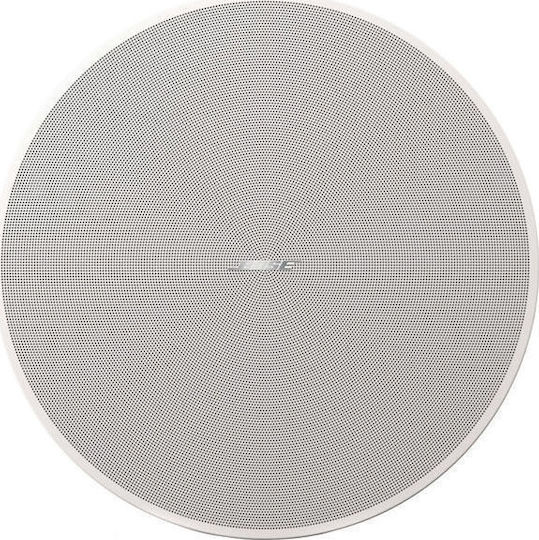

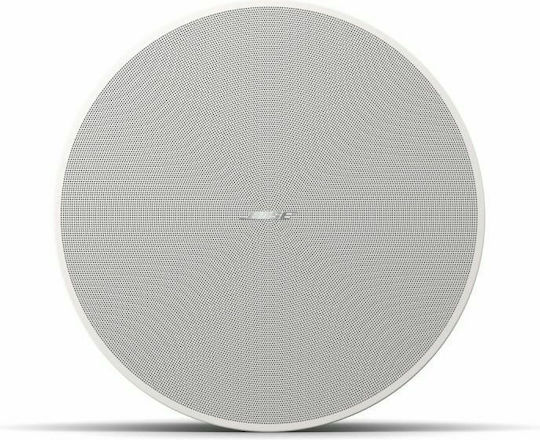

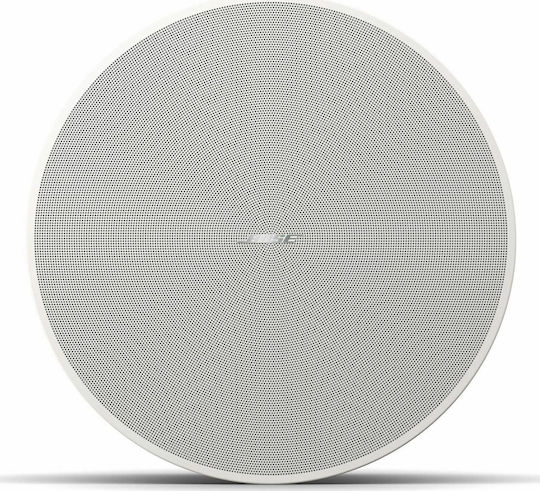

- Two-way coaxial ceiling speaker
- 203mm woofer (8 in) and 25 mm (1 in) compression driver
- Suitable for indoor use
- Frequency response: 60 - 20,000 Hz (+/-3 dB)
- Dispersion: 135° (1 - 4 kHz) conical
- Long-term continuous power: 150 W
- Peak power: 600 W
- Sensitivity (SPL/1W @ 1 m): 91dB
- Maximum SPL@1m: 113dB, 119dB peak
- Impedance: 8 Ω (transformer bypass)
- Transformer taps: 70V: 2.5, 5, 10, 20, 40, 80 W, bypass. 100V: 5, 10, 20, 40, 80 W, bypass
- Metal backcan
- External dimensions (grille diameter x depth): 409 x 255 mm
- Backcan dimensions (diameter x depth): 340 x 240 mm
- Mounting hole size (diameter): 349 mm
- Magnetically mounted grille with safety cord and painting option
- Ability to rotate or remove the logo
- Overdrive protection (Resistor-network power reduction with automatic reset)
- White color
- Weight: 9.6 kg
- Product Number
- 802080-0210
Technical Specifications
- Power (RMS)
- 125 W
- Freequency Range
- 52 - 20000 Hz
- Driver Configuration
- 2 No of Drivers
- Nominal Impendance
- 8 ohm
- Sensitivity
- 90 dB
Main Specifications
- Placing
- Ceiling
- Quantity
- Piece
- Colour
- White
- Functionality
- Passive
Dimensions
- Width
- 34.9 cm
Important information
Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
