Ubiquiti UniFi Building-to-Building Bridge External WiFi Directional Antenna 17.2dBi with Ethernet Connection UBB-US
Wi-Fi Antennas

Ubiquiti UniFi Building-to-Building Bridge External WiFi Directional Antenna 17.2dBi with Ethernet Connection UBB-US

The Ubiquiti UniFi Building-to-Building Bridge directional WiFi antenna is designed for wireless network connections over short distances and supports high data transfer speeds. It connects via...

The Ubiquiti UniFi Building-to-Building Bridge directional WiFi antenna is designed for wireless network connections over short distances and supports high data transfer speeds. It connects via Ethernet and integrates with the UniFi Network application to bridge two networks. The system includes two units.

  • Antenna type: Directional
  • Installation: Outdoor
  • ...
See full description See full description
595 56 €
Delivery Fri, 13 Nov - Thu, 19 Nov
14,00 €   shipping cost
Sent from Greece
From Best-offer 4.9 (102)
4.9 (102 reviews)
Greece
20+ pieces
See Networking on the page of Best-offer

Shop selection criteria

Why do we recommend buying from this shop?

We don’t only look at the price. We weigh different factors to find an offer that combines a good price, fast delivery and a reliable purchase.

  • Product price

    We calculate the total price you will pay and any discounts available from the shop.

  • Shipping & delivery time

    We check how quickly the product can be shipped and when you will receive it, based on your address.

  • Shop reliability

    We look at how often shops complete their orders successfully and how consistently they serve their customers.

  • Official reseller

    Where available, we take into account whether the shop is an official reseller of the brand.

Learn more about invoicing
Product report

Description

Description

The Ubiquiti UniFi Building-to-Building Bridge directional WiFi antenna is designed for wireless network connections over short distances and supports high data transfer speeds. It connects via Ethernet and integrates with the UniFi Network application to bridge two networks. The system includes two units.

  • Antenna type: Directional
  • Installation: Outdoor
  • Connection type: Ethernet
  • Network ports: 1 × 10/100/1000 Ethernet port
  • Antenna gain: 17.2 dBi at 60 GHz, 10 dBi at 5 GHz, and 2 dBi at 2.4 GHz (BLE)
  • Frequency band: 5,150–5,875 GHz
  • Maximum transmit power: 25 dBm at 5 GHz
  • Management: UniFi Network Application version 5.12.0 or later
  • Power supply: 802.3af or 48 V passive PoE
  • Maximum power consumption: 11 W
  • Dimensions: 140 × 140 × 90 mm
  • Weight: 376 g
  • Enclosure material: UV-resistant polycarbonate
  • Pole mounting: Kit included
  • Wall mounting: Kit not included
  • ESD/EMP protection: ±24 kV contact/air
  • Operating wind speed: 200 km/h
  • Operating temperature: -40 to 70 °C
  • Operating humidity: 5–95%, non-condensing
  • Certifications: CE, FCC, IC

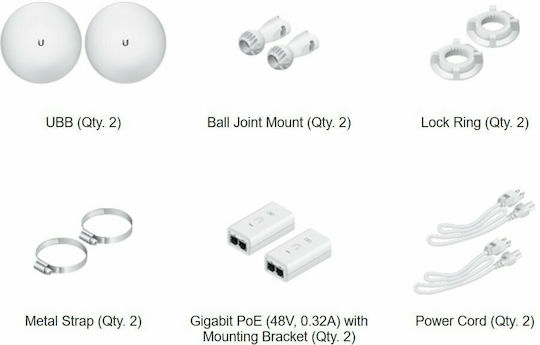

  • Package contents: 2 units, 2 ball-joint mounts, 2 lock rings, 2 metal straps, 2 Gigabit PoE 48 V/0.32 A adapters with mounting brackets, and 2 power cables

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Antenna Type
Directional
Placement
External
Connection
Ethernet
Frequency Bandwidth
5.150 - 5.875 GHz
Gain (Max)
17.2 dBi
MIMO
No

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Reviews (1)

Reviews

5.0
1
5.0
Review this product
  1. 1
  2. 4 stars
    0
  3. 3 stars
    0
  4. 2 stars
    0
  5. 1 star
    0
Review this product
  • Giorgos_Serafeim3758
    5
    1 out of 1 members found this review helpful
    Giorgos_Serafeim3758

    In one word: EXCELLENT. I have been using it (the pair) for about 8 months to connect two areas of 10 users each at a distance of 300 meters without any obstacles in between. I installed them and have forgotten about them. No disconnections during this entire time.

    Translated from Greek ·
    • Ease of installation
    • Range
    • Speed
    • Signal stability
    • Value for money
    Did you find this review helpful?
  • Giorgos_Serafeim3758
    5
    Giorgos_Serafeim3758

    In one word: EXCELLENT. I have been using it (the pair) for about 8 months to connect two areas of 10 users each at a distance of 300 meters without any obstacles in between. I installed them and have forgotten about them. No disconnections during this entire time.

    Translated from Greek ·
    1
  • See all

Description & Specifications

The Ubiquiti UniFi Building-to-Building Bridge directional WiFi antenna is designed for wireless network connections over short distances and supports high data transfer speeds. It connects via Ethernet and integrates with the UniFi Network application to bridge two networks. The system includes two units.

  • Antenna type: Directional
  • Installation: Outdoor
  • Connection type: Ethernet
  • Network ports: 1 × 10/100/1000 Ethernet port
  • Antenna gain: 17.2 dBi at 60 GHz, 10 dBi at 5 GHz, and 2 dBi at 2.4 GHz (BLE)
  • Frequency band: 5,150–5,875 GHz
  • Maximum transmit power: 25 dBm at 5 GHz
  • Management: UniFi Network Application version 5.12.0 or later
  • Power supply: 802.3af or 48 V passive PoE
  • Maximum power consumption: 11 W
  • Dimensions: 140 × 140 × 90 mm
  • Weight: 376 g
  • Enclosure material: UV-resistant polycarbonate
  • Pole mounting: Kit included
  • Wall mounting: Kit not included
  • ESD/EMP protection: ±24 kV contact/air
  • Operating wind speed: 200 km/h
  • Operating temperature: -40 to 70 °C
  • Operating humidity: 5–95%, non-condensing
  • Certifications: CE, FCC, IC
  • Package contents: 2 units, 2 ball-joint mounts, 2 lock rings, 2 metal straps, 2 Gigabit PoE 48 V/0.32 A adapters with mounting brackets, and 2 power cables

Manufacturer

Manufacturer Details

Warnings & Safety Information
Antenna Type
Directional
Placement
External
Connection
Ethernet
Frequency Bandwidth
5.150 - 5.875 GHz
Gain (Max)
17.2 dBi
MIMO
No

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
