Nostalgic HI-FI design. Today's technology.
Emotion: Music is born from something emotional. A unique, personal story that an artist wishes to share. Understanding how music is created and helping artists create it is embedded in Yamaha's DNA.
Authentic HI-FI sound: Authentic, pure Hi-Fi sound is not about listening to the equipment but more about the sound of the artist playing live in the room.
Rhythm: Feeling the music. Not just feeling like you are there, but feeling the story in the music. Feeling the rhythm. Only a true representation of the music can offer this.
- Maximum power (4 ohms, 1kHz, 0.7% THD, for Europe): 160 W + 160 W
- High Dynamic Power/Per channel (8/6/4/2 ohms): 105/135/190/220 W
- Damping Factor: 250 (1 kHz, 8 ohms)
- Frequency Response: +0 / -3 dB (5Hz-100kHz), +0 / -0.3 dB(20 Hz-20 kHz)
- RIAA Equalization Deviation: +/-0.5 dB (PHONO (MM/MC))
- Dimensions (W x H x D): 435×157×463 mm
- Weight: 22.0 kg
- Receiver / Integrated Amplifier Rated Output Power [20 Hz-20 kHz, 0.07% THD]: 90 W + 90 W (8 ohms), 150 W + 150 W (4 ohms)
- Total Harmonic Distortion (20Hz to 20kHz) [Input 0.5 V]: PHONO MC>LINE2 OUT: 0.02% (1.2 mVrms), PHONO>LINE2 OUT: 0.005% (1.2 Vrms), CD, etc.>SP OUT: 0.035% (50 W/8 ohms)
- Signal-to-Noise Ratio PHONO MC: 90 db, PHONO MM: 96 dB, CD, etc.: 110 dB
- Input Sensitivity [1 kHz, 100 W/8 ohms]: PHONO MC: 150 uVrms/50 ohms, PHONO MM: 3.5 mVrms/47 kohms, CD, etc.: 200 mVrms/47 kohms, MAIN IN: 1 Vrms/47 kohms

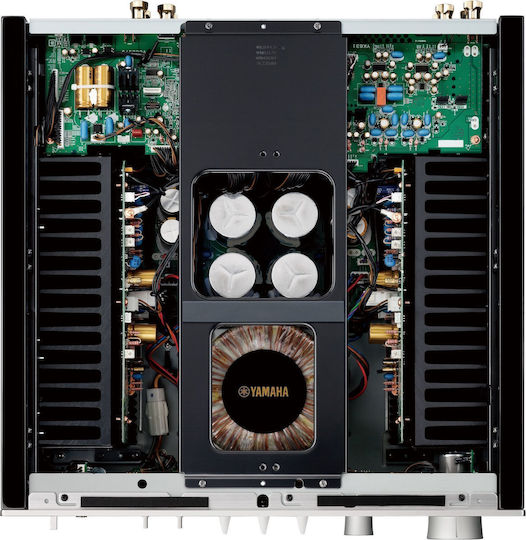

- Transformer: 625VA (Toroidal)
Technical Specifications
- Type
- Integrated
- Technology
- Solid
- Channels
- Stereo
- Power (8Ω)
- 105 watt / channel
- Power (4Ω)
- 190 watt / channel
- SNR
- 90 dB
Connectivity
- Phono
- Yes
- Optical
- No
- Coaxial
- No
- USB
- No
- Ethernet
- No
- Analog
- Yes
- Headphones
- Yes
- Subwoofer
- No
- Wifi
- No
- Bluetooth
- No
Features & Functions
- Streaming
- -
- Radio
- No
Dimensions
- Width
- 43.5 cm
- Length
- 46.3 cm
- Height
- 15.7 cm
