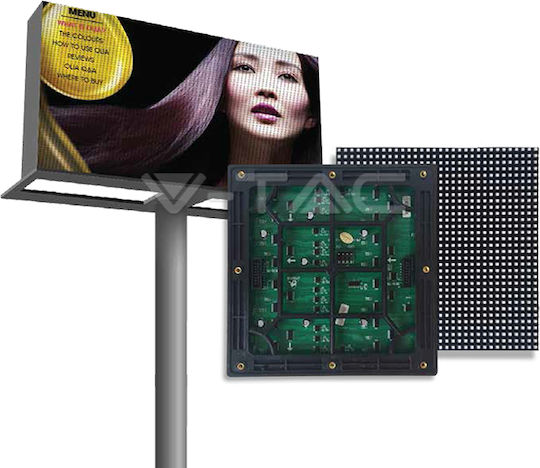

V-TAC LED Outdoor Screen P6 768/768mm

• Pixel density: 27777 dots/sqm
• Brightness: 6500 nits
• Optimal viewing distance: over 6m
• Gray scale: 16 bit
• Screen color: 281 trillion (synchronized)
• Operating power: 220V-240V
• Maximum power consumption: 1350W/sqm
• Refresh rate: 400-800HZ
• Frame rate: 60 HZ
• Input signal: Support S-Video, RGBHV, YUV, etc.
• Control distance: UTP140M, FIBER SINGLE MODE 15KM
• Operating humidity: 10%-90%
• Lifetime (50% brightness): 100000 hours
• IP (Front/Back): IP65/IP45
• Cabinet size (L*H*D): 768*768 mm
• Module resolution: 128*128
• Unit quantity per cabinet: 4*4=16
• Average power consumption: 800w/cabinet
• Cabinet material: Iron
• Cabinet weight: 25 kg/cabinet
• LED unit specialty: Pixel 6 millimeters
• LED specifications: SMD3535
• LED configuration: SMD 3 in 1

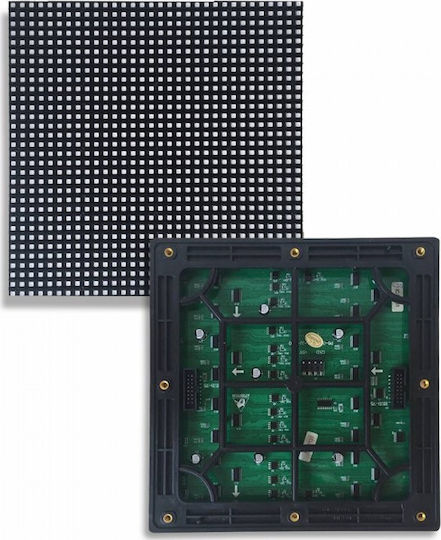

• Module size: 192*192 mm
• Module resolution: 32*32=1024 pixels
• Driving method: 1/8 constant current scanning IC driver SM16106
• EAN code: 3800157617468
