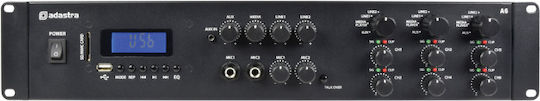

The Adastra A6 installation amplifier distributes stereo audio to three independent zones, with six output channels and Class D amplification. Each zone selects audio from two rear stereo inputs, the front auxiliary input or the built-in media player. Both microphone inputs are active in all zones, and the input controls include a Talkover function.

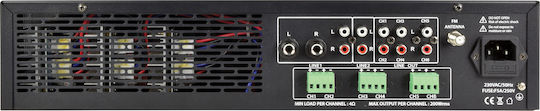

The unit plays MP3 files from a USB drive or SD card and includes an FM tuner with an external antenna connection and a wireless Bluetooth receiver. The speaker outputs connect via Euroblock terminals, while the line output includes six RCA sockets.
- Type: Integrated installation amplifier
- Channels: 6
- Output zones: 3 independent stereo zones
- Output power at 4 Ω: 6 × 200 W RMS
- Output power at 8 Ω: 6 × 100 W RMS
- Amplification technology: Class D
- Frequency response: 20 Hz–20 kHz ±0.5 dB
- Microphone inputs: 2 × 6.3 mm mono jacks
- Line inputs: Line 1 L+R (6.3 mm/RCA), Line 2 L+R (RCA)
- Auxiliary input: 3.5 mm stereo jack
- Line input sensitivity: 0.775 Vrms
- Auxiliary input sensitivity: 0.480 Vrms
- Input impedance: 20 kΩ (balanced), 10 kΩ (unbalanced)
- Audio sources: USB, SD card, FM, Bluetooth
- Bluetooth version: 2.3
- Input controls: Aux, Media, Line 1, Line 2, Mic 1, Mic 2, Talkover
- Antenna connection: F-type
- Line outputs: 6 RCA
- Speaker outputs: 3 four-pin Euroblock connectors
- Output controls: Source selection per zone, Ch1–Ch6 level
- Dynamic range: 92 dB
- THD+N distortion: <0.1%
- Protection: Overheating, overvoltage, overcurrent and short-circuit protection
- Power supply: 230 Vac, 50 Hz (IEC)
- Fuse: F5A, 250 V
- Dimensions: 482 × 300 × 88 mm
- Weight: 8.26 kg
Technical Specifications
- Amplifier Type
- Commercial Amplifier
- Type
- Integrated
- Channels
- 6
- Power (8Ω)
- 100 watt / channel
- Power (4Ω)
- 200 watt / channel
- Class
- D
Additional Specifications
- Radio
- Yes
- Cooling system
- No
Connectivity
- RCA
- Yes
- XLR
- No
- Mini Jack (3.5mm)
- No
- Jack (6.3mm)
- No
- USB
- Yes
- Ethernet
- No
- Bluetooth
- Yes
- Mic In
- No
Dimensions
- Width
- 482 mm
- Height
- 88 mm
- Length
- 300 mm
