Main Specifications

Dimension

120 mm

Dimension

The diameter of the fan in millimeters. The larger the fan, the more effective the cooling and the quieter its operation compared to a smaller one. The most common size is 120mm, with some computer cases supporting larger sizes such as 140mm.

Colour

Black

Packaging

1 pcs

Technical Specifications

Fan Speed (Max)

900 rpm

Fan Speed (Max)

The maximum rotations at which the fan turns. To reduce the rotations, it should be connected to a speed controller, either through a port on the motherboard that supports this function. Usually, the higher the rotations, the greater the flow but also the noise. As long as the needs for noise and air flow are covered, the rotations do not need to be taken into account.

Noise Level (Max)

22 dB

Noise Level (Max)

The noise produced by the fan when operating at maximum speed.

A medium noise fan produces 20-28dB, while those below 20dB are considered quiet.

Air Flow (Max)

29.4 cfm

Air Flow (Max)

The amount of air that the fan can push in one minute (cubic feet per minute) when operating at maximum speed.

The higher the number, the more effective the cooling that the fan can provide.

Higher quality fans can produce the same airflow with less noise and speed.

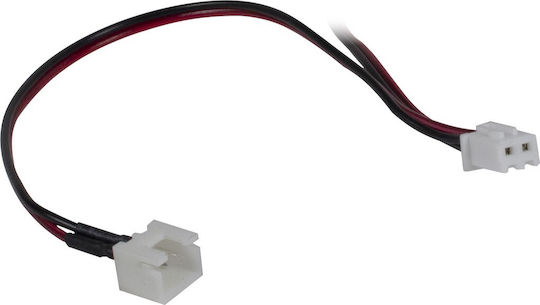

Connection

2-Pin

LED Color

RGB

Reverse Blade

No

Reverse Blade

Reverse blade fans reverse the airflow, allowing for intake without the interference of the frame, which reduces aerodynamic turbulence and noise. Additionally, apart from enhancing aesthetics and lighting, they make it easier to clean the blades and offer better cable management, as the wiring remains hidden behind the frame.
