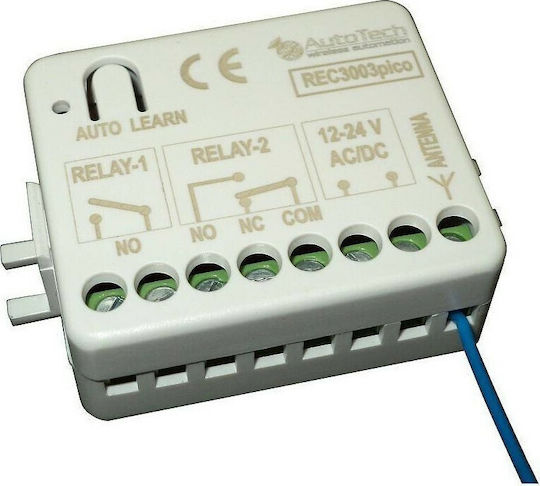

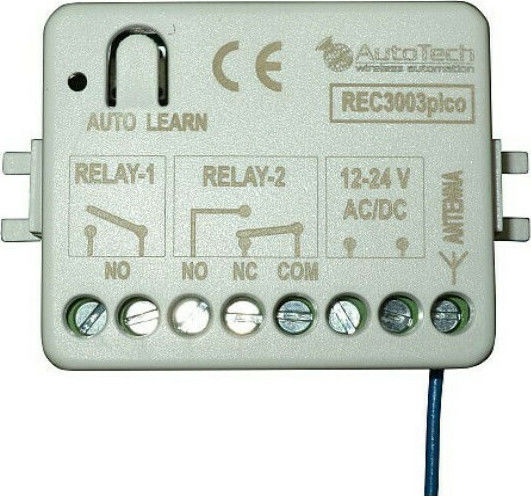

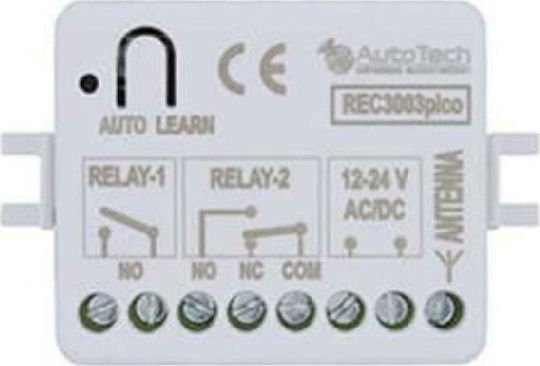

The Autotech Rec 3003 Pico garage door control panel is a digital wireless RF receiver with two independent channels, for garage door operators and other automation applications. It operates at 433.92 MHz and is powered by 12 or 24 V AC/DC. Its standalone installation does not require a dedicated socket on the associated control panel.

The AUTO LEARN button is used to program compatible remote controls and assign them to the channels. The memory stores up to 40 remote controls in total. The relays can be configured independently either for automatic reset, as push buttons, or for latching, as switches.

• Type: Digital wireless RF receiver
• Channels: 2 independent
• Operating frequency: 433.92 MHz
• Bandwidth: 420 kHz
• Supply voltage: 12 or 24 V AC/DC
• Sensitivity: -117 dBm
• Memory: Up to 40 remote controls
• 1st relay: 1 NO contact, maximum load 1 A/24 VDC
• 2nd relay: 1 NO contact and 1 NC contact, maximum load 1 A/24 VDC
• Relay operation: Automatic reset or latching, independently configurable for each relay
• Technology: SMD
• Compliance: CE
• Protective enclosure dimensions: 45 × 32 × 20 mm
• Dimensions with side brackets: 57 × 32 × 20 mm
