Door & Window Sensors

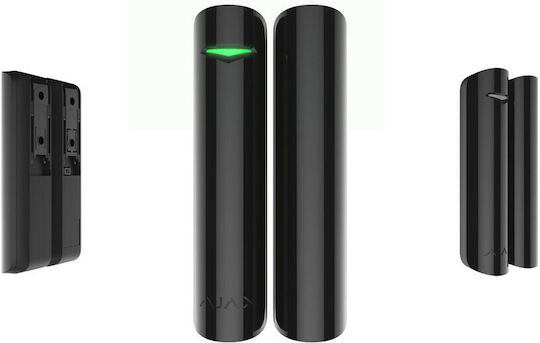

Ajax Systems DoorProtect Plus Wireless Contact Sensor RF 90x20mm

Key features:

  • Connectivity: RF (Jeweller)
  • Dimensions: 90x20mm
  • Compatible battery: CR123A
  • Protection certification: IP50
See full description
  • Dimensions 90x20mm
  • See all

User Manual

Description

Description

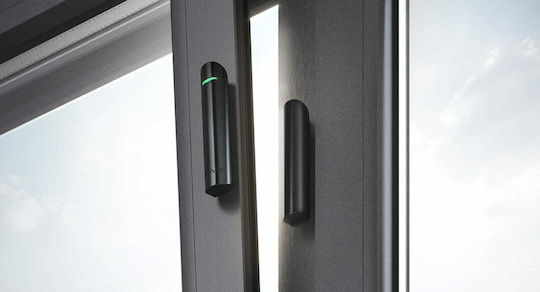

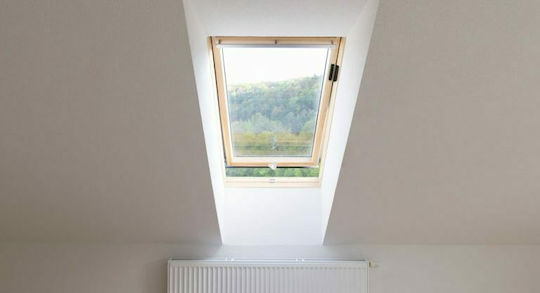

The wireless opening detector alerts you to the first signs of intrusion into the room through the door or window. It can even be installed on rooftop windows that can be left open when you leave the house.

Wireless magnetic contact for monitoring building openings (doors and windows) with an integrated shock sensor. The package includes 2 magnets (large and small).


Operating Principle

The device detects the opening of the door or window through high-tech switches that operate via the magnetic field. It can function in transmitter mode, sending a signal from the wired sensor to the hub.

The device even protects windows that are left open for ventilation. The accelerometer records changes in the vertical tilt angle, impacts, or vibrations and sends an alarm to the center.

Installation and Setup

Ready to operate straight out of the box: the battery is already installed, so there is no need to disassemble the detector. With one click, it can be connected to the hub in the mobile app. It can be mounted on the SmartBracket within minutes.

Features

  • Authentication to prevent forgery
  • Jamming detection and communication channel encryption
  • Tamper alarm
  • Operates up to 5 years without battery replacement
  • Registers changes in vertical tilt angle, impacts, and vibrations
  • External contact available for connecting third-party detectors
  • Operating gap: 1cm with the small magnet and 2cm with the large one
  • The shock sensor provides a choice of three sensitivity levels

Technical Specifications

  • Compatibility with Ajax Hubs
  • Communication technology: Jeweller
  • Protection against tampering
  • Device authentication
  • Power supply: CR123A battery
  • Dimensions: 20x90mm
  • Weight: 29g
  • Operating temperature range from -10°C to +40°C
  • Operating humidity up to 75%
  • Protection category IP50

The package includes

  • Jeweler DoorProtect Plus
  • SmartBracket mounting panel
  • CR123A battery (pre-installed)
  • Large magnet
  • Small magnet
  • Terminal for connecting third-party detector
  • Installation kit Quick start guide

Manufacturer

See full description

Specifications

Specifications

Product Guides

User Manual

Specifications

Connection Method
Wireless
Battery
Yes
Battery Type
CR123A
Dimensions (Spec Summary)
90x20mm
Μεταλλική
No
Tamper
Yes
Pieces
1 pcs

Installation

Screw-in
No
Adhesive
No
Recessed
No
Nailed
No

Smart Attributes

Connectivity
RF

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications
