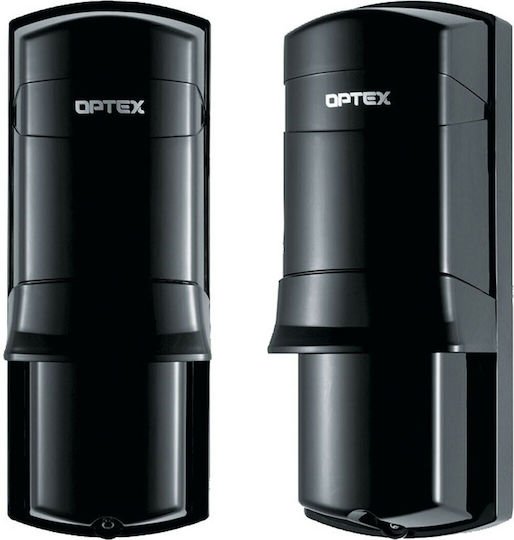

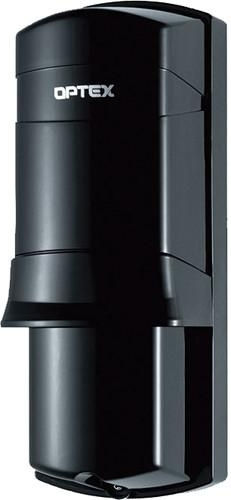

Optex AX-200TN Wired Double Beam Detector IP65 10.5-28V Scope 60m
Beam Sensors

Optex AX-200TN Wired Double Beam Detector IP65 10.5-28V Scope 60m

  • Type: Photoelectric dual beam detector (Dual Beam)
  • Range: 60m (outdoor) / 100m (indoor)
  • Power Supply: 10.5-28V DC
  • Maximum Consumption: 38mA
  • Outputs: NC (Normally Closed) and Tamper
  • Type: Photoelectric dual beam detector (Dual Beam)
  • Range: 60m (outdoor) / 100m (indoor)
  • Power Supply: 10.5-28V DC
  • Maximum Consumption: 38mA
  • Outputs: NC (Normally Closed) and Tamper
See full description See full description

  • Login

    Wired

    It connects to the installation system with a cable and is powered through it.

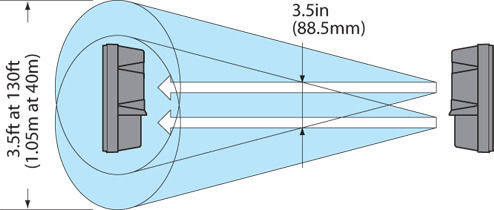

  • Number of Beams

    The number of beams indicates the quantity of infrared rays connecting the transmitter to the receiver. More beams mean greater coverage height and fewer false alarms, as all beams must be interrupted simultaneously to trigger the system.

  • Range

    The range indicates the maximum distance (in meters) that the transmitter can be from the receiver in order to operate reliably.

  • Length

    Usually, the greater the length, the more beams there are in the device, and therefore the greater the coverage length of the detector.

  • Operating Voltage

    It refers to wired beam detectors and indicates how much voltage (in Volts) the detector needs to operate.

  • Protection Certification

    IP65

    Suitable for outdoor areas with heavy rain or pressurized water. Provides complete protection against dust and object intrusion, ideal for gardens or industrial spaces.
  • See all
Product report

Description

Description

  • Type: Photoelectric dual beam detector (Dual Beam)
  • Range: 60m (outdoor) / 100m (indoor)
  • Power Supply: 10.5-28V DC
  • Maximum Consumption: 38mA
  • Outputs: NC (Normally Closed) and Tamper
  • Protection: Anti-frost design
  • Ingress Protection Rating IP 65
  • 4kV lightning protection circuit
  • Functions: AGC circuit (Automatic Gain Control)
  • Operating Temperature: -25°C to +60°C
  • Dimensions: 17 x 6.5 x 6.95 cm

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Connector
Wired

Connector

Wired
It connects to the installation system with a cable and is powered through it.
Scope
60 m

Scope

The range indicates the maximum distance (in meters) that the transmitter can be from the receiver in order to operate reliably.
Number of Beams
2 Bundles

Number of Beams

The number of beams indicates the quantity of infrared rays connecting the transmitter to the receiver. More beams mean greater coverage height and fewer false alarms, as all beams must be interrupted simultaneously to trigger the system.
Operating Voltage
10.5-28V

Operating Voltage

It refers to wired beam detectors and indicates how much voltage (in Volts) the detector needs to operate.
Protection Certification
IP65

Protection Certification

IP65
Suitable for outdoor areas with heavy rain or pressurized water. Provides complete protection against dust and object intrusion, ideal for gardens or industrial spaces.
Length
17 cm

Length

Usually, the greater the length, the more beams there are in the device, and therefore the greater the coverage length of the detector.

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Reviews (1)

Reviews

5.0
1
5.0
Review this product
  1. 1
  2. 4 stars
    0
  3. 3 stars
    0
  4. 2 stars
    0
  5. 1 star
    0
Review this product

Description & Specifications

  • Type: Photoelectric dual beam detector (Dual Beam)
  • Range: 60m (outdoor) / 100m (indoor)
  • Power Supply: 10.5-28V DC
  • Maximum Consumption: 38mA
  • Outputs: NC (Normally Closed) and Tamper
  • Protection: Anti-frost design
  • Ingress Protection Rating IP 65
  • 4kV lightning protection circuit
  • Functions: AGC circuit (Automatic Gain Control)
  • Operating Temperature: -25°C to +60°C
  • Dimensions: 17 x 6.5 x 6.95 cm
