Motion Sensors

Optex Motion Sensor

Key features:

  • Type: Motion & Curtain
  • Range: 18m
See full description
298 00 €
Delivery by Thu, 26 Nov
14,00 €   shipping cost
Sent from Greece
From Dcs 4.8 (4)
Greece
20+ pieces
See Household Sensors & Alarms on the page of Dcs

Learn more about invoicing

Description

Description

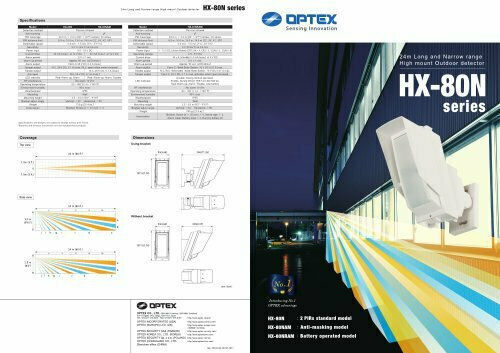

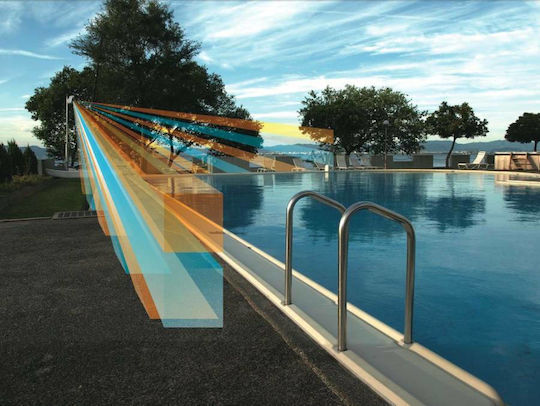

The Optex HX-80NRAM outdoor wireless motion sensor detects movement in a curtain-type zone with a range of 24 m × 2 m and 20 zones. It uses two pyroelectric elements and Antimasking technology. The range can be adjusted to 6.5 m, 10 m, 13 m or 18 m.

  • Type: Outdoor wireless curtain detector
  • Pyroelectric elements: 2
  • Detection range: 24 m × 2 m
  • Zones: 20
  • Adjustable range: 6.5 m, 10 m, 13 m, 18 m
  • Detection speed: 0.3–1.5 m/s
  • Input voltage: 3–7.2 V DC
  • Power supply: CR 123A × 3, CR2 × 3, 1/2AA × 3 or 1/2AA × 6 lithium batteries
  • Current consumption: 30 μA
  • RFI immunity: No alarm at 10 V/m
  • Operating temperature: -20 °C to +60 °C
  • Protection rating: IP55
  • Mounting height: 2.5–3 m

Manufacturer

See full description

Specifications

Specifications

Specifications

Detection Angle
-
Protection Certification
-
Scope
-
Connector
-
Battery
No
Battery Type
-
Software Version
-

Additional Features

Antimasking
-
Tamper
-
Curtain
-
Placement
-
Recessed
-
PET
No
Built-in Camera
-

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Description & Specifications

The Optex HX-80NRAM outdoor wireless motion sensor detects movement in a curtain-type zone with a range of 24 m × 2 m and 20 zones. It uses two pyroelectric elements and Antimasking technology. The range can be adjusted to 6.5 m, 10 m, 13 m or 18 m.

  • Type: Outdoor wireless curtain detector
  • Pyroelectric elements: 2
  • Detection range: 24 m × 2 m
  • Zones: 20
  • Adjustable range: 6.5 m, 10 m, 13 m, 18 m
  • Detection speed: 0.3–1.5 m/s
  • Input voltage: 3–7.2 V DC
  • Power supply: CR 123A × 3, CR2 × 3, 1/2AA × 3 or 1/2AA × 6 lithium batteries
  • Current consumption: 30 μA
  • RFI immunity: No alarm at 10 V/m
  • Operating temperature: -20 °C to +60 °C
  • Protection rating: IP55
  • Mounting height: 2.5–3 m

Manufacturer

Specifications

Detection Angle
-
Protection Certification
-
Scope
-
Connector
-
Battery
No
Battery Type
-
Software Version
-

Additional Features

Antimasking
-
Tamper
-
Curtain
-
Placement
-
Recessed
-
PET
No
Built-in Camera
-

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

298,00 €
