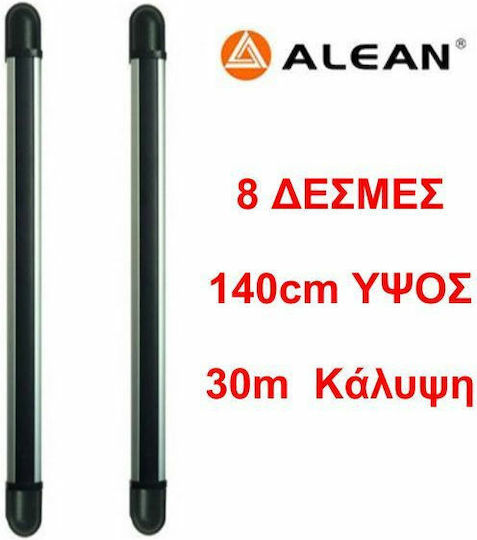

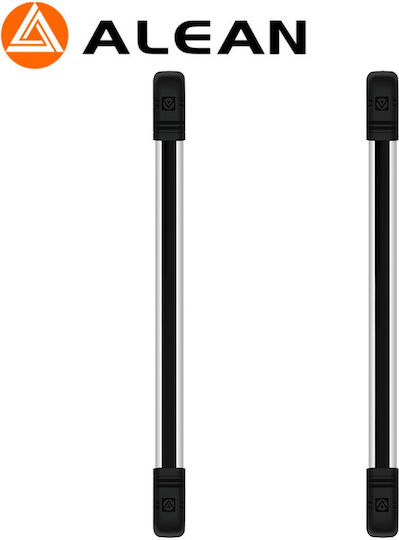

Alean ABI30-1408 Wired Beam Detector 8 Beams Scope 30m
Beam Sensors

Alean ABI30-1408 Wired Beam Detector 8 Beams Scope 30m

  • Model/Manufacturer: ABI30-1408 (Alean)
  • Series: ABI AIR
  • Number of Beams: 8
  • Range (Maximum): 30 meters
  • Unit Height: 140 cm (1.4 meters)
  • Model/Manufacturer: ABI30-1408 (Alean)
  • Series: ABI AIR
  • Number of Beams: 8
  • Range (Maximum): 30 meters
  • Unit Height: 140 cm (1.4 meters)
See full description See full description

  • Login

    Wired

    It connects to the installation system with a cable and is powered through it.

  • Number of Beams

    The number of beams indicates the quantity of infrared rays connecting the transmitter to the receiver. More beams mean greater coverage height and fewer false alarms, as all beams must be interrupted simultaneously to trigger the system.

  • Range

    The range indicates the maximum distance (in meters) that the transmitter can be from the receiver in order to operate reliably.

  • Length

    Usually, the greater the length, the more beams there are in the device, and therefore the greater the coverage length of the detector.
  • See all
Product report

Description

Description

  • Model/Manufacturer: ABI30-1408 (Alean)
  • Series: ABI AIR
  • Number of Beams: 8
  • Range (Maximum): 30 meters
  • Unit Height: 140 cm (1.4 meters)
  • Technology: Digital variable frequency with microprocessor CPU
  • Settings: * Power adjustable in 3 levels
  • Sensitivity depending on the environment and light intensity
  • Rotation Capability: 180°
  • Alarm Output: NC relay (26Vdc / 0.5A)
  • Operating Temperature: 0°C to +55°C
  • Dimensions: 1400 (H) x 40 (W) x 45 (D) mm

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Connector
Wired

Connector

Wired
It connects to the installation system with a cable and is powered through it.
Scope
30 m

Scope

The range indicates the maximum distance (in meters) that the transmitter can be from the receiver in order to operate reliably.
Number of Beams
8 Bundles

Number of Beams

The number of beams indicates the quantity of infrared rays connecting the transmitter to the receiver. More beams mean greater coverage height and fewer false alarms, as all beams must be interrupted simultaneously to trigger the system.
Length
140 cm

Length

Usually, the greater the length, the more beams there are in the device, and therefore the greater the coverage length of the detector.

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Reviews (2)

Reviews

5.0
2
5.0
Review this product
  1. 2
  2. 4 stars
    0
  3. 3 stars
    0
  4. 2 stars
    0
  5. 1 star
    0
Review this product

Description & Specifications

  • Model/Manufacturer: ABI30-1408 (Alean)
  • Series: ABI AIR
  • Number of Beams: 8
  • Range (Maximum): 30 meters
  • Unit Height: 140 cm (1.4 meters)
  • Technology: Digital variable frequency with microprocessor CPU
  • Settings: * Power adjustable in 3 levels
  • Sensitivity depending on the environment and light intensity
  • Rotation Capability: 180°
  • Alarm Output: NC relay (26Vdc / 0.5A)
  • Operating Temperature: 0°C to +55°C
  • Dimensions: 1400 (H) x 40 (W) x 45 (D) mm

Manufacturer

Manufacturer Details

Warnings & Safety Information
Connector
Wired

Connector

Wired
It connects to the installation system with a cable and is powered through it.
Scope
30 m

Scope

The range indicates the maximum distance (in meters) that the transmitter can be from the receiver in order to operate reliably.
Number of Beams
8 Bundles

Number of Beams

The number of beams indicates the quantity of infrared rays connecting the transmitter to the receiver. More beams mean greater coverage height and fewer false alarms, as all beams must be interrupted simultaneously to trigger the system.
Length
140 cm

Length

Usually, the greater the length, the more beams there are in the device, and therefore the greater the coverage length of the detector.
