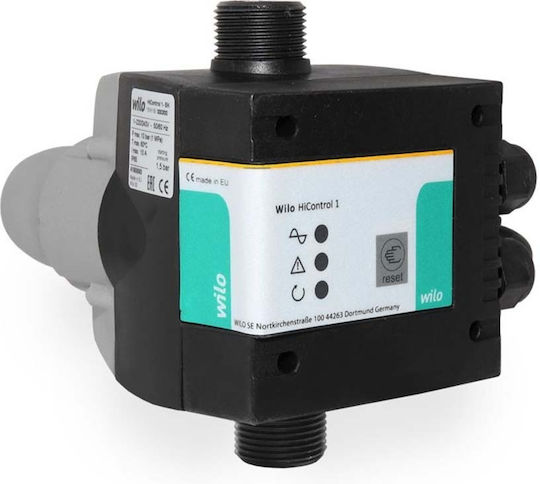

Wilo HiControl 1/FC Electronic Pressure Controller for Automatic Pump Control 4218631
Irrigation Monitoring Sensors

Wilo HiControl 1/FC Electronic Pressure Controller for Automatic Pump Control 4218631

Electronically controlled pressure and flow monitoring systems with water shortage protection and check valve for the automatic monitoring of booster sets/water supply installations with single-phase...

Electronically controlled pressure and flow monitoring systems with water shortage protection and check valve for the automatic monitoring of booster sets/water supply installations with single-phase pump sets.

The device activates the pump if the preset nominal pressure falls below the permissible limit and deactivates it with a time delay after the flow...

See full description See full description
Product report

Description

Description

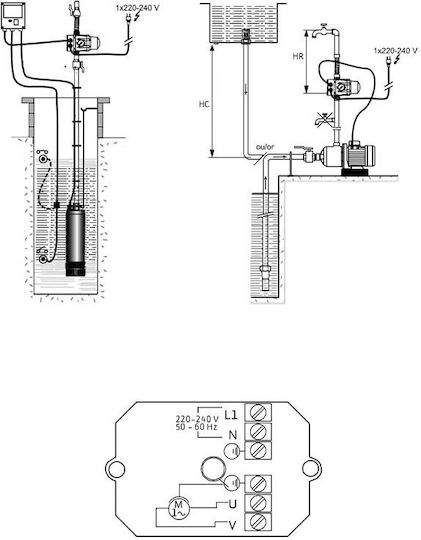

Electronically controlled pressure and flow monitoring systems with water shortage protection and check valve for the automatic monitoring of booster sets/water supply installations with single-phase pump sets.

The device activates the pump if the preset nominal pressure falls below the permissible limit and deactivates it with a time delay after the flow stops.

The Wilo-HiControl 1/FC protects the installations against prolonged dry running if there is insufficient water supply, in case of exceeding the suction height, as well as in non-sealed and closed pipelines.

  • Permissible liquids: Clean water without solid particles
  • Maximum flow rate: 10 m3/h
  • Maximum permissible operating pressure: 10 bar
  • Activation pressure: 1.5-2.7 bar
  • Maximum permissible water temperature: 60°C
  • Voltage: Single-phase current 1~220-250 V, 50-60 Hz
  • Type of protection: IP65
  • Nozzle connection: R 1"

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Dimensions

Type
Pressure Controller
Electronic
Yes
Thread Size
1"

Technical Specifications

Maximum Operating Pressure
10 bar
Maximum Pump Power
2 hp

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Reviews (3)

Reviews

3.7
3
3.7
Review this product
  1. 2
  2. 4 stars
    0
  3. 3 stars
    0
  4. 2 stars
    0
  5. 1
Review this product
  • giorlam
    5
    giorlam

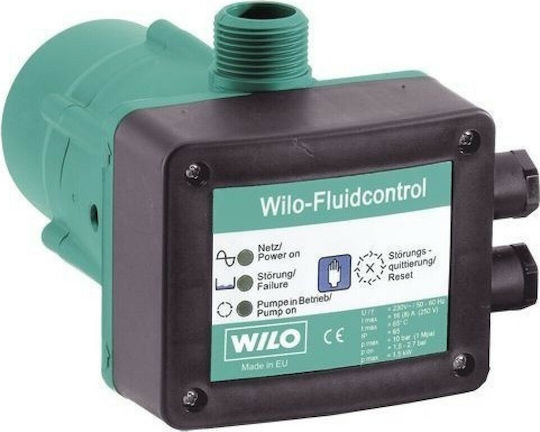

    Very high-quality automation as a replacement for the old Wilo fluidcontrol I had for 12 years. It has the ability to adjust the pump's starting pressure up to 2.7 bar.

    Translated from Greek ·
    Did you find this review helpful?
  • ANDREAS PANAGIOTOPOULOS
    1
    ANDREAS PANAGIOTOPOULOS

    I fail to understand why this thing costs close to €100. It is truly useless. You can only adjust the lower limit where it starts, with the maximum you can set being 2.7 bar. The upper limit cannot be adjusted. It stops wherever it wants. Wherever the pump can reach.
    I bought it thinking it was better, to replace a mechanical pressure switch I had on the expansion tank, hoping it would give me more stable pressure. The result is that it turns on at 2.7 and turns off at 5.5! The house has truly become UNUSABLE.
    I wonder how Wilo sells this, and puts their name on it!

    Translated from Greek ·
    Did you find this review helpful?
  • 5
    Eytychios_Mpellias

    Verified purchase

  • giorlam
    5
    giorlam

    Very high-quality automation as a replacement for the old Wilo fluidcontrol I had for 12 years. It has the ability to adjust the pump's starting pressure up to 2.7 bar.

    Translated from Greek ·
    0
  • ANDREAS PANAGIOTOPOULOS
    1
    ANDREAS PANAGIOTOPOULOS

    I fail to understand why this thing costs close to €100. It is truly useless. You can only adjust the lower limit where it starts, with the maximum you can set being 2.7 bar. The upper limit cannot be adjusted. It stops wherever it wants. Wherever the pump can reach.
    I bought it thinking it was better, to replace a mechanical pressure switch I had on the expansion tank, hoping it would give me more stable pressure. The result is that it turns on at 2.7 and turns off at 5.5! The house has truly become UNUSABLE.
    I wonder how Wilo sells this, and puts their name on it!

    Translated from Greek ·
    0
  • 5
    Eytychios_Mpellias

    0
  • See all

Description & Specifications

Electronically controlled pressure and flow monitoring systems with water shortage protection and check valve for the automatic monitoring of booster sets/water supply installations with single-phase pump sets.

The device activates the pump if the preset nominal pressure falls below the permissible limit and deactivates it with a time delay after the flow stops.

The Wilo-HiControl 1/FC protects the installations against prolonged dry running if there is insufficient water supply, in case of exceeding the suction height, as well as in non-sealed and closed pipelines.

  • Permissible liquids: Clean water without solid particles
  • Maximum flow rate: 10 m3/h
  • Maximum permissible operating pressure: 10 bar
  • Activation pressure: 1.5-2.7 bar
  • Maximum permissible water temperature: 60°C
  • Voltage: Single-phase current 1~220-250 V, 50-60 Hz
  • Type of protection: IP65
  • Nozzle connection: R 1"

Manufacturer

Manufacturer Details

Warnings & Safety Information

Dimensions

Type
Pressure Controller
Electronic
Yes
Thread Size
1"

Technical Specifications

Maximum Operating Pressure
10 bar
Maximum Pump Power
2 hp

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
