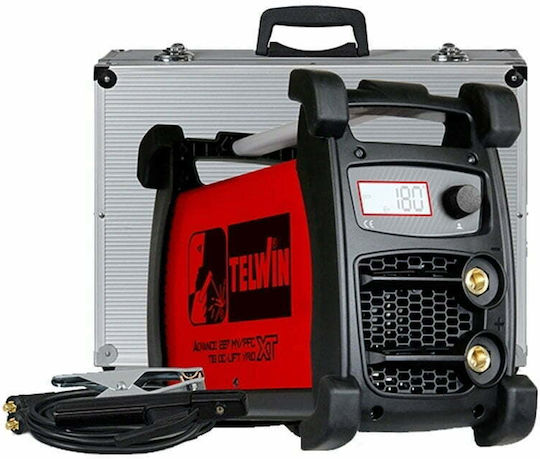

Telwin Advance 227XT MV/PFC VRD Welding Machine Inverter TIG / MMA with Maximum Welding Current 200A and Duty Cycle 30%
Welding Machines

Telwin Advance 227XT MV/PFC VRD Welding Machine Inverter TIG / MMA with Maximum Welding Current 200A and Duty Cycle 30%

ADVANCE 227 XT MV/PFC VRD Inverter Welding Machine 200A TIG

Description

  • LCD DISPLAY: Modern electronic screen for guaranteed visibility in low light conditions.
  • Use of long extension (250 meters).
  • ...

ADVANCE 227 XT MV/PFC VRD Inverter Welding Machine 200A TIG

Description

  • LCD DISPLAY: Modern electronic screen for guaranteed visibility in low light conditions.
  • Use of long extension (250 meters).
  • MULTIVOLTAGE: Flexible use with any variable voltage in a wide range (100 / 120V, 180V, 200V, 220 / 240V).
  • VRD: Improved safety during welding operations in wet...
See full description See full description

  • Welding Current

    200

    Suitable for professional use on thick metals, such as steel or cast iron constructions.

  • Duty Cycle

    The Duty Cycle is the portion of a ten-minute period that a welding machine can operate continuously at maximum Amperes before it needs to stop and cool down.

    2.

    For example, a welding machine with a maximum Amperage of 200 A and a Duty Cycle of 30% can operate continuously at 200 A for 3 minutes before it needs to stop.

  • Power Supply Voltage

    240

    It is the supply voltage that the machine requires from the electrical grid.
  • See all
Review the product
Product report

Description

Description

ADVANCE 227 XT MV/PFC VRD Inverter Welding Machine 200A TIG

Description

  • LCD DISPLAY: Modern electronic screen for guaranteed visibility in low light conditions.
  • Use of long extension (250 meters).
  • MULTIVOLTAGE: Flexible use with any variable voltage in a wide range (100 / 120V, 180V, 200V, 220 / 240V).
  • VRD: Improved safety during welding operations in wet environments (mines, shipyards, etc.).
  • Energy-efficient: Low power consumption.
  • HOT START IGNITION: Additional electrical power for smooth welding start.
  • ANTI-STICK: Stops welding current if the electrode sticks to the material.
  • ARC-FORCE: Automatic current calibration during welding for perfect seam.
  • TIG – LIFT: For maximum TIG welding quality.
  • Compact and lightweight.
  • Thermostatic.
  • Overvoltage-undervoltage protection, overcurrent protection.
  • Generator protection (± 15%).
  • Complete with MMA welding accessories and aluminum carrying case.

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

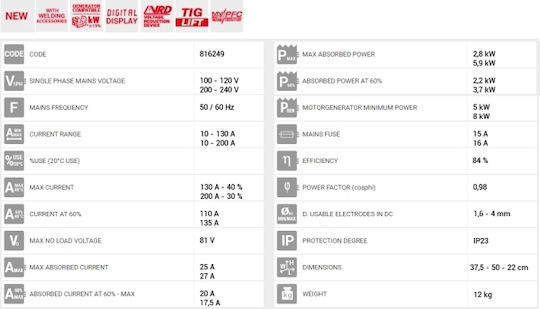

Specifications

Specifications

Dimensions

Type
TIG, MMA

Type

TIG

Slow welding for detailed work on aluminum and stainless steel, mainly. Requires experience and connection to an external gas cylinder. Does not create "spatters".

MMA

Creates thick and strong bonds without the need for external gas supply, making it ideal for out-of-lab welding.
Welding Current (max)
200 A

Welding Current (max): 200


Suitable for professional use on thick metals, such as steel or cast iron constructions.
Operation Cycle (max Ampere)
30 %

Operation Cycle (max Ampere)

The Duty Cycle is the portion of a ten-minute period that a welding machine can operate continuously at maximum Amperes before it needs to stop and cool down.

2.

For example, a welding machine with a maximum Amperage of 200 A and a Duty Cycle of 30% can operate continuously at 200 A for 3 minutes before it needs to stop.
Supply Voltage
240 V

Supply Voltage: 240


It is the supply voltage that the machine requires from the electrical grid.
Weight
6200 gr

Additional Features

Inverter
Yes

Inverter


New technology welding. Very good in terms of performance, durability, and weight, but with a high cost of repair in case of damage. They have automation for better and safer work. If connected to a generator, it is recommended to choose one with 8kVA or more.
IGBT
No
VRD
Yes

VRD


It is a voltage reduction device used in welding machines to improve user safety.
with Voltage Stabilizer
No
for Generator with AVR
No

Features

Hot Start
Yes

Hot Start


Temporarily increases the current intensity at the moment of welding initiation.
Anti Stick
Yes

Anti Stick


Cuts off the current if the electrode sticks to the metal, to prevent it from burning.
Arc Force
Yes

Arc Force


Helps in the stability of the arc during welding.
2T Operation
No
4T Mode
No
Spot Function
No
Pulsed
No

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Description & Specifications

ADVANCE 227 XT MV/PFC VRD Inverter Welding Machine 200A TIG

Description

  • LCD DISPLAY: Modern electronic screen for guaranteed visibility in low light conditions.
  • Use of long extension (250 meters).
  • MULTIVOLTAGE: Flexible use with any variable voltage in a wide range (100 / 120V, 180V, 200V, 220 / 240V).
  • VRD: Improved safety during welding operations in wet environments (mines, shipyards, etc.).
  • Energy-efficient: Low power consumption.
  • HOT START IGNITION: Additional electrical power for smooth welding start.
  • ANTI-STICK: Stops welding current if the electrode sticks to the material.
  • ARC-FORCE: Automatic current calibration during welding for perfect seam.
  • TIG – LIFT: For maximum TIG welding quality.
  • Compact and lightweight.
  • Thermostatic.
  • Overvoltage-undervoltage protection, overcurrent protection.
  • Generator protection (± 15%).
  • Complete with MMA welding accessories and aluminum carrying case.

Manufacturer

Manufacturer Details

Warnings & Safety Information

Dimensions

Type
TIG, MMA

Type

TIG

Slow welding for detailed work on aluminum and stainless steel, mainly. Requires experience and connection to an external gas cylinder. Does not create "spatters".

MMA

Creates thick and strong bonds without the need for external gas supply, making it ideal for out-of-lab welding.
Welding Current (max)
200 A

Welding Current (max): 200


Suitable for professional use on thick metals, such as steel or cast iron constructions.
Operation Cycle (max Ampere)
30 %

Operation Cycle (max Ampere)

The Duty Cycle is the portion of a ten-minute period that a welding machine can operate continuously at maximum Amperes before it needs to stop and cool down.

2.

For example, a welding machine with a maximum Amperage of 200 A and a Duty Cycle of 30% can operate continuously at 200 A for 3 minutes before it needs to stop.
Supply Voltage
240 V

Supply Voltage: 240


It is the supply voltage that the machine requires from the electrical grid.
Weight
6200 gr

Additional Features

Inverter
Yes

Inverter


New technology welding. Very good in terms of performance, durability, and weight, but with a high cost of repair in case of damage. They have automation for better and safer work. If connected to a generator, it is recommended to choose one with 8kVA or more.
IGBT
No
VRD
Yes

VRD


It is a voltage reduction device used in welding machines to improve user safety.
with Voltage Stabilizer
No
for Generator with AVR
No

Features

Hot Start
Yes

Hot Start


Temporarily increases the current intensity at the moment of welding initiation.
Anti Stick
Yes

Anti Stick


Cuts off the current if the electrode sticks to the metal, to prevent it from burning.
Arc Force
Yes

Arc Force


Helps in the stability of the arc during welding.
2T Operation
No
4T Mode
No
Spot Function
No
Pulsed
No

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
