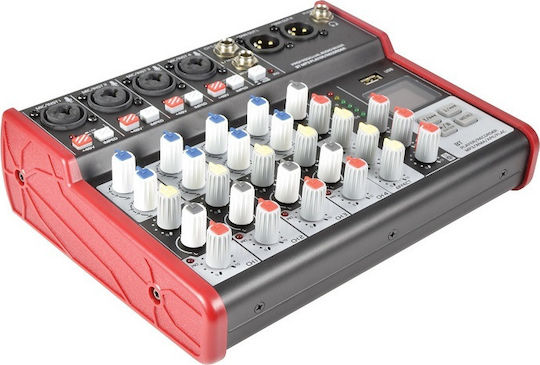

The Citronic CSM-6 analogue mixer combines four mono channels with a stereo line input. The mono channels feature XLR/Jack combination inputs for a microphone or instrument, High/Low EQ and Pan controls, and digital delay control. The built-in USB player and recorder supports playback of MP3, WMA, APE and FLAC files and MP3 recording, while Bluetooth 2.1 + EDR enables wireless connection to a smartphone.

+48 V phantom power can be activated separately for the XLR inputs. Outputs are provided via two balanced XLR connections, Left and Right, and the mixer comes with a DC power supply.

• Type: Analogue
• Channels: 4 mono and 1 stereo
• Inputs: 4 XLR/Jack combination inputs and stereo Jack input
• Bluetooth: 2.1 + EDR
• USB playback: MP3, WMA, APE, FLAC
• USB recording: MP3, 48 kHz, 128 kB/s
• Phantom power: +48 V, separately activated for the XLR inputs
• Effects: Digital delay
• EQ: High/Low, ±15 dB at 80 Hz and 12 kHz
• Outputs: 2 balanced XLR, Left and Right
• Frequency response: 20 Hz–20 kHz (±0.5 dB)
• THD+N: <0.03% at 1 kHz
• Dynamic range: 102 dB
• Stereo channel separation: 92 dB
• Maximum output level: 3 V RMS
• Maximum power consumption: 5 W

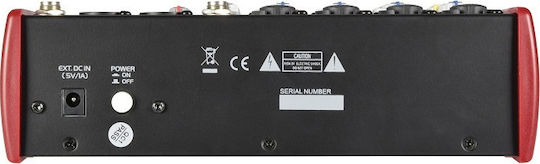

• Power supply: 5 V DC, 1 A
• Dimensions: 220 × 165 × 66 mm
• Weight: 1.17 kg
• Package contents: DC power supply
