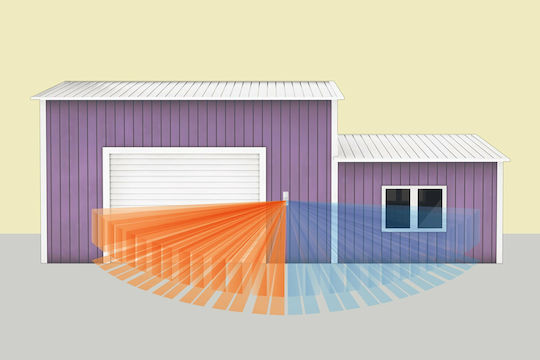

The Optex WXI-R wireless motion sensor uses infrared detection and covers a 180° angle with 12 detection zones. Its range extends up to 12 m, while the distance and sensitivity can be adjusted separately for each of the two 90° areas. It is wall-mounted at a height of 0.8–1.2 m.
It features SMDA logic to prevent false alarms, an automatic temperature compensation circuit, and two alarm outputs, one for each area. The detection speed is 0.3–2 m/s, and the sensitivity is 2 °C at 0.6 m/s.
- Detection type: Infrared
- Connection: Wireless
- Range: 12 m
- Detection angle: 180°
- Detection zones: 12
- Detection areas: 2 × 90°
- Installation height: 0.8–1.2 m
- Detection speed: 0.3–2 m/s
- Sensitivity: 2 °C at 0.6 m/s
- Logic: SMDA
- Settings: Distance and sensitivity for each area
- Alarm outputs: 2
- Output type: NO/NC
- Operating voltage: 3–3.6 V DC
- Standby current: 15 μA
- Protection rating: IP55
- Operating temperature: -30 to 60 °C
- Dimensions: 81.5 × 200 × 119.2 mm
Specifications
- Detection Type
- Infrared
- Scope
- 12 m
- Connector
- Wireless
- Battery
- No
Additional Features
- Antimasking
- No
- Tamper
- No
- Curtain
- No
- Placement
- Wall
- Recessed
- No
- PET
- No
- Built-in Camera
- No
