Optex Wireless Infrared Curtain Motion Sensor Scope 12m
Motion Sensors

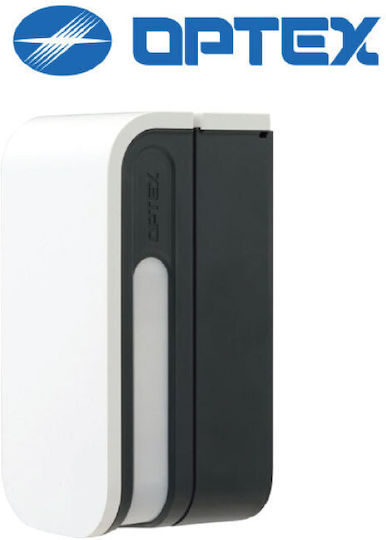

Optex Wireless Infrared Curtain Motion Sensor Scope 12m

The Optex BXS-R-W wireless infrared motion sensor detects movement in a curtain pattern, with a range of 12 m to the left and 12 m to the right. Both beams on each side must detect movement to...

The Optex BXS-R-W wireless infrared motion sensor detects movement in a curtain pattern, with a range of 12 m to the left and 12 m to the right. Both beams on each side must detect movement to activate the output. The detection distance, sensitivity and alarm output can be adjusted independently for each side.

The sensor is wall-mounted at a height of 0.8–...

See full description See full description

Top specs

  • Login

    Wireless

    It connects wirelessly via a wireless communication protocol to the installation system. It is powered by a battery.

  • Detection Type

    Infrared

    Detects motion by sensing changes in infrared radiation (heat) emitted by humans or animals.

  • Range

    The range refers to the maximum distance in meters within which it can detect motion.

  • Protection Certification

    IP55

    Suitable for outdoor areas with light rain. Provides limited protection against dust and withstands light rain or water splashes, ideal for patios or under shelters.

  • Curtain

    With a narrow detection angle that allows monitoring of a specific area (windows, doors, narrow passages) and prevents false alarms from surrounding movement.

    1

  • Batteries

    The type of compatible battery that powers the sensor
  • See all
176 00 €
Delivery by Wed, 11 Nov
14,00 €   shipping cost
Sent from Greece
From Dcs 4.8 (4)
4.8 (4 reviews)
Greece
20+ pieces
See Household Sensors & Alarms on the page of Dcs

Shop selection criteria

Why do we recommend buying from this shop?

We don’t only look at the price. We weigh different factors to find an offer that combines a good price, fast delivery and a reliable purchase.

  • Product price

    We calculate the total price you will pay and any discounts available from the shop.

  • Shipping & delivery time

    We check how quickly the product can be shipped and when you will receive it, based on your address.

  • Shop reliability

    We look at how often shops complete their orders successfully and how consistently they serve their customers.

  • Official reseller

    Where available, we take into account whether the shop is an official reseller of the brand.

Learn more about invoicing
Review the product
Product report

Description

Description

The Optex BXS-R-W wireless infrared motion sensor detects movement in a curtain pattern, with a range of 12 m to the left and 12 m to the right. Both beams on each side must detect movement to activate the output. The detection distance, sensitivity and alarm output can be adjusted independently for each side.

The sensor is wall-mounted at a height of 0.8–1.2 m and features an automatic temperature compensation circuit and rear tamper protection (Back Tamper). An LED indicates an alarm.

  • Detection type: Infrared
  • Range: 12 m per side
  • Coverage pattern: Curtain
  • Beams: 2 per side
  • Adjustable detection distances: 2.5 m, 3.5 m, 6 m, 8.5 m and 12 m
  • Detection speed: 0.3–2.0 m/s
  • Installation: Wall-mounted at a height of 0.8–1.2 m
  • Connection: Wireless
  • Power supply: 3–9 V DC
  • Standby consumption: 15 μA at 3 V DC
  • Alarm outputs: 2, NO/NC
  • Alarm indication: LED
  • Tamper protection: Rear (Back Tamper)
  • Ingress protection rating: IP55
  • Operating temperature: -30 to 60 °C
  • Dimensions: 199.7 × 92.8 × 52.7 mm
  • Colour: White

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Specifications

Detection Type
Infrared

Detection Type

Infrared

Detects motion by sensing changes in infrared radiation (heat) emitted by humans or animals.
Protection Certification
IP55

Protection Certification

IP55

Suitable for outdoor areas with light rain. Provides limited protection against dust and withstands light rain or water splashes, ideal for patios or under shelters.
Scope
12 m

Scope

The range refers to the maximum distance in meters within which it can detect motion.
Connector
Wireless

Connector

Wireless

It connects wirelessly via a wireless communication protocol to the installation system. It is powered by a battery.
Battery
No

Battery

Powered by battery.
Battery Type
9V

Battery Type

The type of compatible battery that powers the sensor

Additional Features

Antimasking
No

Antimasking

Function that detects any malicious interference, covering or blocking of the lens and automatically activates the alarm.
Tamper
Yes

Tamper

Refers to protection against attempts to tamper with the device. For example, if someone tries to open the sensor's casing or remove it from its position, the sensor will send an alarm signal.
Curtain
Yes

Curtain

With a narrow detection angle that allows monitoring of a specific area (windows, doors, narrow passages) and prevents false alarms from surrounding movement.
Placement
Wall
Recessed
No
PET
No

PET

Motion sensors with this technology are designed to "ignore" the movement of small animals, such as dogs and cats, thus preventing false alarms.
Built-in Camera
No

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Description & Specifications

The Optex BXS-R-W wireless infrared motion sensor detects movement in a curtain pattern, with a range of 12 m to the left and 12 m to the right. Both beams on each side must detect movement to activate the output. The detection distance, sensitivity and alarm output can be adjusted independently for each side.

The sensor is wall-mounted at a height of 0.8–1.2 m and features an automatic temperature compensation circuit and rear tamper protection (Back Tamper). An LED indicates an alarm.

  • Detection type: Infrared
  • Range: 12 m per side
  • Coverage pattern: Curtain
  • Beams: 2 per side
  • Adjustable detection distances: 2.5 m, 3.5 m, 6 m, 8.5 m and 12 m
  • Detection speed: 0.3–2.0 m/s
  • Installation: Wall-mounted at a height of 0.8–1.2 m
  • Connection: Wireless
  • Power supply: 3–9 V DC
  • Standby consumption: 15 μA at 3 V DC
  • Alarm outputs: 2, NO/NC
  • Alarm indication: LED
  • Tamper protection: Rear (Back Tamper)
  • Ingress protection rating: IP55
  • Operating temperature: -30 to 60 °C
  • Dimensions: 199.7 × 92.8 × 52.7 mm
  • Colour: White

Manufacturer

Manufacturer Details

Warnings & Safety Information

Specifications

Detection Type
Infrared

Detection Type

Infrared

Detects motion by sensing changes in infrared radiation (heat) emitted by humans or animals.
Protection Certification
IP55

Protection Certification

IP55

Suitable for outdoor areas with light rain. Provides limited protection against dust and withstands light rain or water splashes, ideal for patios or under shelters.
Scope
12 m

Scope

The range refers to the maximum distance in meters within which it can detect motion.
Connector
Wireless

Connector

Wireless

It connects wirelessly via a wireless communication protocol to the installation system. It is powered by a battery.
Battery
No

Battery

Powered by battery.
Battery Type
9V

Battery Type

The type of compatible battery that powers the sensor

Additional Features

Antimasking
No

Antimasking

Function that detects any malicious interference, covering or blocking of the lens and automatically activates the alarm.
Tamper
Yes

Tamper

Refers to protection against attempts to tamper with the device. For example, if someone tries to open the sensor's casing or remove it from its position, the sensor will send an alarm signal.
Curtain
Yes

Curtain

With a narrow detection angle that allows monitoring of a specific area (windows, doors, narrow passages) and prevents false alarms from surrounding movement.
Placement
Wall
Recessed
No
PET
No

PET

Motion sensors with this technology are designed to "ignore" the movement of small animals, such as dogs and cats, thus preventing false alarms.
Built-in Camera
No

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
