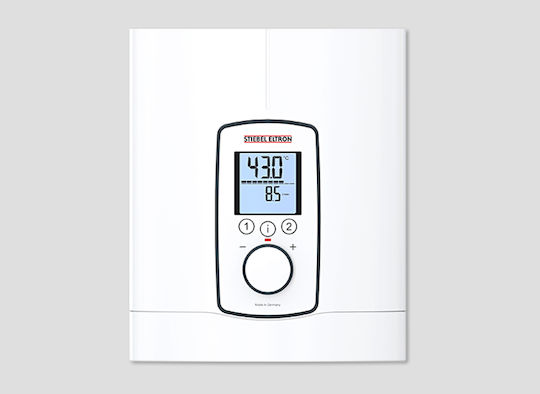

The Stiebel Eltron DHE 18/21/24 instantaneous water heater heats water on demand without a storage tank and supplies one or more outlets. Its electronic power control with 4i technology compensates for pressure fluctuations and precisely regulates the water temperature. Inverter operation adjusts the power to match demand, and the unit can also operate with preheated water.
The temperature is adjustable from 20 to 60 °C using a rotary control, in 0.5 °C increments. The backlit display shows the set temperature, energy and water consumption, flow rate, operating time, and unit status. Features include ECO mode, memory for two preferred temperatures, a shower program, automatic bathtub filling, temperature limiting, and a settings lock. It can operate with a water flow rate as low as 3 l/min and is suitable for use with standard taps.
- Power supply: Electric, three-phase
- Maximum power: 24 kW
- Maximum flow rate: 12.2 l/min
- Maximum temperature: 70 °C
- Temperature setting range: 20–60 °C
- Installation: Central, wall-mounted
- Technology: Inverter, 4i
- Display: Multifunctional, backlit
- Features: ECO mode, shower program, automatic bathtub filling, memory for two temperatures, temperature limiting, settings lock
- Minimum operating flow rate: 3 l/min
- Water supply pressure: 2–10 bar
- Water protection rating: IP 25
- Protection: Overheating and scald protection, child safety, multi-stage electronic safety system with air bubble detection
- Dimensions: 46.6 × 25.5 × 11.6 cm
- Product Number
- SE092023
Product Details
- Power Source
- Three-phase electric
- Maximum Power
- 24 kW
- Maximum Flow Rate
- 12.2 lt/min
- Maximum Temperature
- 70 °C
- Temperature Setting
- Degrees °C
- Placement
- Central Installation
- Wall Mounted
- Yes
- Inverter
- No
- Remote Control
- No
Energy Label
- Energy Class
- -
Dimensions
- Height
- 46.6 cm
- Width
- 25.5 cm
- Length
- 11.6 cm
Important information
Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
