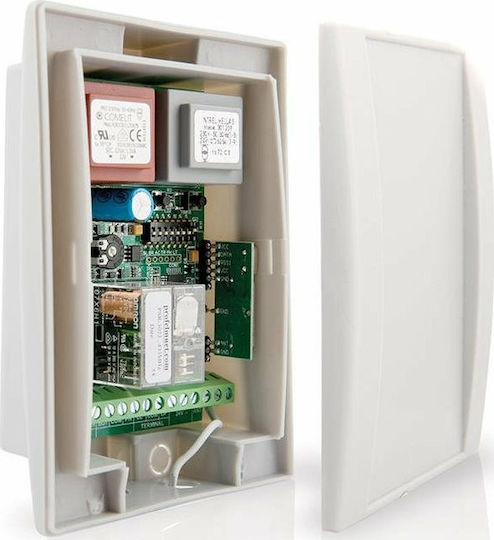

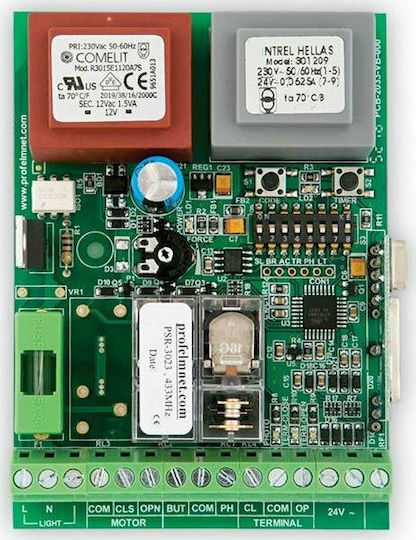

The Profelmnet control panel for sliding door motors supports motors with a power rating of up to 1200 W and operates with rolling-code remote controls at a frequency of 433.92 MHz. It can store up to 300 remote controls and features LED indicators for activated functions.

Its functions include separate limit switches for the motor, an input for an external push button, and a photocell output with a separate 24 VAC power supply. It provides motor force and travel time adjustment, while the 230 VAC lighting output is active while the door is moving.

• Power supply type: Single-phase
• Operating voltage: 110/230 VAC
• Motor power: Up to 1200 W
• Frequency: 433.92 MHz
• Remote controls: Up to 300 rolling-code remotes
• Operating indicators: LED indicator lights
• Limit switches: Separate switches for the motor
• External push-button input: Available
• Photocell output: With a separate 24 VAC power supply
• Motor force adjustment: Available
• Lighting output: 230 VAC, up to 25 W
• Automatic closing: Dual
• Travel time: Adjustable in one-second increments from 1 to 180 seconds
• Filters: Interference suppression
• Operating temperature: From -20 °C to 60 °C
• Enclosure material: ABS plastic
• Enclosure protection: Sealed
• Enclosure dimensions: 111 × 82 × 30 mm
