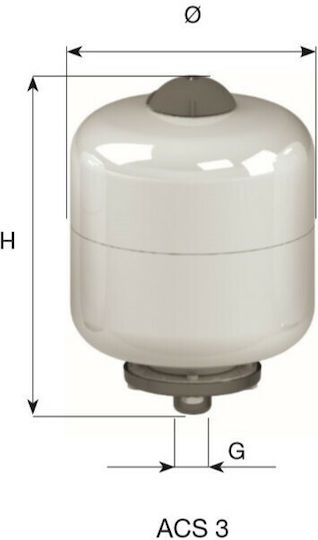

Cimm ACS 3 Vertical Heating Expansion Tank 3lt
Expansion Tanks

Cimm ACS 3 Vertical Heating Expansion Tank 3lt Code: 510342

ACS 3l domestic hot water tank.

  • Manufacturer: Cimm
  • Application: Utility hot and cold water supply installations, water pressure boosting systems, cooling installations.
  • Maximum operating pressure: 10...

ACS 3l domestic hot water tank.

  • Manufacturer: Cimm
  • Application: Utility hot and cold water supply installations, water pressure boosting systems, cooling installations.
  • Maximum operating pressure: 10 bar
  • Factory fill pressure: 2.5 bar
  • Operating temperature: -10°C to +100°C
  • External finish color: white RAL 9010
  • Membrane type: BUTYL
  • Collar: galvanized steel...
See full description See full description

Learn more about invoicing
Product report

Description

Description

ACS 3l domestic hot water tank.

  • Manufacturer: Cimm
  • Application: Utility hot and cold water supply installations, water pressure boosting systems, cooling installations.
  • Maximum operating pressure: 10 bar
  • Factory fill pressure: 2.5 bar
  • Operating temperature: -10°C to +100°C
  • External finish color: white RAL 9010
  • Membrane type: BUTYL
  • Collar: galvanized steel with PTFE coating
  • Water connection: Ø 1/2'' M GAS
  • Working pressure: 3.5 bar
  • Capacity: 3 l
  • With wall mount connection: Yes
  • Vertical orientation: Yes
  • Horizontal orientation: Yes
  • With feet: Yes
  • Nominal expansion connection diameter: 3/4 inch (20)
  • External expansion connection diameter: 20 mm
  • Connection type: Male cylindrical gas thread (BSPP)
  • With replaceable diaphragm: Yes
  • Diameter: 170 mm
  • Height: 245 mm
  • Weight: 1.56 kg

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Product Number
510342

Specifications

Usage
Heating

Usage

Heating
Closed heating circuit tank.

Designed for central or autonomous heating systems (boilers, radiators). It withstands temperatures up to 90-99 °C and is intended exclusively for non-potable water, as its internal structure does not have antibacterial protection.
Capacity
3 lt
Placement
Vertical
Thread
3/4 "
Membrane Type
Replaceable Membrane

Features

Wall-mounted
Yes
with Stand
No
Maximum Pressure
10 bar

Dimensions

Diameter
12 cm
Height
24.5 cm

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications
