Transceivers / SFP Modules

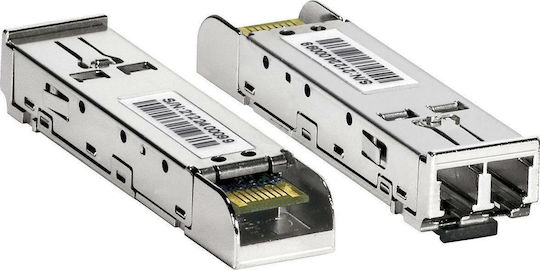

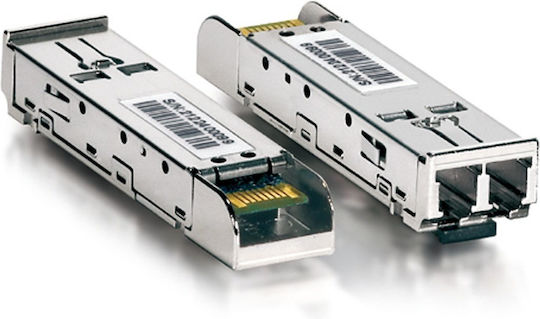

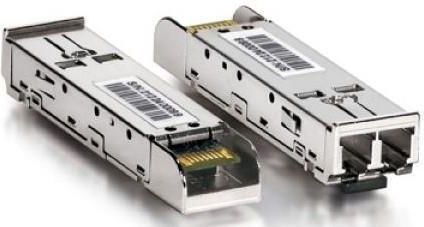

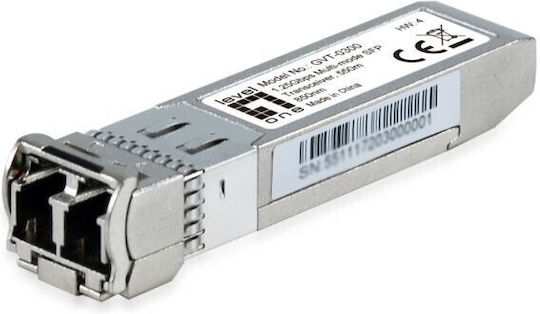

Level One Transceiver GBIC GVT-0300 1Gbps 1τμχ

The Level One GVT-0300 transceiver combines a transmitter and receiver to connect devices to fiber-optic networks. It supports multimode fiber, an LC duplex connector, DDM, and hot-plug functionality....

The Level One GVT-0300 transceiver combines a transmitter and receiver to connect devices to fiber-optic networks. It supports multimode fiber, an LC duplex connector, DDM, and hot-plug functionality.

  • Type: GBIC
  • Data rate: 1 Gbps
  • Range: Up to 550 m
  • Wavelength: 850 nm
  • Fiber type: Multimode
  • Power supply: 3.3 V
  • Maximum voltage: 6 V
  • Maximum current: 0.3 A
  • ...
See full description See full description
42 00 €
Delivery Fri, 04 Dec - Thu, 10 Dec
14,00 €   shipping cost
Sent from Greece
From PriveShop 4.8 (13)

Learn more about invoicing

Description

Description

The Level One GVT-0300 transceiver combines a transmitter and receiver to connect devices to fiber-optic networks. It supports multimode fiber, an LC duplex connector, DDM, and hot-plug functionality.

  • Type: GBIC
  • Data rate: 1 Gbps
  • Range: Up to 550 m
  • Wavelength: 850 nm
  • Fiber type: Multimode
  • Power supply: 3.3 V
  • Maximum voltage: 6 V
  • Maximum current: 0.3 A
  • Receiver sensitivity: -20 dBm
  • Transmit optical power: -10 to -3 dBm
  • Operating temperature: 0 °C to 70 °C
  • Operating humidity: 5% RH to 85% RH
  • Storage temperature: -40 °C to 85 °C
  • Storage humidity: 5% RH to 85% RH
  • Dimensions: 56.4 × 13.4 × 10.97 mm
  • Weight: 0.015 kg
  • Certifications: CE, CB, FDA, FCC, TUV, UL, RoHS
  • Quantity: 1

Manufacturer

See full description

Specifications

Specifications

Form Factor
GBIC
Data Transfer Speed
1 Gbps
Transmission Media Type
-
Pieces
1 pcs

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Description & Specifications

The Level One GVT-0300 transceiver combines a transmitter and receiver to connect devices to fiber-optic networks. It supports multimode fiber, an LC duplex connector, DDM, and hot-plug functionality.

  • Type: GBIC
  • Data rate: 1 Gbps
  • Range: Up to 550 m
  • Wavelength: 850 nm
  • Fiber type: Multimode
  • Power supply: 3.3 V
  • Maximum voltage: 6 V
  • Maximum current: 0.3 A
  • Receiver sensitivity: -20 dBm
  • Transmit optical power: -10 to -3 dBm
  • Operating temperature: 0 °C to 70 °C
  • Operating humidity: 5% RH to 85% RH
  • Storage temperature: -40 °C to 85 °C
  • Storage humidity: 5% RH to 85% RH
  • Dimensions: 56.4 × 13.4 × 10.97 mm
  • Weight: 0.015 kg
  • Certifications: CE, CB, FDA, FCC, TUV, UL, RoHS
  • Quantity: 1

Manufacturer

Form Factor
GBIC
Data Transfer Speed
1 Gbps
Transmission Media Type
-
Pieces
1 pcs

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
