The Geberit Sigma Kombifix cistern is concealed and designed for a wall-hung toilet. It is installed in a single-brick wall. It is operated from the front, and the water connection is at the top left. The dual-flush system is factory-set to 6/3 l, and the cistern is fully insulated against condensation.
The water supply can be connected to an Aquaclean toilet with a 4-point support frame using adapter 359.144.11.1 and wall-hung toilet connection set 152.404.46.1. The package includes a water supply connection with a ½″ angle valve, a wall-hung toilet connection set, a 90° drainage bend, M12 mounting bolts with protective covers, protective caps, a protective sleeve and a 90/100 drainage adapter for PVC connection.
- Installation: Concealed
- Shape: Rectangular
- Material: Plastic
- Pressure: Low
- Wall type: Single-brick wall
- Flush: Dual flush
- Full flush: 4 l, 4.5 l, 6 l or 7.5 l
- Reduced flush: 2–4 l
- Factory flush setting: 6/3 l
- Operation: Front-operated
- Water connection: Top left
- Insulation: Full, against condensation

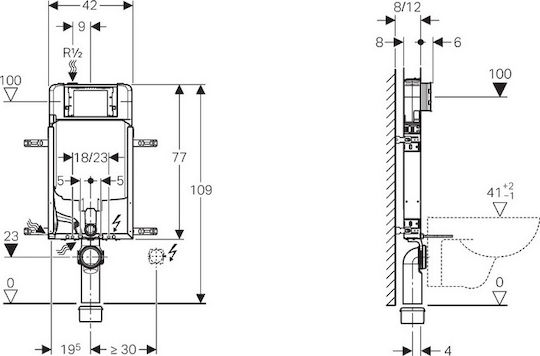

- Length: 50.5 cm
- Depth: 8 cm
- Height: 109 cm
- Compatibility: Geberit Sigma 01, Sigma 10, Sigma 20, Sigma 21, Sigma 30 Dual Flush, Sigma 30 stop and go (1 button), Sigma 50, Sigma 60, Sigma 70 8cm, Sigma 70 (115.622.**.*), Sigma 80 8cm and Mambo flush plates; Type 01 pneumatic controls 116.041.xx.1

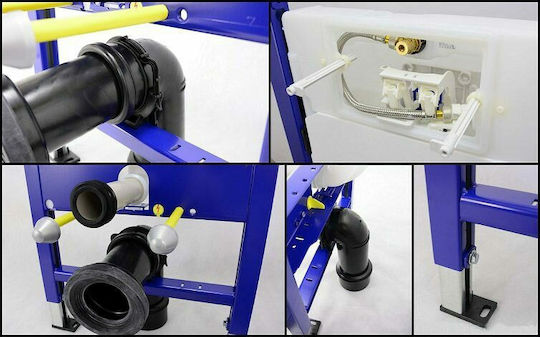

- Package contents: Water supply connection with a ½″ angle valve, wall-hung toilet connection set, 90° drainage bend, M12 mounting bolts with protective covers, protective caps, protective sleeve and a 90/100 drainage adapter for PVC connection
- Product Number
- 110.794.00.1
Specifications
- Placement
- Built-in
- Shape
- Rectangular
- Pressure
- Low
- Material
- Plastic
- Double Flow
- Yes
- Built-ins Installation
- Single Brick
- Seating
- No
Dimensions
- Height
- 109 cm
- Length
- 50.5 cm
- Length
- 8 cm
