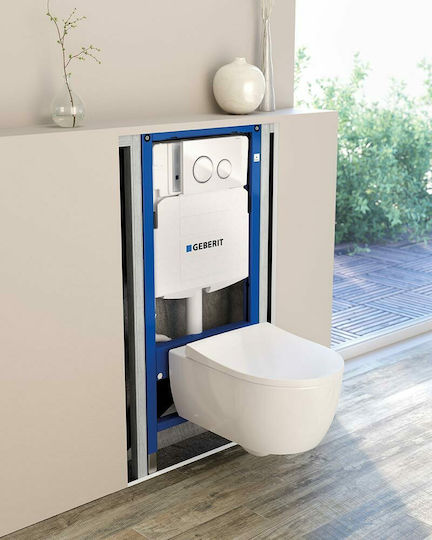

The Geberit Duofix 111.300.00.5 concealed cistern is designed for installation in a drywall wall and connection to a wall-hung toilet. Front actuation supports dual flush, with a factory setting of 6/3 L and adjustable flush volumes.
The self-supporting frame has galvanized, adjustable legs for a floor build-up height of 0–20 cm. The water supply can be connected at the center, from the rear or from above, while the protective box covers the access opening.
- Installation: Concealed in drywall
- Shape: Rectangular
- Material: Plastic
- Pressure: Low
- Flush: Dual flush, with a factory setting of 6/3 L
- Full flush: 4.5 L, 6 L or 7.5 L
- Reduced flush: 3 L or 4 L

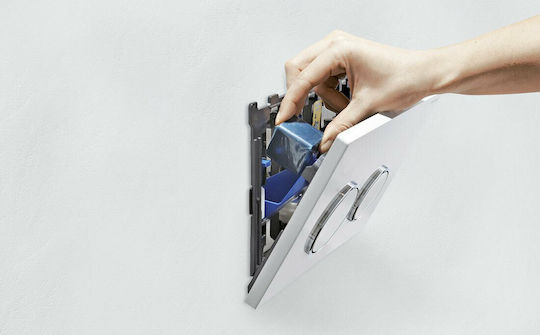

- Actuation: Front
- Compatibility: Sigma 01, Sigma 10, Sigma 20, Sigma 30 and Sigma 50 flush plates
- Frame: Self-supporting, powder-coated

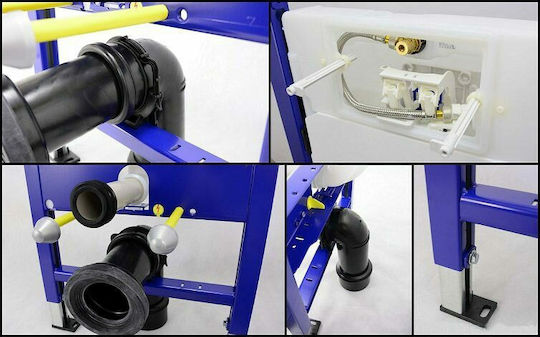

- Support legs: Galvanized and adjustable for a floor build-up height of 0–20 cm
- Water supply connection: At the center, from the rear or from above
- Toilet connection: Connection set for a wall-hung toilet, M12 bolts with a fixing distance of 180 or 230 mm
- Drain: 90 mm diameter elbow and 90/110 mm adapter

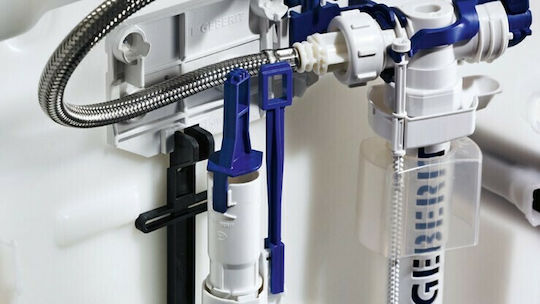

- Valve: ½″ angle valve
- Length: 50 cm
- Depth: 12 cm
- Height: 112 cm
- Product Number
- 111.300.00.5
Specifications
- Placement
- Built-in
- Shape
- Rectangular
- Pressure
- Low
- Material
- Plastic
- Double Flow
- Yes
- Built-ins Installation
- for Drywall
- Seating
- No
Dimensions
- Height
- 112 cm
- Length
- 50 cm
- Length
- 12 cm
