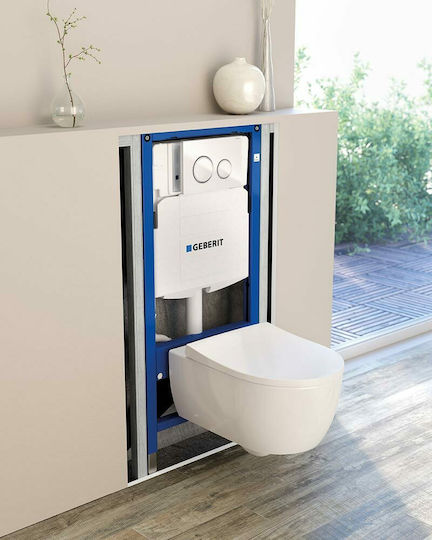

The Geberit Sigma 111.796.00.1 concealed cistern is designed for installation in drywall and features a support frame for a wall-hung toilet. It is operated from the front, while the dual-flush system allows the flush volume to be adjusted. The factory setting is 6/3 litres.
The self-supporting frame has four fixing points and adjustable galvanised feet for floor heights of 0–20 cm. The water supply can be connected centrally at the rear or from above, and the cistern is fully insulated against condensation.
- Installation: Concealed in drywall
- Shape: Rectangular
- Material: Plastic
- Use: For a wall-hung toilet
- Flush type: Dual flush
- Flush volume: 3–7.5 litres
- Factory flush setting: 6/3 litres

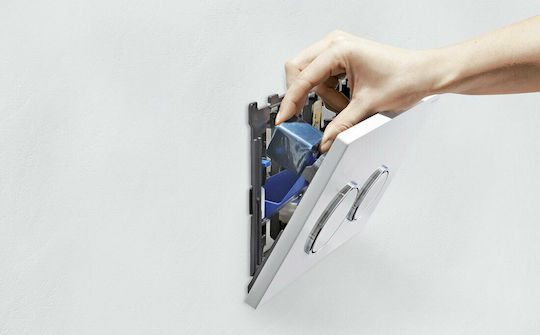

- Operation: From the front
- Compatible flush plates: Sigma 01, Sigma 10, Sigma 20, Sigma 30, Sigma 50
- Water supply connection: Centrally at the rear or from above

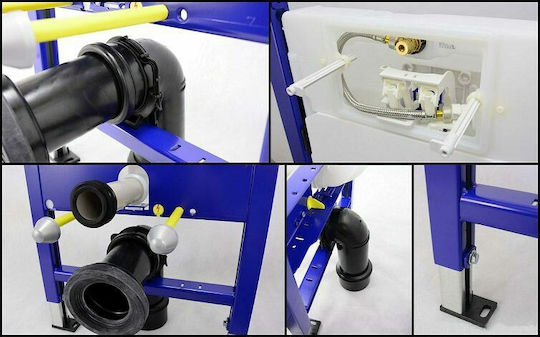

- Support frame: Self-supporting, with 4 fixing points
- Support feet: Adjustable, for floor heights of 0–20 cm
- Dimensions: Length 50 cm, depth 8 cm, height 114 cm
- Drain outlet: 90 mm
- Package contents: ½″ angle valve, wall-hung toilet connection set, 90 mm drain bend, 90/110 mm adapter, fixing materials
- Insulation: Full insulation against condensation
- Product Number
- 111.796.00.1
Specifications
- Placement
- Built-in
- Shape
- Rectangular
- Pressure
- Low
- Material
- Plastic
- Double Flow
- Yes
- Built-ins Installation
- for Drywall
- Seating
- No
Dimensions
- Height
- 114 cm
- Length
- 50 cm
- Length
- 8 cm
