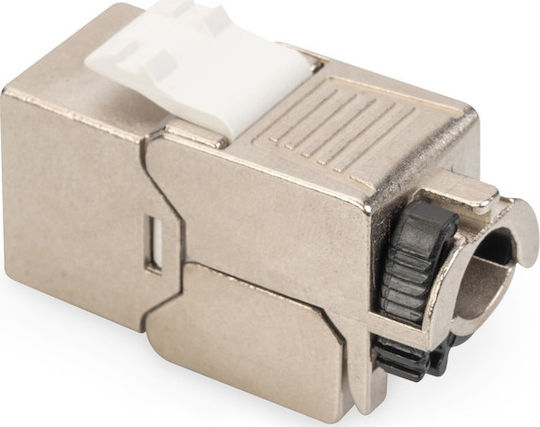

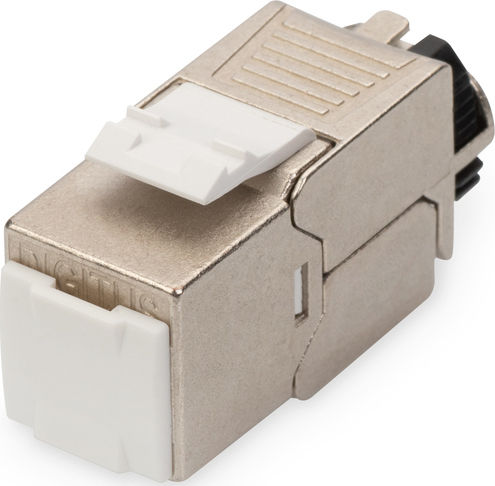

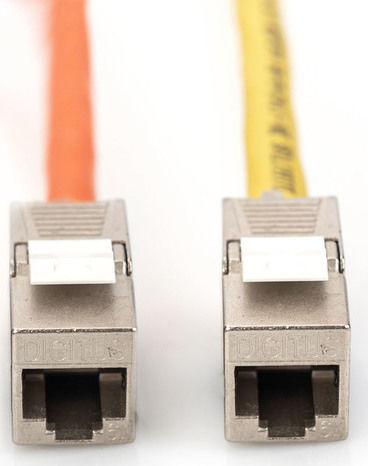

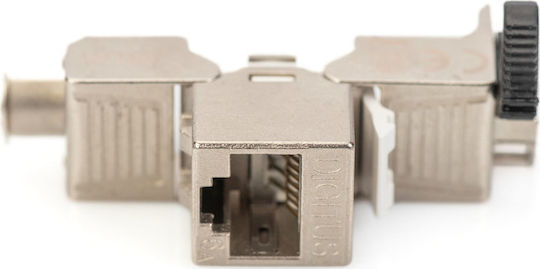

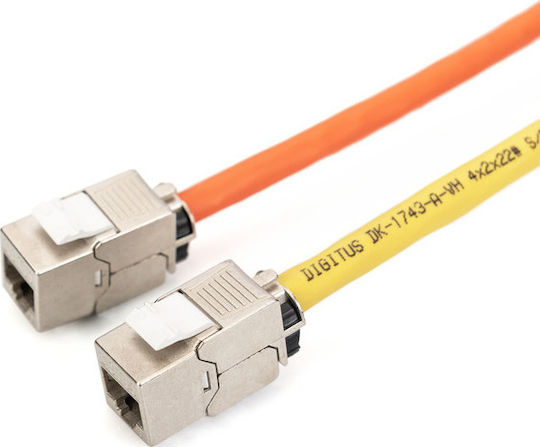

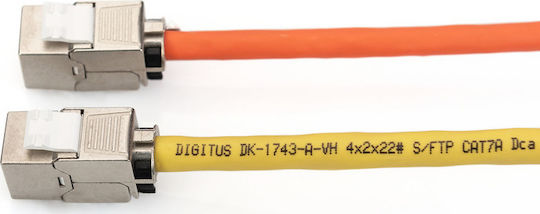

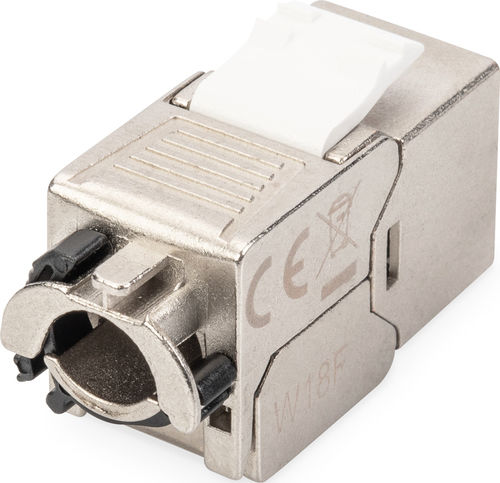

The Digitus DN-93617-24 shielded Keystone module set features 360° shielding contact and Cat.6a RJ45 8P8C ports for 10GBase-T networks up to 500 MHz. The modules support PoE, PoE+ and 4PPoE in accordance with IEEE 802.3 af/at/bt standards.

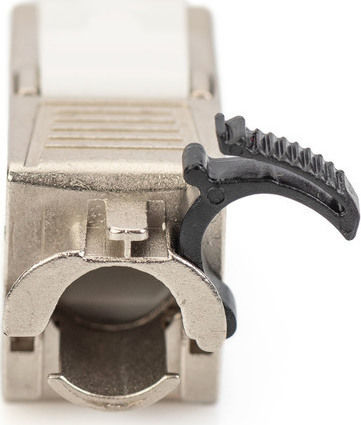

Installation is tool-free, with LSA terminals colour-coded according to EIA/TIA 568 A & B. The reclosable cable manager helps relieve strain and secure the cables, while the protective cover helps prevent dust from entering the RJ45 port. Its compact design allows installation in 1HE 483 mm (19″) panels and compatible modular junction boxes.
- Quantity: 24
- Port type: RJ45 8P8C
- Network category: Cat.6a
- Shielding: 360°
- Frequency: Up to 500 MHz
- Network standards: ISO/IEC 11801 3rd edition, EN 50173-1
- PoE support: IEEE 802.3 af/at/bt (PoE, PoE+ and 4PPoE)
- Installation method: Tool-free
- Terminal compatibility: LSA, EIA/TIA 568 A & B
- Housing: Die-cast zinc, nickel-plated
- Contact material: Phosphor bronze
- Contact plating: Nickel and 0.5 μm gold plating
- Insertion force: Up to 30 N, in accordance with IEC 60603-7-51
- Retention force: 7.7 kg between socket and plug
- Operating temperature: -20 °C to +70 °C
- Insertion cycles: ≥ 750
- Copper conductor diameter: AWG 26/7–22/1, stranded and solid
- Electrical strength: 1000 VDC (contact/contact), 1500 VDC (contact/ground)
- Dimensions: 21.0 × 14.5 × 34.5 mm (height × width × depth)
- Weight: 19.5 g
- Certification: GHMT
- Port Type
- RJ45
- Network Category
- Cat.6a
- Pieces
- 24 pcs
