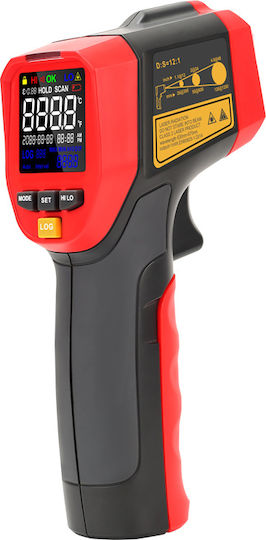

With dual lasers and a 12:1 distance-to-spot ratio, the Uni-T UT301DPLUS infrared thermometer measures temperatures without contact, from -32 °C to 600 °C. Adjustable emissivity covers values from 0.1 to 1.0 and stores 5 preset settings. The EBTN color display and MAX, MIN, AVG and DIFF measurement functions make it easy to monitor and compare readings.
The device features adjustable high- and low-temperature visual and audible alarms, as well as continuous measurement lock and automatic data hold. It stores up to 99 measurements and supports scheduled measurement. The package includes a 9 V battery, carrying case and user manual.
- Temperature range: -32 °C to 600 °C
- Distance-to-spot ratio: 12:1
- Accuracy: Above 0 °C: ±1.5 °C or ±1.5%; up to 0 °C: ±(1.5 °C + 0.1 °C/°C)
- Repeatability: 0.7 °C or 0.7%
- Response time: Up to 250 ms
- Emissivity: Adjustable from 0.1 to 1.0, with storage for 5 preset values
- Spectral response: 8–14 μm
- Measurement functions: MAX, MIN, AVG, DIFF and HOLD
- Alarms: Adjustable visual and audible high- and low-temperature alarms
- Measurement memory: Up to 99 measurements
- Display: EBTN color display, 30 × 30 mm
- Power supply: 9 V battery
- Indicators and functions: Low-battery indicator, automatic power-off, backlight, °C/°F selection and scheduled measurement
- Dimensions: 160 × 74 × 48 mm
- Weight: 204 g

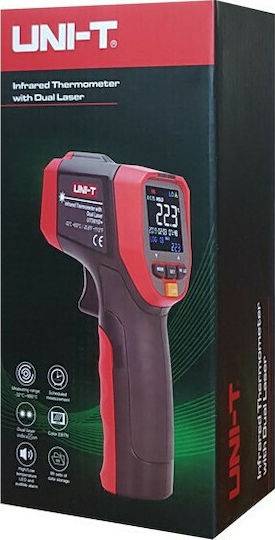

- Package contents: Thermometer, 9 V battery, carrying case and user manual
Specifications
- Distance to Target Ratio
- 12:1
Temperature
- Minimum
- -32 °C
- Maximum
- 600 °C
Important information
Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
