The Ledvance Panel Value LED panel features a square, recessed design for 60 × 60 cm grid ceilings. It is intended to replace fluorescent light fittings or for new installations. The light-guiding plate, made from non-yellowing polystyrene, distributes light evenly without visible bright spots. The die-cast aluminium housing is 0.9 cm high. An external power supply is included and can be installed outside the suspended ceiling.

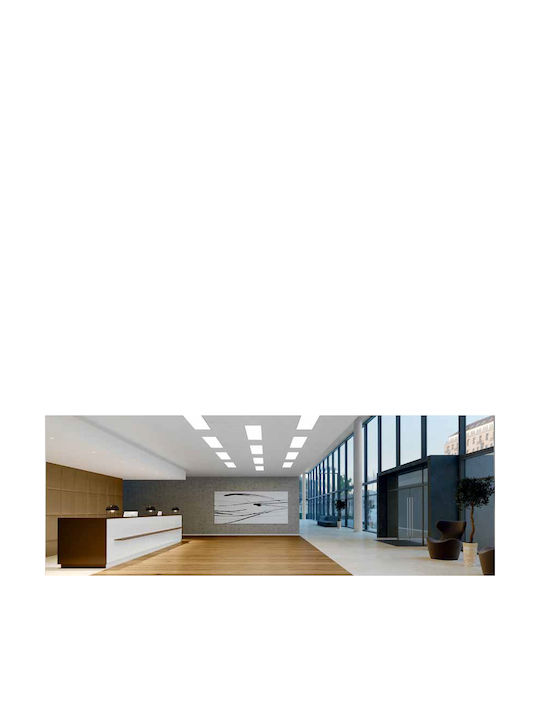

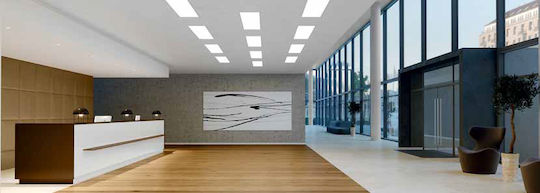

The panel is suitable for offices, meeting rooms, corridors and reception areas. The control unit can be accessed without opening the panel, making maintenance easier.
- Installation: Recessed
- Shape: Square

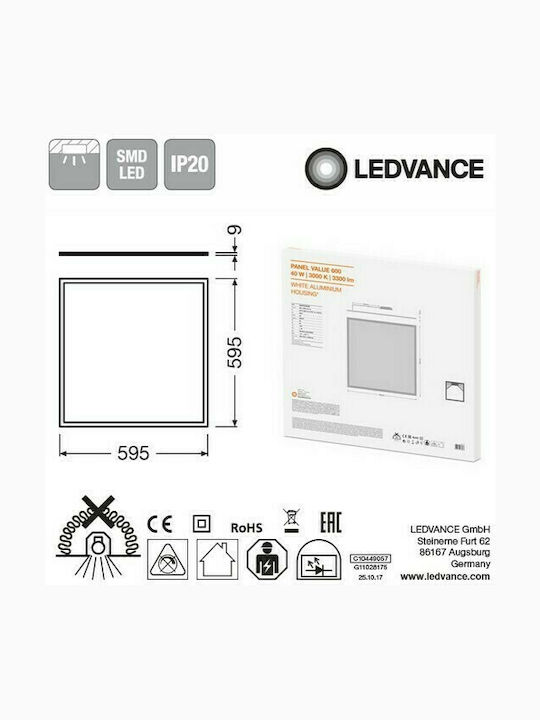

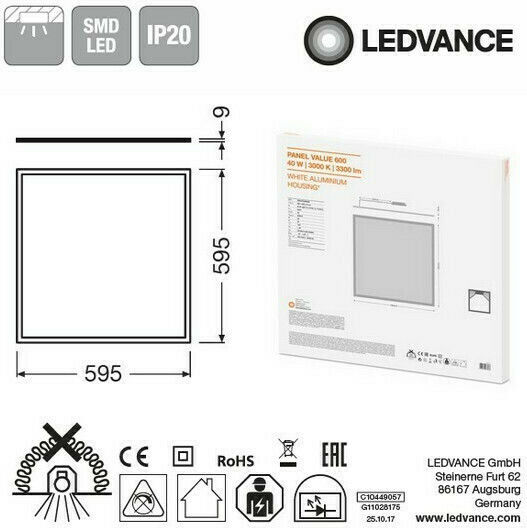

- Dimensions: 60 × 60 cm
- Height: 0.9 cm
- Power: 40 W
- Luminous flux: 3600 lm
- Light colour: Natural white
- Colour temperature: 4000 K
- Housing material: Die-cast aluminium
- Diffuser material: TP(B)-type polystyrene, made from non-yellowing material
- Protection rating: IP20
- Operating temperature: -10 to +40 °C
- Service life (L70/B50): Up to 50,000 hours at 25 °C
- Package contents: External power supply
Specifications
- Placement
- Recessed
- Shape
- Square
- Power
- 40 W
- Color Temperature
- 4000 K
- Light Colour
- Natural White
- Lumen
- 3600 lm
Dimensions
- Length
- 60 cm
- Length
- 60 cm
- Height
- 0.9 cm
