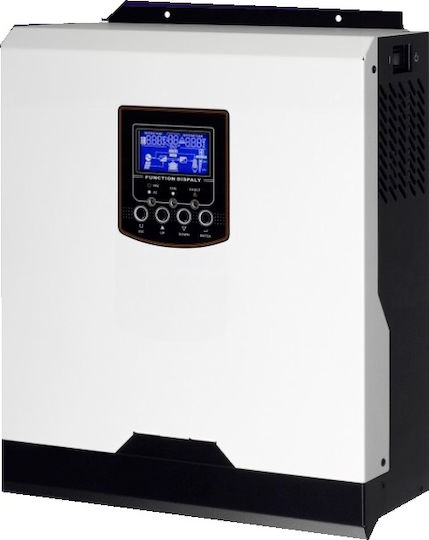

Hybrid inverter for standalone photovoltaic systems (EXPANDABLE)

Pure sine wave inverter for standalone photovoltaic systems, with multiple functions (all-in-one). It operates simultaneously as:

• Inverter (DC to AC 230V converter).
• Solar charger from photovoltaic panels.
• AC 230V charger from a generator or the grid.

Advantages:

• Powerful pure sine wave inverter at 5000W/5000VA with a maximum instantaneous power of 10000VA.
• Solar charger from photovoltaic panels 50A PWM.
• Charger from AC 230V grid or power generator (25A/60A).
• Graphic display with buttons and fully programmable functions.
• Suitable for all types of batteries (GEL, AGM, open type with liquid, sealed type, VRLA).
• Smart charging system, 3 stages (Bulk-Absorption-Floating) for optimal battery performance.
• Option to select from the screen menu a 4th charging stage (equalization) for open type lead-acid batteries (Flooded).
• Protection from deep discharges of the batteries.
• Short circuit and overload protection.
• Low self-consumption, less than.
• Efficiency: 90-93%.
• Also operates as a UPS with the built-in automatic transfer switch, which activates when the power goes out or when the batteries are empty.
• Software upgrade capability by connecting to a computer.

Included: technical brochure, user manual, warranty document in Greek, CD with software for computer connection, computer interface cable.

Certifications:

• CE
• CE-LVD
• CE-EMC
• EN 609501:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013
• EN 55032: 2015
• EN 55024: 2010+A1: 2015

*The charge controller is integrated into the inverter, no extra needed. ** Maximum power of photovoltaic panels 2400W.
