Technical Specifications:

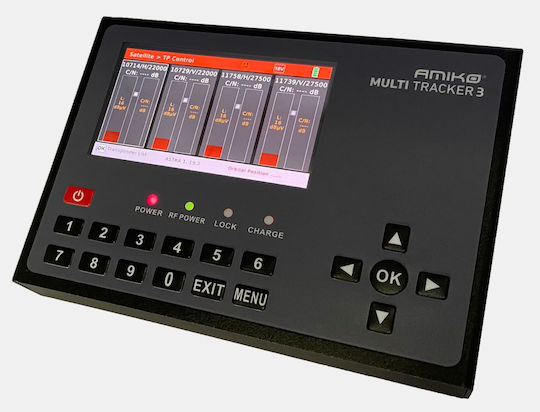

• 5-inch (12.7 CM) AMOLED color display.
• Support for DVB-S / S2 / DVB-T / T2 / DVB-C / C2
• Video decoding: MPEG4, MPEG4-AVC / H.264 and H.265 / HEVC High Tier @ Level4.1, MPEG2.
• Audio decoding: MPEG1, MPEG2 ISO / IEC 13818-3 LAYER I&II.
• LNB short circuit protection and indication.
• Extremely fast and accurate with high sensitivity.
• Database can be easily edited by the user.
• Audio signal lock alert.
• Updated USB connection for firmware, data logging, and screen recording.
• Power supply 100-240V / 50 / 60Hz 12V, 2000mA.
• 7.4V / 5000 mA lithium battery with fast charging.
• High-quality aluminum housing.

Additional Features:

• Receiver & Demodulation Satellite DVB-S / S2
• Power LEVEL, CBER, VBER (DVBS), LBER (DVBS2), and CNR display.
• Real-time Spectrum-Analyzer and transponder message detection.
• Constellation diagram.
• Azimuth and elevation angle calculation.
• Azimuth and altitude measurement.
• Operation display, dBm, CNR, BER, Modulation mode.
• Supported DisEqC1.0, DisEqC1.1, DisEqC1.2, USALS, SCD and SCR2.
• Automatic DiSEqC recognition for DisEqC1.0.
• Cable recognition in Quattro LNB.
• Automatic satellite recognition.
• LNB current and voltage display.
• Terrestrial DVB-T / T2: Power LEVEL, CBER, VBER (DVBT), LBER (DVBT2), and MER display.
• Formation spectrum analyzer.
• Signal recognition: DVB-T / T2 Automatic.
• Range display for multiple channels.
• Cable DVB-C / C2: Power LEVEL, CBER, PER (DVBC), LBER (DVBC2), and MER display.
• Tilt display.
• Fast charging.
