Diathermy Machines

Globus Italia Diacare 5000 Diathermy Machine Code: G3488

Portable device for all forms of TECAR therapy, with the capability of using capacitive and resistive electrodes.

See full description

Description

Description

General Characteristics

  • The use of capacitive electrodes is recommended for the treatment of muscle tissues and the resistive for the treatment of bones, tendons, ligaments, joints, and tissues with higher resistance to the passage of electric current
  • Energy transmission Capacitive & Resistive
  • Power: Capacitive: 200 W ac – 400 VA t.v, Resistive: 200 W ac – 400 VA t.v.
  • Frequency: Capacitive: 470 KHz, Resistive: 470 KHz
  • Color touch screen
  • >15 User protocols

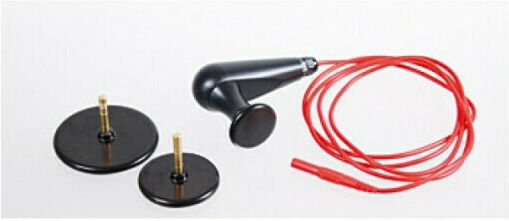

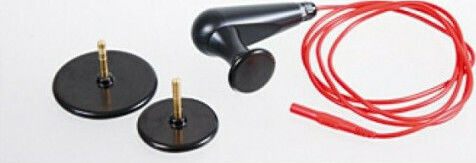

  • Capacitive electrode CAPTRODE with three heads 30-50-70mm Ø
  • Resistive electrode DUALTRODE with three heads 30-50-70mm Ø
  • Return electrode COUNTER-ELECTRODE
  • Electrode MONOTRODE: all-in-one electrode, bipolar that does not require the return plate (optional)

Technical Specifications

  • Power supply: 220 VAC, 50-60 Hz
  • Weight: 0.9 kg
  • Dimensions: 17 x 22 x 6 cm
  • Electrical safety: class II Type BF

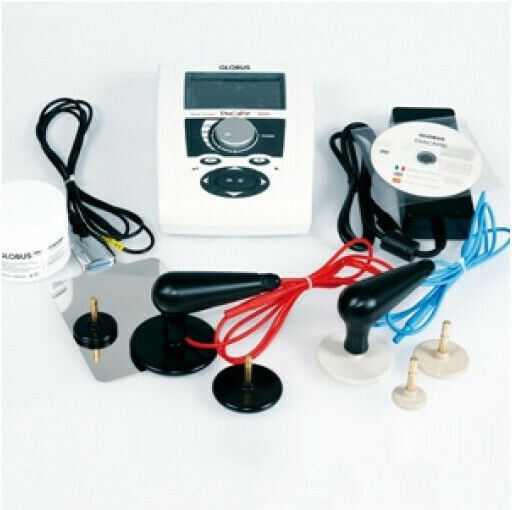

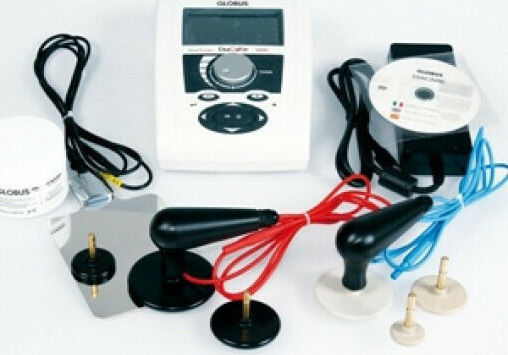

Includes

  • Carrying case
  • 1 Capacitive CapTrode handle with three heads 30-50-70mm Ø
  • 1 Resistive DualTrode handle with three heads 30-50-70mm Ø
  • 1 Counter electrode plate
  • Manual
  • Conductive cream

Manufacturer

See full description

Description

General Characteristics

  • The use of capacitive electrodes is recommended for the treatment of muscle tissues and the resistive for the treatment of bones, tendons, ligaments, joints, and tissues with higher resistance to the passage of electric current
  • Energy transmission Capacitive & Resistive
  • Power: Capacitive: 200 W ac – 400 VA t.v, Resistive: 200 W ac – 400 VA t.v.
  • Frequency: Capacitive: 470 KHz, Resistive: 470 KHz
  • Color touch screen
  • >15 User protocols
  • Capacitive electrode CAPTRODE with three heads 30-50-70mm Ø
  • Resistive electrode DUALTRODE with three heads 30-50-70mm Ø
  • Return electrode COUNTER-ELECTRODE
  • Electrode MONOTRODE: all-in-one electrode, bipolar that does not require the return plate (optional)

Technical Specifications

  • Power supply: 220 VAC, 50-60 Hz
  • Weight: 0.9 kg
  • Dimensions: 17 x 22 x 6 cm
  • Electrical safety: class II Type BF

Includes

  • Carrying case
  • 1 Capacitive CapTrode handle with three heads 30-50-70mm Ø
  • 1 Resistive DualTrode handle with three heads 30-50-70mm Ø
  • 1 Counter electrode plate
  • Manual
  • Conductive cream

Manufacturer

Globus Italia - Diathermy Machines Globus Italia
8.390,00 €
14,00 €   shipping cost
