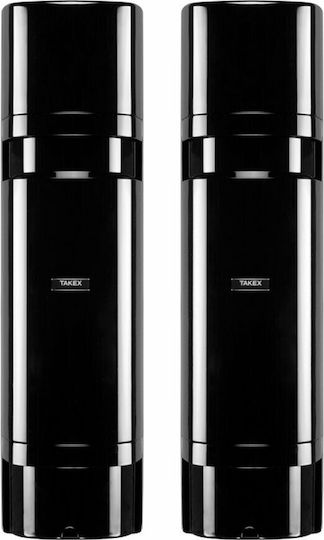

Takex Wired Four Beams Detector IP55 12-30V Scope 100m
Beam Sensors

Takex Wired Four Beams Detector IP55 12-30V Scope 100m

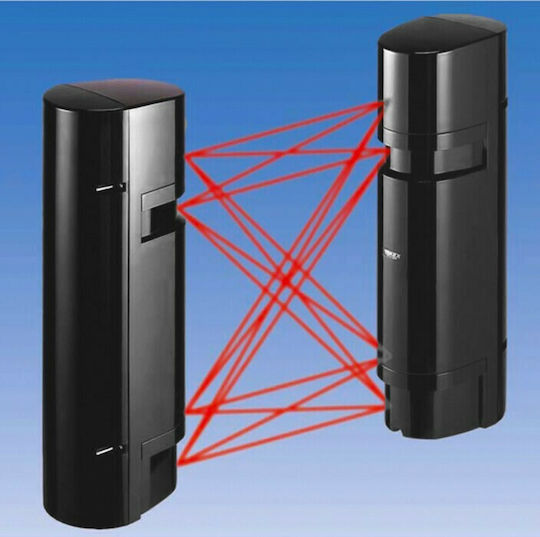

  • Detection System: Near infrared beam interruption system.
  • Infrared Beam: 4 high-power synchronized photoelectric sensors with double modulation pulsed beams.
  • Protection Distance: Up to 100 meters.
  • ...
  • Detection System: Near infrared beam interruption system.
  • Infrared Beam: 4 high-power synchronized photoelectric sensors with double modulation pulsed beams.
  • Protection Distance: Up to 100 meters.
  • Response Time: 50 msec.
  • Power Supply: 12V to 30V DC (polarity-free).
  • Current Consumption: 70mA in standby mode (maximum 105mA).
  • Alarm Output: Dry contact relay,...
See full description See full description

  • Login

    Wired

    It connects to the installation system with a cable and is powered through it.

  • Number of Beams

    The number of beams indicates the quantity of infrared rays connecting the transmitter to the receiver. More beams mean greater coverage height and fewer false alarms, as all beams must be interrupted simultaneously to trigger the system.

  • Range

    The range indicates the maximum distance (in meters) that the transmitter can be from the receiver in order to operate reliably.

  • Operating Voltage

    It refers to wired beam detectors and indicates how much voltage (in Volts) the detector needs to operate.

  • Protection Certification

    IP55

    Suitable for outdoor use. Provides limited protection against dust and withstands light rain or water splashes, ideal for verandas or under shelters.
  • See all
Review the product
Product report

Description

Description

  • Detection System: Near infrared beam interruption system.
  • Infrared Beam: 4 high-power synchronized photoelectric sensors with double modulation pulsed beams.
  • Protection Distance: Up to 100 meters.
  • Response Time: 50 msec.
  • Power Supply: 12V to 30V DC (polarity-free).
  • Current Consumption: ≤ 70mA in standby mode (maximum ≤ 105mA).
  • Alarm Output: Dry contact relay, selectable NO or NC.
  • Reset Time: Cut-off time + delay (approximately 1.5 sec).
  • Contact Capacity: 30V (AC/DC), 1A or less.
  • Environmental Output: Dry contact relay, selectable NO or NC.
  • Operation: Activates when environmental conditions (e.g., fog) worsen.
  • Contact Capacity: 30V (AC/DC), 0.5A or less.
  • Tamper Output: NC dry contact relay (activates when the cover is opened).
  • Frequency Options: 4 selectable frequency channels (to avoid interference).
  • Transmission Levels: 2 selectable transmission power levels for the photoelectric sensor.
  • GAIN Processing: Features automatic gain control lock (Auto-gain lock).
  • Waterproof level IP55.

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Connector
Wired

Connector

Wired
It connects to the installation system with a cable and is powered through it.
Scope
100 m

Scope

The range indicates the maximum distance (in meters) that the transmitter can be from the receiver in order to operate reliably.
Number of Beams
4 Bundles

Number of Beams

The number of beams indicates the quantity of infrared rays connecting the transmitter to the receiver. More beams mean greater coverage height and fewer false alarms, as all beams must be interrupted simultaneously to trigger the system.
Operating Voltage
12-30V

Operating Voltage

It refers to wired beam detectors and indicates how much voltage (in Volts) the detector needs to operate.
Protection Certification
IP55

Protection Certification

IP55

Suitable for outdoor use. Provides limited protection against dust and withstands light rain or water splashes, ideal for verandas or under shelters.

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Description & Specifications

  • Detection System: Near infrared beam interruption system.
  • Infrared Beam: 4 high-power synchronized photoelectric sensors with double modulation pulsed beams.
  • Protection Distance: Up to 100 meters.
  • Response Time: 50 msec.
  • Power Supply: 12V to 30V DC (polarity-free).
  • Current Consumption: ≤ 70mA in standby mode (maximum ≤ 105mA).
  • Alarm Output: Dry contact relay, selectable NO or NC.
  • Reset Time: Cut-off time + delay (approximately 1.5 sec).
  • Contact Capacity: 30V (AC/DC), 1A or less.
  • Environmental Output: Dry contact relay, selectable NO or NC.
  • Operation: Activates when environmental conditions (e.g., fog) worsen.
  • Contact Capacity: 30V (AC/DC), 0.5A or less.
  • Tamper Output: NC dry contact relay (activates when the cover is opened).
  • Frequency Options: 4 selectable frequency channels (to avoid interference).
  • Transmission Levels: 2 selectable transmission power levels for the photoelectric sensor.
  • GAIN Processing: Features automatic gain control lock (Auto-gain lock).
  • Waterproof level IP55.

Manufacturer

Manufacturer Details

Warnings & Safety Information
Connector
Wired

Connector

Wired
It connects to the installation system with a cable and is powered through it.
Scope
100 m

Scope

The range indicates the maximum distance (in meters) that the transmitter can be from the receiver in order to operate reliably.
Number of Beams
4 Bundles

Number of Beams

The number of beams indicates the quantity of infrared rays connecting the transmitter to the receiver. More beams mean greater coverage height and fewer false alarms, as all beams must be interrupted simultaneously to trigger the system.
Operating Voltage
12-30V

Operating Voltage

It refers to wired beam detectors and indicates how much voltage (in Volts) the detector needs to operate.
Protection Certification
IP55

Protection Certification

IP55

Suitable for outdoor use. Provides limited protection against dust and withstands light rain or water splashes, ideal for verandas or under shelters.

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
