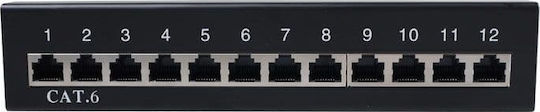

The Goobay 69307 patch panel organizes 12 RJ45 (8P8C) ports in a 1U format for rack or wall mounting. Its metal construction features shielded sockets and Cat 6 STP classification, with a maximum bandwidth of 250 MHz. The LSA-compatible terminals can be connected using KRONE-type IDC tools and follow the TIA 568 standard.

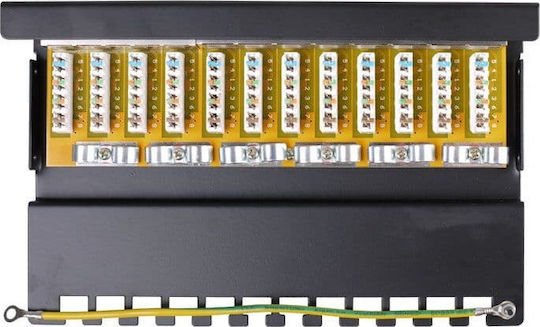

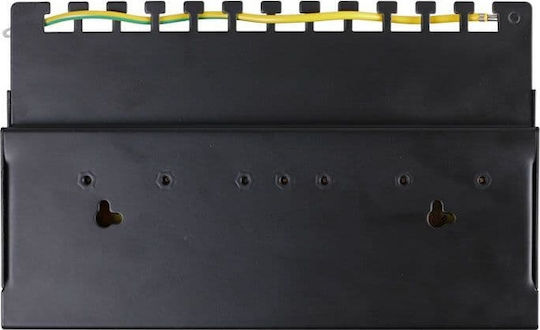

The rear features metal clamps for securing and grounding cables, as well as slots for cable ties. The panel comes with a pre-installed grounding wire and EIA/TIA 568A/B color coding. It is suitable for AWG22–24 cables.

• Type: Shielded STP patch panel
• Cable category: Cat 6
• Ports: 12 × RJ45 (8P8C)
• Rack format: 1U
• Mounting: Rack or wall
• Material: Metal
• Bandwidth: Up to 250 MHz
• Terminals: LSA-compatible, for KRONE-type IDC tools
• Terminal standard: TIA 568
• Color coding: EIA/TIA 568A/B
• Compatible cables: AWG22–24
• Grounding wire: Pre-installed
• Additional features: Metal clamps and slots for cable ties
• Voltage: 125 V~ AC RMS
• Current: 1.5 A
• Contact resistance: Up to 100 mOhm
• Insulation resistance: At least 1000 MOhm at 500 V DC
• Dielectric strength: 750 V~ AC RMS, 60 Hz
• Color: Black
• Dimensions: 212 × 109 × 44 mm
• Package contents: Wall mounting screws and cable ties
