The Legrand 10 A miniature circuit breaker provides thermal-magnetic protection and has a C trip curve. It is single-pole, rated for 230/400 V~, and has a breaking capacity of 6 kA in accordance with IEC 60898-1 and IEC 60947-2.

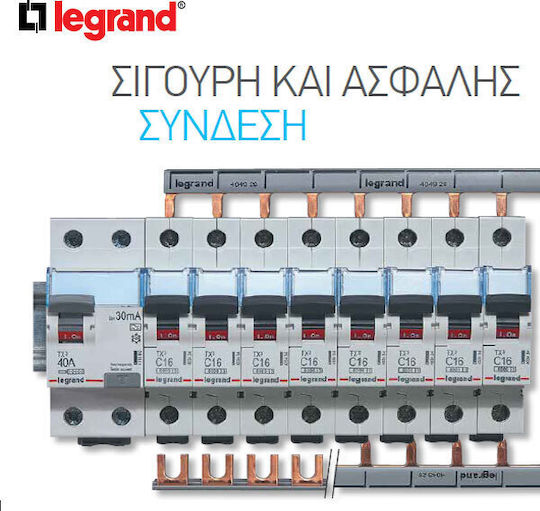

It can be busbar-connected using pin-type or fork-type busbars and fitted with TX3 / DX3 accessories, such as auxiliary contacts, shunt trip coils, interlocking accessories and remote-control motors. It is not compatible with residual current protection blocks.
- Number of poles: 1
- Rated current: 10 A
- Current type: AC
- Trip curve: C
- Rated voltage: 230/400 V~
- Breaking capacity: 6 kA
- Standards: IEC 60898-1, IEC 60947-2
- Size: 1 module, 17.5 mm
- Busbar connection: Compatible with pin-type or fork-type busbars
- Compatible accessories: TX3 / DX3 accessories, auxiliary contacts, shunt trip coils, interlocking accessories and remote-control motors
- Residual current protection block: Not compatible
Specifications
- Number of Poles
- 1
- Rated Current
- 10 A
- Operating Curve
- Curve C
Power Supply
- AC
- Yes
- DC
- No
